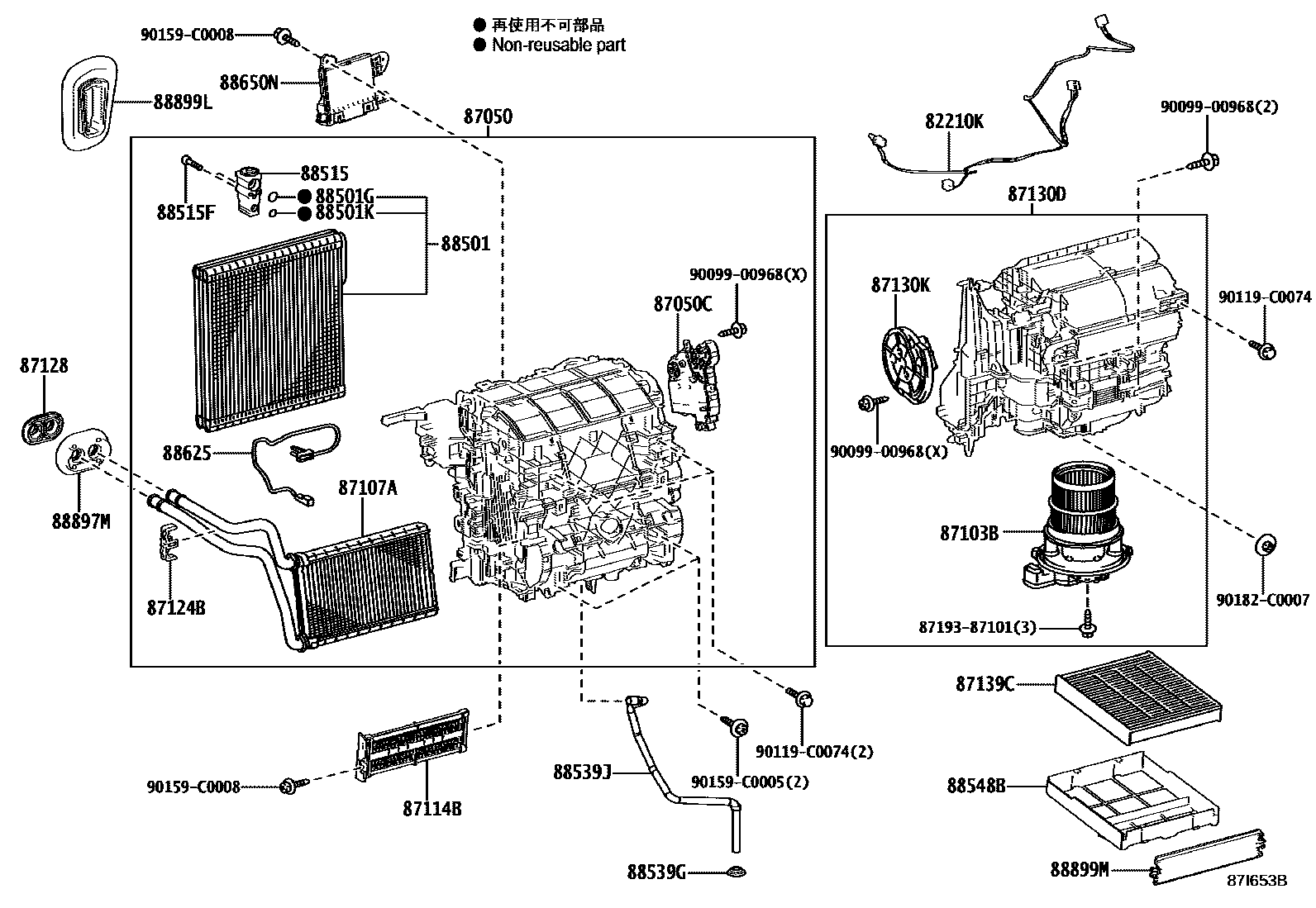

HEATING & AIR CONDITIONING - COOLER UNIT

82210KHARNESS ASSY, AIR CONDITIONER

main82212-F4050iKPX10202005

87050RADIATOR ASSY, AIR CONDITIONER

main87050-F4220iKPX10202005

87050CDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1

main87106-06370iKPX10202005

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-06130iKPX10202005

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-F4050iKPX10202005

87114BCOVER, HEATER

main87114-02180iKPX10202005

87124BCLAMP, HEATER

main87124-06110iKPX10202005

87128GROMMET, HEATER

main87128-28010iKPX10202005

87130DBLOWER ASSY

main87130-06420iKPX10202005

87130KDAMPER SERVO SUB-ASSY, BLOWER, NO.1

main87106-06390iKPX10202005

87139CFILTER, CLEAN AIR

main87139-02270iKPX10202110

STANDARD,OE PART

main87139-06150iKPX10202005-202109

STANDARD,OE PART

main87139-58010iKPX10202005

DEODORANT FILTER

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-F4140iKPX10202005

88501GO-RING, COOLER EVAPORATOR NO.1(SUCTION)

main90099-14121iKPX10202005

ID=13.4,OD=18.2

88501KO-RING, COOLER EVAPORATOR NO.1(LIQUID)

main90099-14120iKPX10202005

ID=10.8,OD=15.6

88515VALVE, COOLER EXPANSION

main88515-06150iKPX10202005

88515FBOLT(FOR COOLER EXPANSION VALVE)

main90099-04542×2iKPX10202005

88539GGROMMET (FOR COOLER UNIT DRAIN HOSE)

main90480-26030iKPX10202005

88539JHOSE, DRAIN COOLER

main88539-F4100iKPX10202005

88548BCASE, AIR FILTER

main88899-02490iKPX10202110

main88899-06160iKPX10202005-202110

88625THERMISTOR, COOLER, NO.1

main88620-06080iKPX10202005

88650NAMPLIFIER ASSY, AIR CONDITIONER

main88650-F4140iKPX10202005

88897MGROMMET (FOR HEATER PIPE)

main87128-F4070iKPX10202005

88899LPARTS, COOLING UNIT

main88899-F4340iKPX10202005

88899MPLATE, COVER(FOR AIR FILTER)

main88899-06110iKPX10202005

8719387101

main87193-87101

9009900968

main90099-00968

90119C0074

main90119-C0074

90159C0005

main90159-C0005

90159C0008

main90159-C0008

90182C0007

main90182-C0007

30 parts on this diagram · 1 diagram in section
