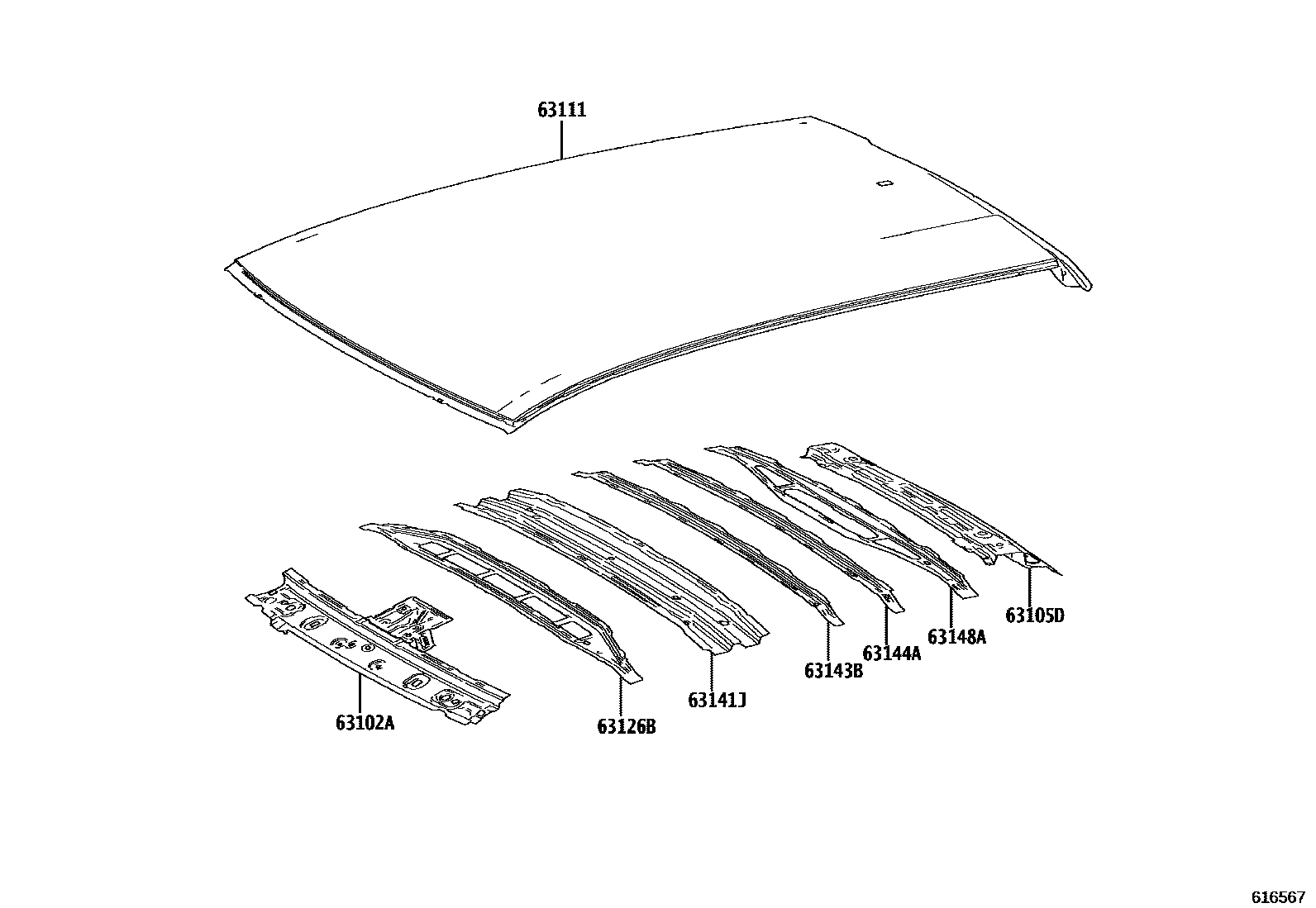

ROOF PANEL & BACK WINDOW GLASS

0001 1ROOF PANEL 0002 1ROOF PANEL(MOON ROOF) 0003 1MOON ROOF

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-F4040supersedes 63132-F4040iKPX10..D; KPX10..G,N202005

MOON ROOF-WITHOUT

63105DFRAME SUB-ASSY, BACK WINDOW, UPPER

main63105-F4040iKPX10202005

63111PANEL, ROOF

main63111-F4050supersedes 63111-F4060iKPX10..D; KPX10..G,N202005

MOON ROOF-WITHOUT

63126BREINFORCEMENT, ROOF PANEL, REAR NO.2

main63126-F4040iKPX10..D; KPX10..G,N202005

MOON ROOF-WITHOUT

63141JREINFORCEMENT, ROOF PANEL

main63141-F4040iKPX10..D; KPX10..G,N202005

MOON ROOF-WITHOUT

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-F4040iKPX10202005

63144AREINFORCEMENT, ROOF PANEL, NO.4

main63144-F4040iKPX10202005

63148AREINFORCEMENT, ROOF PANEL, NO.7

main63148-F4040iKPX10202005

8 parts on this diagram · 3 diagrams in section
