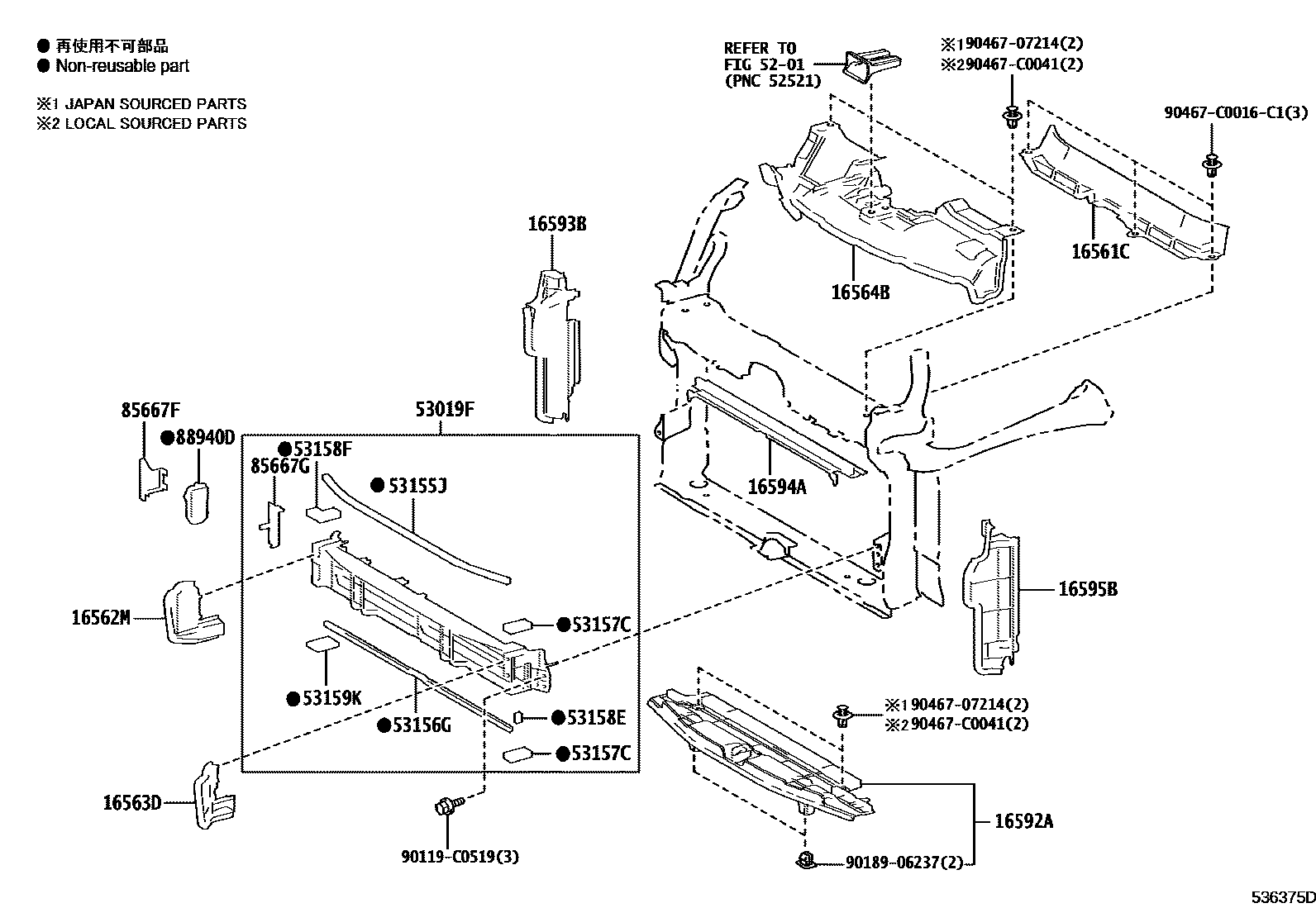

FRONT FENDER APRON & DASH PANEL

0001 1AIR GUIDE 0002 1FENDER APRON & RADIATOR SUPPO0003 1DASH PANEL

16561CSEAL, RADIATOR TO SUPPORT, NO.1

main16561-0Z020i4KM..KPX10202005

16562MSEAL, RADIATOR TO SUPPORT, NO.2

main16562-0Z030i4KM..KPX10202005

16563DSEAL, RADIATOR TO SUPPORT, NO.3

main16563-0Z030i4KM..KPX10202005

16564BSEAL, RADIATOR TO SUPPORT, NO.4

main16561-F2020i4KM..KPX10202005

16592AGUIDE, RADIATOR AIR, NO.3

main16592-F2030i4KM..KPX10202005

16593BGUIDE, RADIATOR AIR, NO.1 RH

main16593-0Z020i4KM..KPX10202005

16594AGUIDE, RADIATOR AIR, NO.2

main16594-0Z020i4KM..KPX10202005

16595BGUIDE, RADIATOR AIR, NO.1 LH

main16595-0Z020i4KM..KPX10202005

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

53019FSHUTTER SUB-ASSY, RADIATOR

main53019-F4010iKPX10202005

53155JSEAL, RADIATOR GRILLE, NO.1

main53155-F4050iKPX10202005

53156GSEAL, RADIATOR GRILLE, NO.2

main53156-F4050iKPX10202005

53157CSEAL, RADIATOR GRILLE, NO.3

main53157-F4010×2iKPX10202005

53158ESEAL, RADIATOR GRILLE, NO.4

main53158-F4010iKPX10202005

53158FSEAL, RADIATOR GRILLE, NO.4

main53158-F4020iKPX10202005

53159KSEAL, RADIATOR GRILLE, NO.5

main53159-F4010iKPX10202005

85667FCOVER, MOTOR

main85667-06030iKPX10202005

85667GCOVER, MOTOR

main85667-F4010iKPX10202005

88940DACTUATOR ASSY, SWING GRILLE

main88940-F4010iKPX10202005-202107

main88940-F4011iKPX10202108

90119C0519

main90119-C0519

9018906237

main90189-06237

9046707214

main90467-07214

90467C0016C1

main90467-C0016C1

90467C0041

main90467-C0041

24 parts on this diagram · 3 diagrams in section
