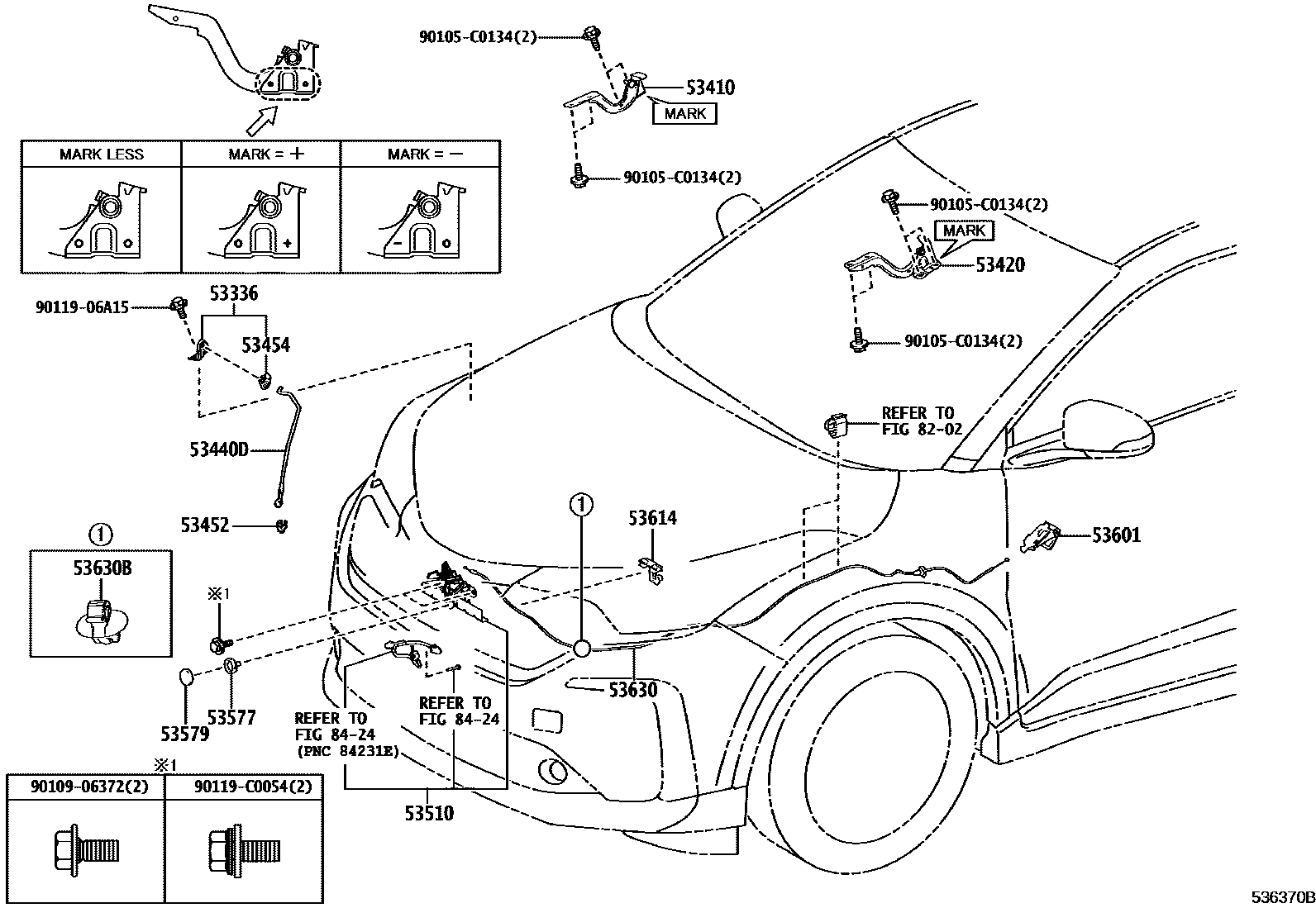

HOOD LOCK & HINGE

53336BRACKET, HOOD STAY, RH

main53336-F4030iKPX10202005

53410HINGE ASSY, HOOD, RH

main53410-F4100iKPX10202005

MARK LESS

main53410-F4110iKPX10202005

MARK = +

main53410-F4120iKPX10202005

MARK = -

53420HINGE ASSY, HOOD, LH

main53420-F4100iKPX10202005

MARK LESS

main53420-F4110iKPX10202005

MARK = +

main53420-F4120iKPX10202005

MARK = -

53440DSUPPORT ASSY, HOOD

main53440-F4030iKPX10202005

53452HOLDER, HOOD STAY

main53452-F4040iKPX10202005

53454CLIP, HOOD SUPPORT ROD

main53454-02040iKPX10202005

(L)

main53454-12030iKPX10202005

(J)

53510LOCK ASSY, HOOD

main53510-F4080iKPX10202005

53577BOLT, HOOD LOCK

main53577-33010iKPX10202005

53579CAP, HOOD LOCK NUT

main53579-0E020iKPX10202005

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-0D061-C1iKPX10..D,N; KPX10..G202005

BLACK,TRIM1#,2#; BLACK,TRIM2#

53614CLAMP, HOOD LOCK CONTROL CABLE

main53614-F4040iKPX10202005

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-F4051iKPX10202005

53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)

main90469-C0008iKPX10202005

8202WIRING & CLAMP

→ Go to FIG 82-02

8424ANTI-THEFT DEVICE

→ Go to FIG 84-24

90105C0134

main90105-C0134

9010906372

main90109-06372

9011906A15

main90119-06A15

90119C0054

main90119-C0054

19 parts on this diagram · 1 diagram in section
