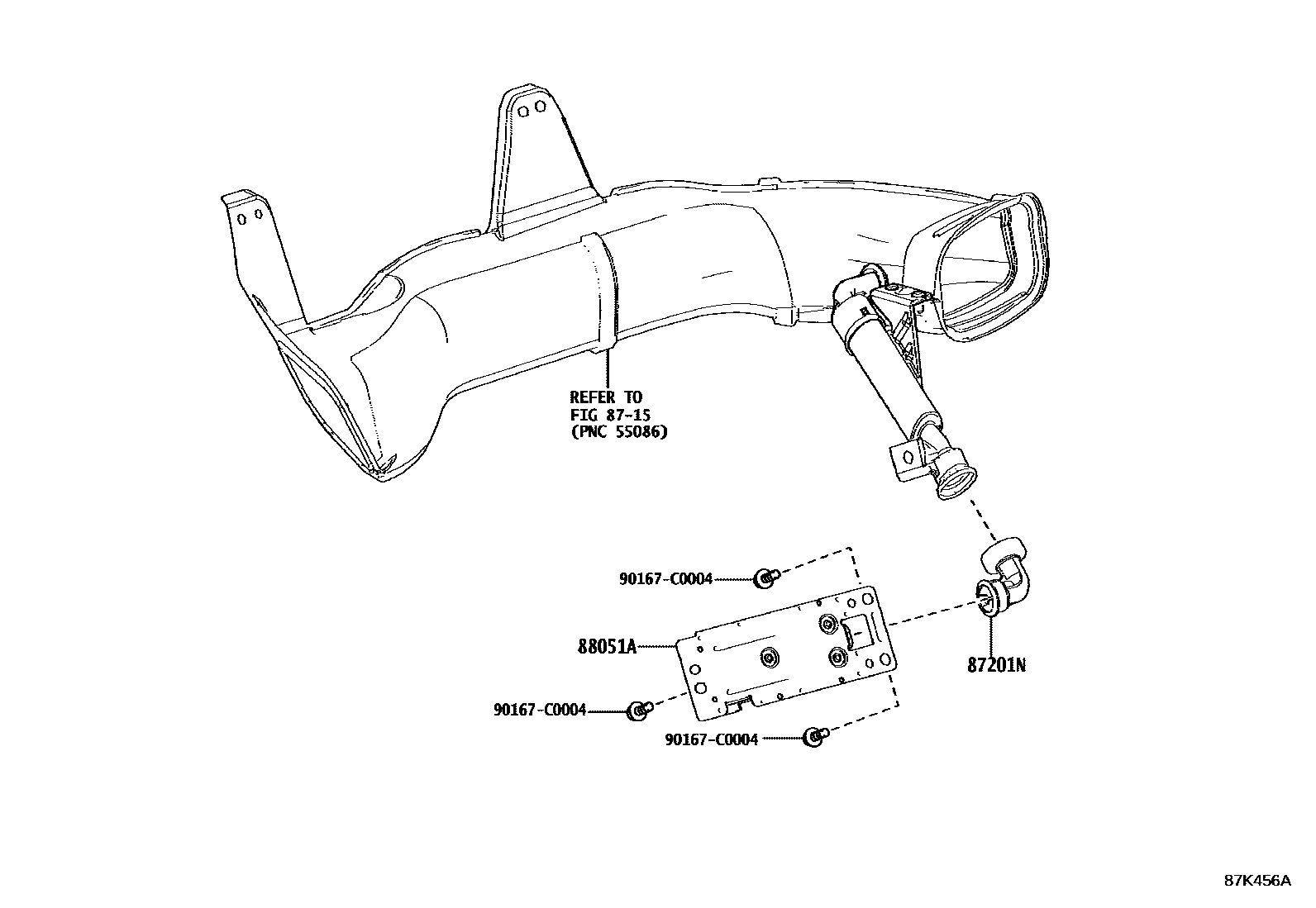

AIR PURIFIER OR ION GENERATOR

8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

→ Go to FIG 87-15

87201NDUCT SUB-ASSY, AIR

main87201-0E670iMXUA80..S202111-202408

88051AGENERATOR SUB-ASSY,ION

main88051-08020iMXUA80..S202111-202408

90167C0004

main90167-C0004

4 parts on this diagram · 1 diagram in section
