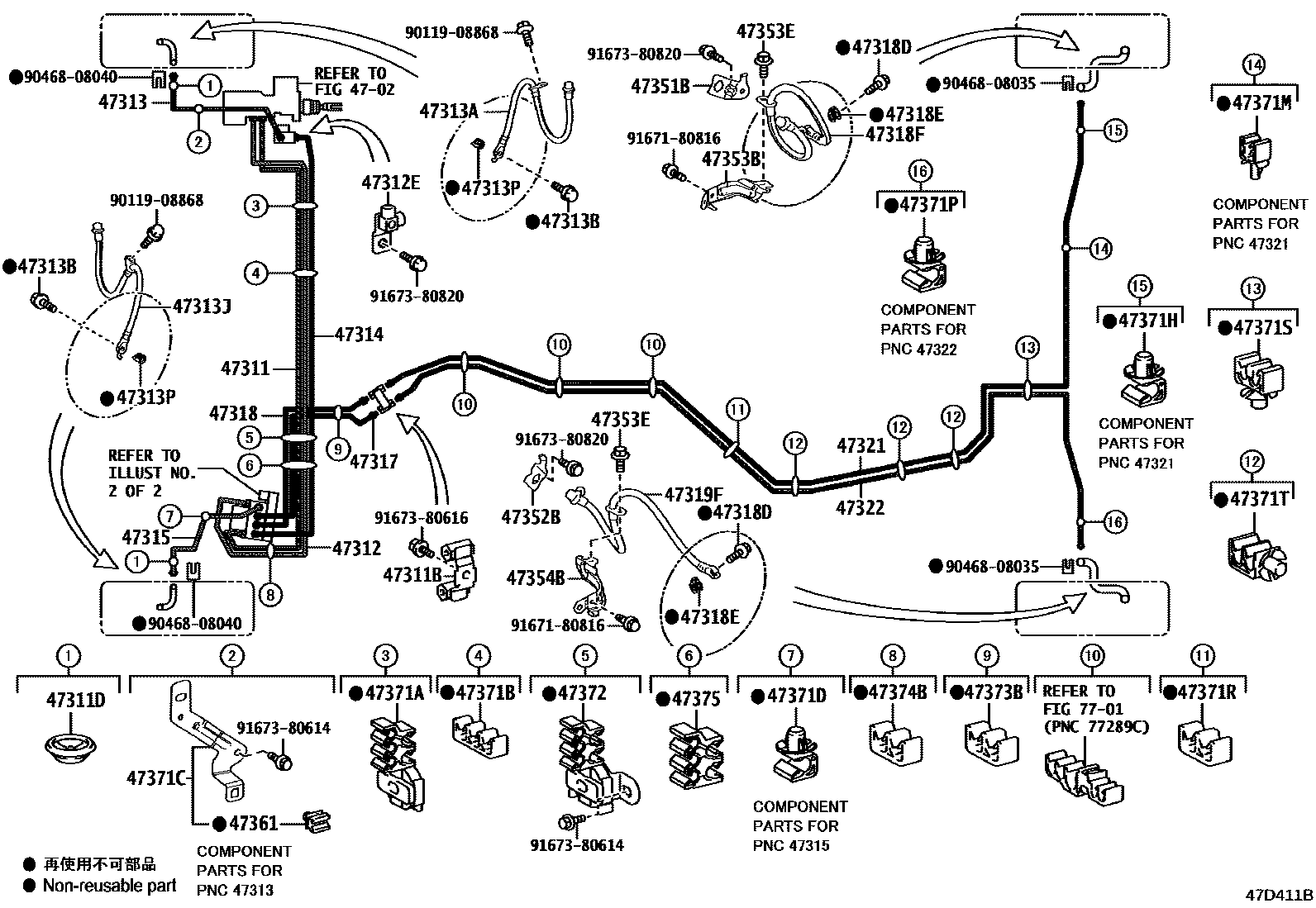

BRAKE TUBE & CLAMP

0001 1BRAKE TUBE 0002 1BRAKE TUBE 0003 1BRAKE TUBE 0004 1BRAKE TUBE 0005 1BRAKE TUBE 0006 1BRAKE TUBE 0007 1BRAKE TUBE 0008 1BRAKE TUBE 0009 1BRAKE TUBE 0010 1BRAKE ACTUATOR 0011 1BRAKE ACTUATOR 0012 1BRAKE ACTUATOR 0013 1BRAKE ACTUATOR

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

47311TUBE, FRONT BRAKE, NO.1

main47311-78050iAAZA2#,MAZA20,TAZA25..LHD..(CHI,EUR,GEN)202111-202403

main47311-78060iAAZA2#..RHD202403-202506

main47311-78070iAAZH20,25..RHD202111-202403

main47311-78110iAAZH2#..LHD..(CHI,EUR,GEN)202111-202403

main47311-78120iAAZH26..RHD202403

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10285iAAZH2#202403

main90412-10314iTAZA25..GCC202111-202405

47311DGROMMET(FOR FRONT BRAKE TUBE)

main90480-25037×2iAAZA2#,AAZH2#,MAZA20,TAZA25..CHI,EUR,GEN202111-202403

47312TUBE, FRONT BRAKE, NO.2

main47312-78030iAAZA2#..LHD202403-202506

main47312-78040iTAZA25..RHD202403

main47312-78050iAAZH20,25..RHD202111-202403

main47312-78090iAAZH2#..LHD202403

main47312-78100iAAZH26..RHD202111-202403

47312EWAY, NO.2(FOR FRONT BRAKE TUBE)

main90412-10272iMAZA20,TAZA25..LHD202403

main90412-10306iAAZA2#..RHD202403-202506

47313TUBE, FRONT BRAKE, NO.3

main47313-78040iTAZA25..LHD..(EUR,GEN)202111-202403

main47313-78050iMAZA20202403

main47313-78060iTAZA25..RHD202111-202403

main47313-78070iAAZA2#..RHD202403-202506

main47313-78080iAAZH20,25..RHD202111-202302

main47313-78081iAAZH20,25..RHD202303-202403

main47313-78090iAAZH20,25..LHD..(CHI,EUR,GEN)202111-202403

main47313-78100iAAZH21,26..LHD202111-202403

main47313-78110iAAZH26..RHD202111-202302

main47313-78111iAAZH26..RHD202303-202403

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02J12iAAZA2#202403-202506

main90947-02J10iAAZH26..RHD;AAZH26..LHD..EUR;AAZH25,TAZA25..EUR,GEN202403

OVERTRAIL PACKAGE

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10058×2iAAZA2#,AAZH2#,MAZA20,TAZA25..CHI,EUR,GEN202111-202403

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

main90947-02J15iAAZH2#,MAZA20,TAZA25202403

main90947-02J11iAAZH26..RHD;AAZH26..LHD..EUR;AAZH25,TAZA25..EUR,GEN202403

OVERTRAIL PACKAGE

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50021×2iAAZA2#202403-202506

47314TUBE, FRONT BRAKE, NO.4

main47314-78030iMAZA20,TAZA25..LHD202403

main47314-78090iAAZA2#..RHD202403-202506

47315TUBE, FRONT BRAKE, NO.5

main47315-78010iAAZA2#..RHD202403-202506

main47315-78040iTAZA25..GCC202111-202405

main47315-78060iAAZH2#..LHD202403

main47315-78070iAAZH20,25,26..RHD202403

47317TUBE, FRONT BRAKE, NO.7

main47317-78050iTAZA25..GCC202111-202405

main47317-78060iTAZA25..RHD202403

main47317-78070iAAZH20,25,26..RHD202403

main47317-78110iAAZH2#..LHD202403

47318TUBE, FRONT BRAKE, NO.8

main47318-78050iMAZA20,TAZA25..LHD202403

main47318-78060iAAZA2#,TAZA25..RHD202111-202403

main47318-78070iAAZH20,25,26..RHD202111-202403

main47318-78110iAAZH25..GCC202111-202405

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10058×2iAAZH25,TAZA25..GCC202111-202405

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main47389-50021×2iAAZA2#,AAZH2#,MAZA20,TAZA25..CHI,EUR,GEN202111-202403

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-02J43iAAZA2#,AAZH2#,MAZA20,TAZA25..CHI,EUR,GEN202111-202403

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-02J44iAAZA2#,AAZH2#,MAZA20,TAZA25..CHI,EUR,GEN202111-202403

47321TUBE, REAR BRAKE, NO.1

main47321-42210iAAZH20,25,MAZA20,TAZA25202403

main47321-42220iAAZH21,26202111-202403

47322TUBE, REAR BRAKE, NO.2

main47322-42190iAAZH20,25,MAZA20,TAZA25202403

main47322-42200iAAZH21,26202111-202403

47351BBRACKET, FLEXIBLE HOSE, NO.1

main47351-47030iAAZH2#,MAZA20,TAZA25202403

47352BBRACKET, FLEXIBLE HOSE, NO.2

main47352-47030iAAZH25,TAZA25..GCC202111-202405

47353BBRACKET, FLEXIBLE HOSE, NO.3

main47351-10110iAAZH25,TAZA25..GCC202111-202405

47353EBOLT(FOR FLEXIBLE HOSE BRACKET)

main90119-08868×2iAAZH25,TAZA25..GCC202111-202405

47354BBRACKET, FLEXIBLE HOSE, NO.4

main47352-10060iAAZH2#,MAZA20,TAZA25202403

47361CLAMP, TUBE

main90949-01D56×2iAAZA2#..LHD; AAZA2#..RHD202403-202506

47371ACLAMP, BRAKE TUBE, NO.1

main47371-48180×2iTAZA25..RHD202403

main47371-48190iTAZA25..GCC202111-202405

main47371-62020iAAZH25..GCC202111-202405

47371BCLAMP, BRAKE TUBE, NO.6

main47371-42140iAAZH25,TAZA25..GCC202111-202405

main90949-01E43iAAZA2#..RHD202403-202506

47371CCLAMP, BRAKE TUBE, NO.7

main47371-42130iAAZA2#,AAZH20,25..RHD202111-202403

main90949-01D17iAAZH26..RHD202111-202403

main90949-01D56iTAZA25..RHD202111-202403

47371DCLAMP, BRAKE TUBE, NO.8

main90949-01D17iAAZA2#,AAZH20,25,26,TAZA25..RHD202111-202403

47371HCLAMP, BRAKE TUBE, NO.12

main90949-01C82iAAZH21,26202111-202403

main90949-01D17iAAZH20,25,MAZA20,TAZA25202403

47371MCLAMP, BRAKE TUBE, NO.13

main90949-01D17iAAZH21,26202403

main90949-01E01iAAZH25,TAZA25..GCC202111-202405

47371PCLAMP, BRAKE TUBE, NO.14

main90949-01D17iAAZH20,25,MAZA20,TAZA25202403

main90949-01E01iAAZH21,26202403

47371RCLAMP, BRAKE TUBE, NO.16

main90464-00903iAAZA2#,AAZH20,25,MAZA20,TAZA25..CHI,EUR,GEN202111-202403

47371SCLAMP, BRAKE TUBE, NO.17

main90949-01D12iAAZA2#,AAZH20,25,MAZA20,TAZA25..CHI,EUR,GEN202111-202403

47371TCLAMP, BRAKE TUBE, NO.18

main90949-01D13×3iAAZA2#,MAZA20,TAZA25..EUR,GEN; AAZA20..CHI;AAZH20,25..CHI,EUR,GEN202111-202403

47372CLAMP, BRAKE TUBE, NO.2

main47371-78010iAAZH25..GCC202111-202405

main47372-48030iMAZA20,TAZA25202403

47373BCLAMP, BRAKE TUBE, NO.3

main90464-00903iAAZH2#,MAZA20,TAZA25202403

47374BCLAMP, BRAKE TUBE, NO.4

main90949-01E23iAAZA2#..RHD202403-202506

main90949-01E40×2iAAZA2#,AAZH2#,MAZA20,TAZA25..LHD..(CHI,EUR,GEN)202111-202403

47375CLAMP, BRAKE TUBE, NO.5

main47371-42130iAAZH25..GCC202111-202405

main90949-01D17iAAZH21,26..LHD202111-202403

main90949-01E40iAAZH20,25,26,TAZA25..RHD202403
