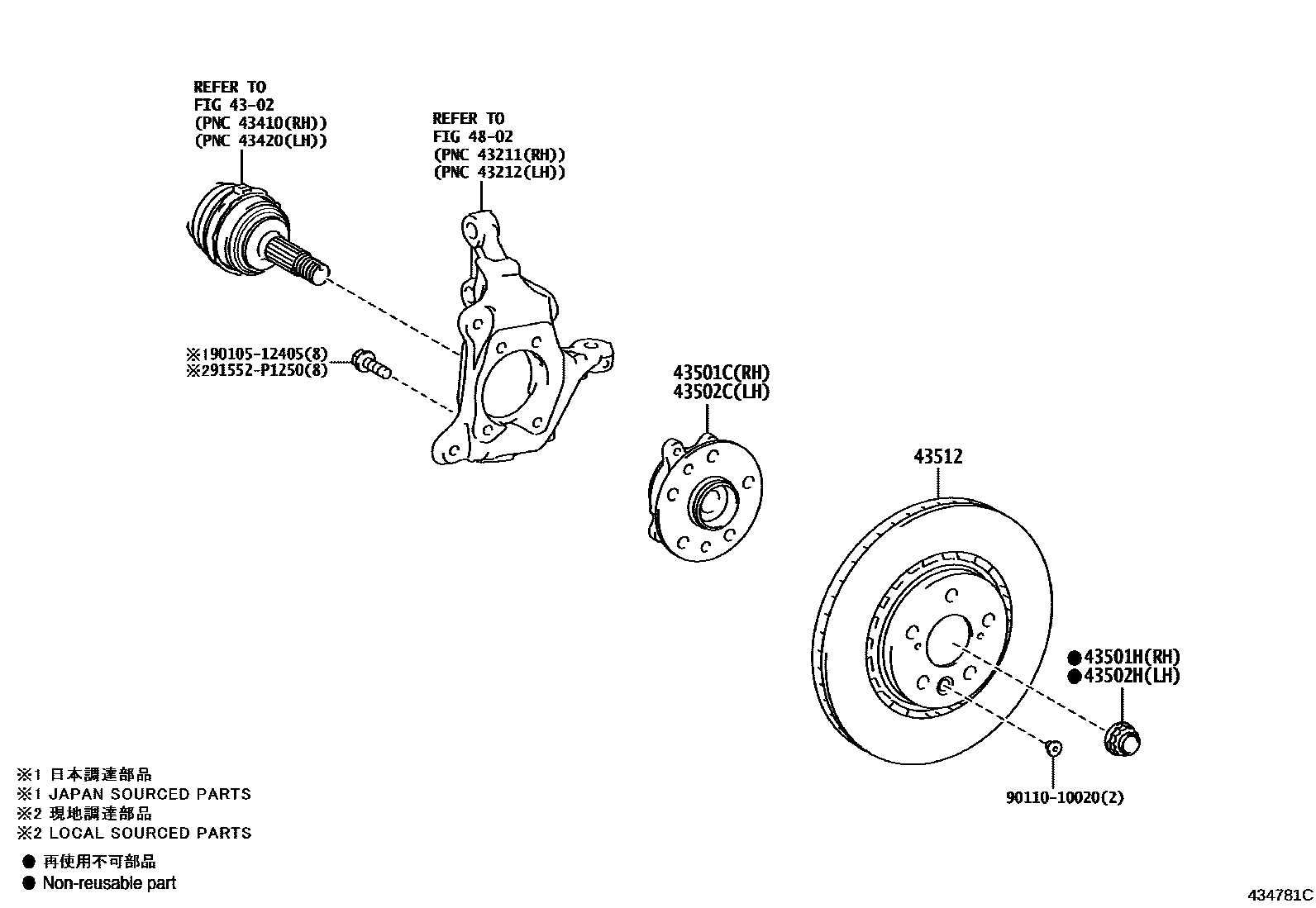

FRONT AXLE HUB

Parts diagram

4302FRONT DRIVE SHAFT

→ Go to FIG 43-02

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43550-78010i202403-202506

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001i202403-202506

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43550-78010i202403-202506

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001i202403-202506

43512DISC, FRONT

main43512-78010×2i202403

AZB,GRZ SPEC; CHILE SPEC; INDIA SPEC; MOLDOVA SPEC; TAIWAN SPEC; UKRAINE SPEC; VIETNAM SPEC

main43512-78020×2i202111-202403

TAIWAN SPEC

main43512-78030×2i202403

4802FRONT AXLE ARM & STEERING KNUCKLE

→ Go to FIG 48-02

9010512405

main90105-12405

9011010020

main90110-10020

91552P1250

main91552-P1250

10 parts on this diagram · 1 diagram in section
