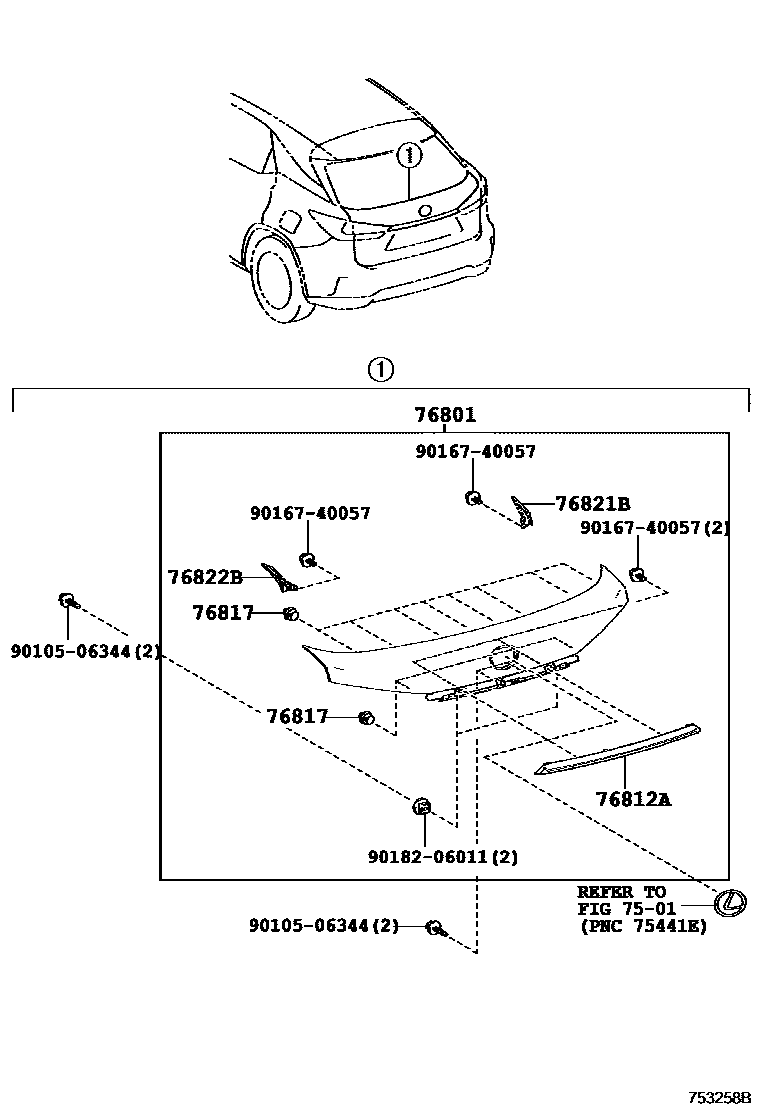

REAR MOULDING

7501EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 75-01

76801GARNISH SUB-ASSY, BACK DOOR, OUTSIDE

main76801-48440-A0iAGL25;AGL20,GGL2#,GYL25..GCC,GEN201509-201908

WHITE NOVA GF.,083

main76801-48440-A1iAGL2#,GGL2#,GYL25201908

PLATED,SONIC QUARTZ,085

main76801-48440-B2iAGL2#,GGL2#,GYL25201908

PLATED,SONIC TITANIUM,1J7

main76801-48440-B3iAGL2#,GGL2#,GYL25201509-201908

PLATINUM SILVER ME.,1J4

main76801-48440-B4iAGL2#,GGL2#,GYL25202107

PLATED,SONIC CHROME,1L1

main76801-48440-B5iAGL2#,GGL2#,GYL25202107

PLATED,SONIC IRIDIUM,1L2

main76801-48440-C0iAGL2#,GGL2#,GYL25201908

PLATED,BLACK,212

main76801-48440-C1iAGL2#,GGL2#,GYL25201908

PLATED,GRAPHITE BLACK GF.,223

main76801-48440-D0iAGL2#,GGL2#,GYL25201908

PLATED,RED MC.CS.,3R1

main76801-48440-E0iAGL2#,GGL2#,GYL25201509-201908

SLEEK ECRU ME.,4U7

main76801-48440-E1iAGL2#,GGL2#,GYL25201908-202107

PLATED,AMBER CS.,4X2

main76801-48440-E2iAGL2#,GGL2#,GYL25201908

PLATED,ICE ECRU M.M.,4X8

main76801-48440-G0iAGL2#,GGL2#,GYL25201908

PLATED,TERRANE KHAKI M.M.,6X4

main76801-48440-J0iAGL2#,GGL2#,GYL25201509-201908

DEEP BLUE MC.,8X5

main76801-48440-J1iAGL25;AGL20,GGL2#,GYL25..GCC,GEN201608-201908

HEAT BLUE CONTRAST LAYERI,8X1

main76801-48430-A0iAGL25;AGL20,GGL2#,GYL25..GCC,GEN201908

PLATED,"F-SPORT"*(F),WHITE NOVA GF.,083

main76801-48430-B1iAGL25;AGL20,GGL2#,GYL25..GCC,GEN201908

PLATED,"F-SPORT"*(F),SONIC TITANIUM,1J7

main76801-48430-B2iAGL25;AGL20,GGL2#,GYL25..GCC,GEN202107

PLATED,"F-SPORT"*(F),SONIC CHROME,1L1

main76801-48430-B3iAGL25;AGL20,GGL2#,GYL25..GCC,GEN202107

PLATED,"F-SPORT"*(F),SONIC IRIDIUM,1L2

main76801-48430-C0iAGL25;AGL20,GGL2#,GYL25..GCC,GEN201908

PLATED,"F-SPORT"*(F),BLACK,212

main76801-48430-C1iAGL25;AGL20,GGL2#,GYL25..GCC,GEN201908

PLATED,"F-SPORT"*(F),GRAPHITE BLACK GF.,223

main76801-48430-D0iAGL25;AGL20,GGL2#,GYL25..GCC,GEN201908

PLATED,"F-SPORT"*(F),RED MC.CS.,3R1

main76801-48430-J0iAGL25;AGL20,GGL2#,GYL25..GCC,GEN201908

PLATED,"F-SPORT"*(F),HEAT BLUE CONTRAST LAYERI,8X1

main76801-48430-J1iAGL25;AGL20,GGL2#,GYL25..GCC,GEN201908

PLATED,"F-SPORT"*(F),DEEP BLUE MC.,8X5

76812AGARNISH, BACK DOOR, OUTSIDE NO.2

main76812-48110iAGL2#,GGL2#,GYL25201509-201908

main76812-48150iAGL25;AGL20,GGL2#,GYL25..GCC,GEN201908

"F-SPORT"*(F)

76817CLIP, BACK DOOR OUTSIDE GARNISH

main90467-09206×10iAGL2#,GGL2#,GYL25201509-201908

76821BPROTECTOR, BACK DOOR GARNISH SIDE, RH

main76821-48040iAGL2#,GGL2#,GYL25201509-201908

76822BPROTECTOR, BACK DOOR GARNISH SIDE, LH

main76822-48040iAGL2#,GGL2#,GYL25201509-201908

9010506344

main90105-06344

9016740057

main90167-40057

9018206011

main90182-06011

9 parts on this diagram · 1 diagram in section
