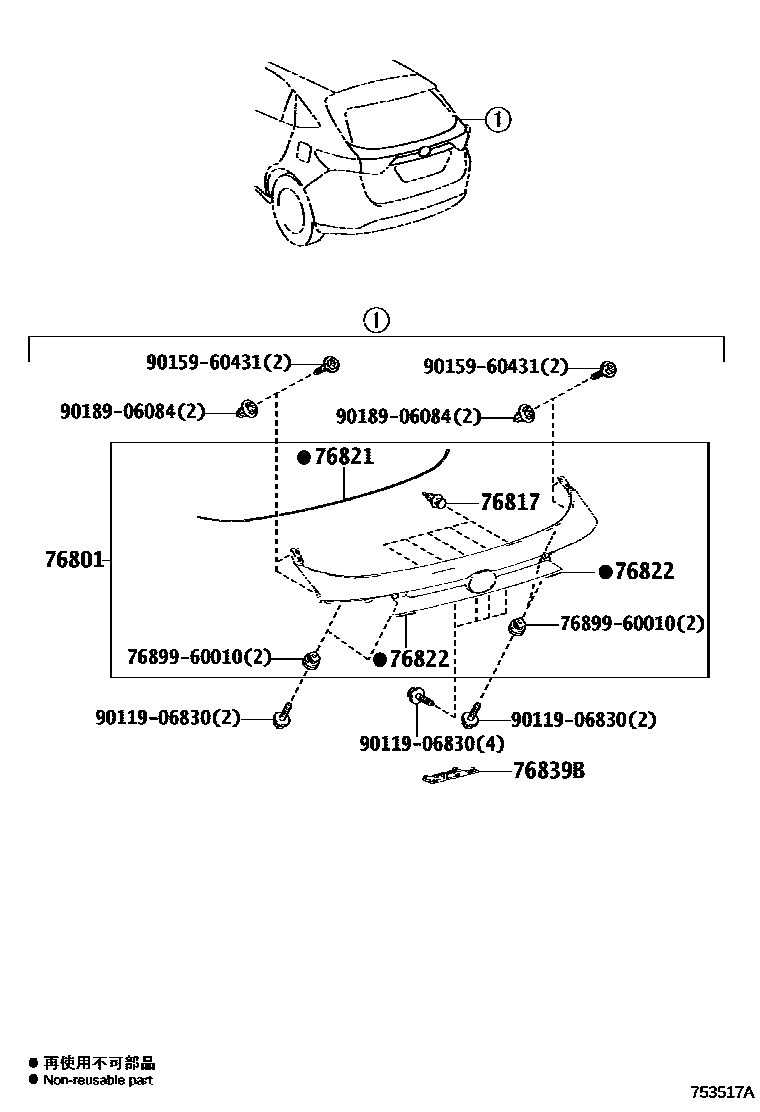

REAR MOULDING
76801GARNISH SUB-ASSY, BACK DOOR, OUTSIDE
WHITE PEARL CS.,070
SILVER ME.,1F7
BLACK,202
SPARKLING BLACK PEARL CS.,220
DK. RED M.M.,3Q3
DK.BLUE M.M.,8W7
76817CLIP, BACK DOOR OUTSIDE GARNISH
76821PROTECTOR, BACK DOOR GARNISH MOULDING, UPPER
76822PROTECTOR, BACK DOOR GARNISH MOULDING, LOWER
76839BCOVER, BACK DOOR GARNISH
WHITE PEARL CS.,070
SILVER ME.,1F7
BLACK,202
SPARKLING BLACK PEARL CS.,220
DK. RED M.M.,3Q3
DK.BLUE M.M.,8W7
7689960010PROTECTOR, REAR SPOILER, SIDE NO.6
main76899-60010
9011906830
main90119-06830
9015960431
main90159-60431
9018906084
main90189-06084
9 parts on this diagram · 1 diagram in section
