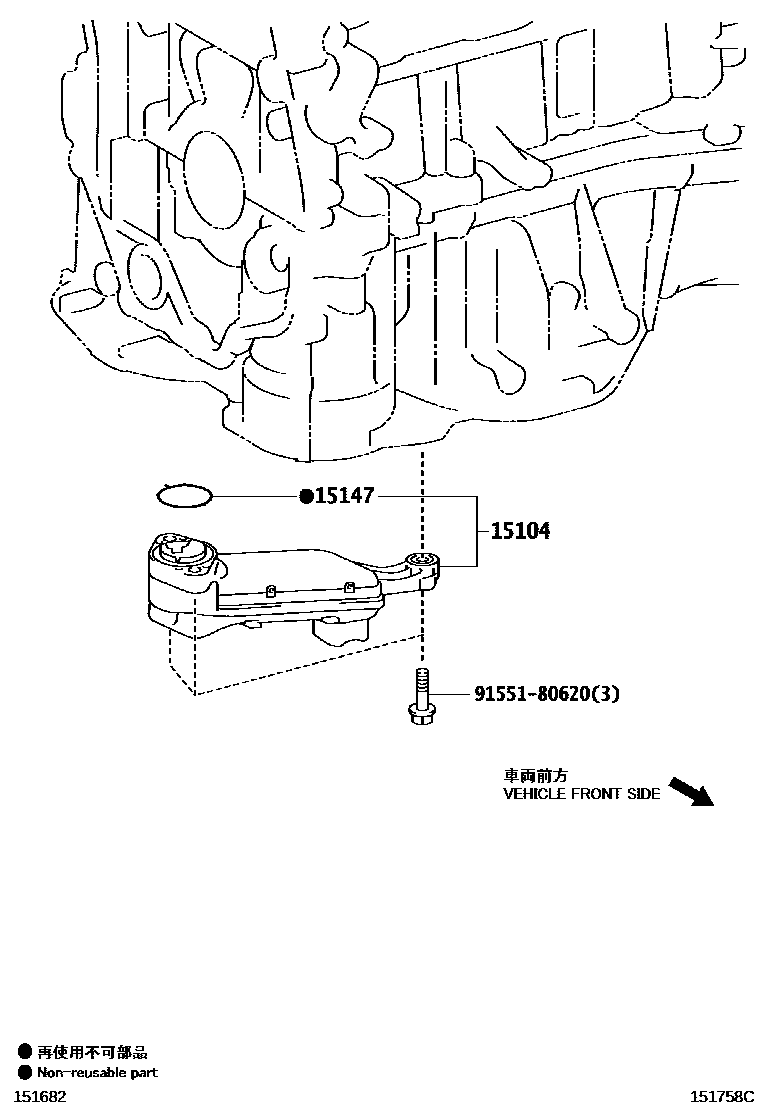

ENGINE OIL PUMP

0001 1 0002 1 0003 1

15104STRAINER SUB-ASSY, OIL

main15104-31120i2GR#..GGL15,GYL1#201203-201504

main15104-31190i2GR#..GGL15,GYL1#201504

main15104-36020i1ARFE..AGL10201008-201203

15147GASKET, OIL STRAINER

main15147-31060i2GR#..GGL15,GYL1#201203

main15147-36010i1ARFE..AGL10201008-201203

9155180620

main91551-80620

3 parts on this diagram · 3 diagrams in section
