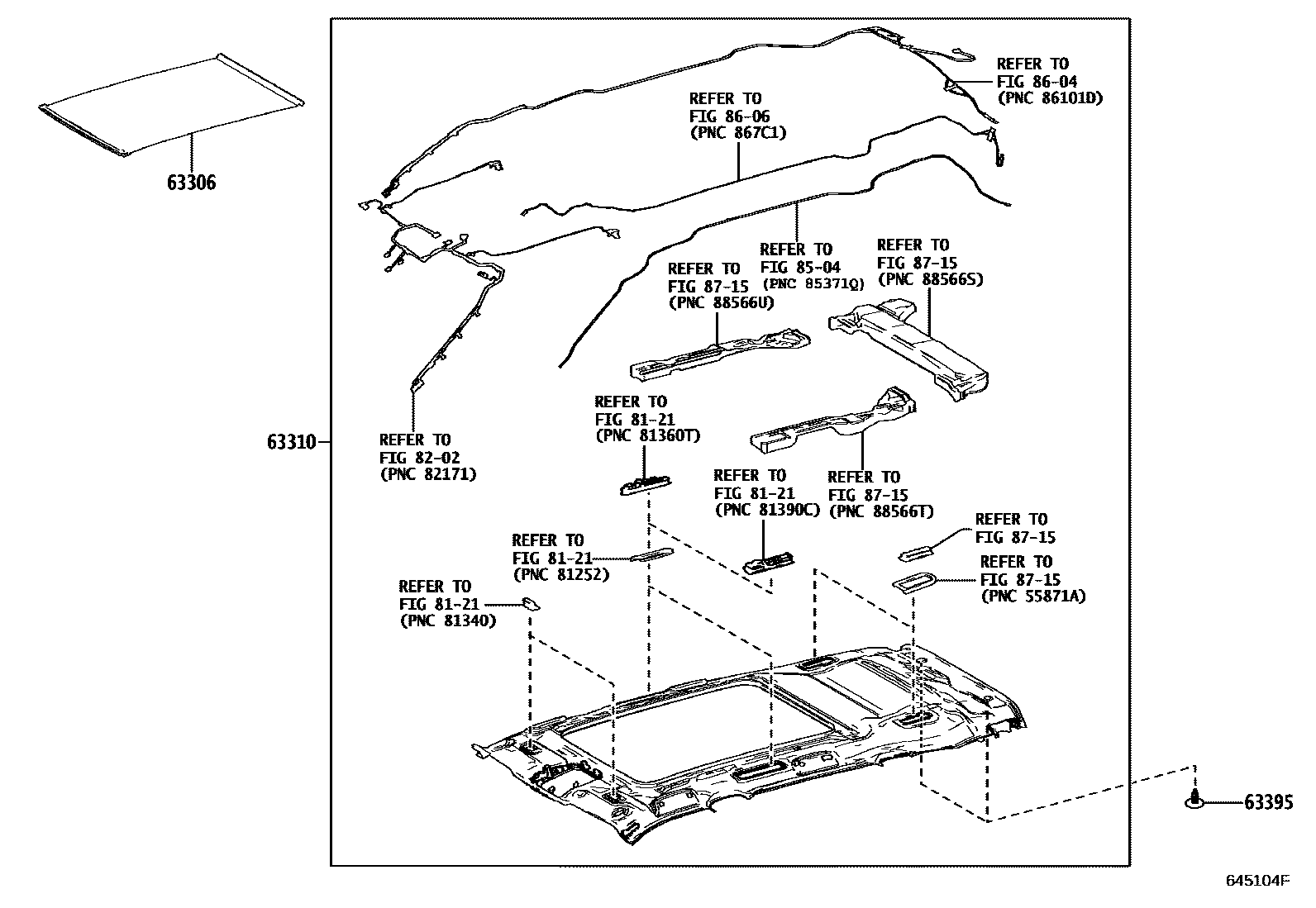

ROOF HEADLINING & SILENCER PAD

0001 1PANORAMA ROOF 0002 1NORMAL ROOF

63306TRIM SUB-ASSY, SUNSHADE

main63306-0E140-B1iSXUA75;AXUH7#..G,M202108-202212

LT.GRAY,TRIM2#,4#

main63306-0E240-B0iAXUH79..N; SXUA75;AXUH7#..G,M202301-202405

BASE+ PACKAGE,LT.GRAY,TRIM2#; LT.GRAY,TRIM2#,4#

63310HEADLINING ASSY, ROOF

main633C0-0E400-B0iAXUH79..N; SXUA75..N202209-202405

BASE+ PACKAGE,LT.GRAY,TRIM2#; LT.GRAY,TRIM2#,4#

main633C0-0ER00-B0supersedes 63300-0EX70-B1iAXUH79,SXUA75..G202209-202405

ETC-WITH,LT.GRAY,TRIM2#,4#

main633C0-0ER10-B0supersedes 633C0-0EU20-B0iAXUH7#..N202209-202405

ETC-WITH,LT.GRAY,TRIM2#

main633C0-0ER20-B0supersedes 63300-0EY00-B1iAXUH7#,SXUA75..M202209-202405

ETC-WITH,LT.GRAY,TRIM2#,4#

main633C0-0ER30-B0supersedes 633C0-0EU50-B0iAXUH79..N; SXUA75..N202209-202405

BASE+ PACKAGE&ETC-WITH,LT.GRAY,TRIM2#; ETC-WITH,LT.GRAY,TRIM2#,4#

main633C0-0EU50-B0supersedes 633C0-0EU20-B0iAXUH7#..N; SXUA75..N202405-202509

BASE+ PACKAGE,LT.GRAY,TRIM2#; LT.GRAY,TRIM2#,4#

main633C0-0EU60-B0supersedes 633C0-0EU30-B0iAXUH79,SXUA75..G202405-202509

ETC-WITH,LT.GRAY,TRIM0#,2#,4#

main633C0-0EU70-B0supersedes 633C0-0EU20-B0iAXUH7#..N202405-202509

ETC-WITH,LT.GRAY,TRIM2#

main633C0-0EU80-B0supersedes 633C0-0EU40-B0iAXUH7#,SXUA75..M202405-202509

ETC-WITH,LT.GRAY,TRIM0#,2#,4#

main633C0-0EU90-B0supersedes 633C0-0EU20-B0iAXUH7#..N; SXUA75..N202405-202509

BASE+ PACKAGE&ETC-WITH,LT.GRAY,TRIM2#; ETC-WITH,LT.GRAY,TRIM2#,4#

63395CLIP, ROOF HEADLINING TRIM

main63395-0E010-B1×2iAXUH7#..N; SXUA75;AXUH7#..G,M202108-202405

LT.GRAY,TRIM2#; LT.GRAY,TRIM2#,4#

8121INTERIOR LAMP

→ Go to FIG 81-21

8202WIRING & CLAMP

→ Go to FIG 82-02

8504REAR WASHER

→ Go to FIG 85-04

8604ANTENNA

→ Go to FIG 86-04

8606CAMERA & REAR MONITOR DISPLAY

→ Go to FIG 86-06

8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

→ Go to FIG 87-15

9 parts on this diagram · 2 diagrams in section
