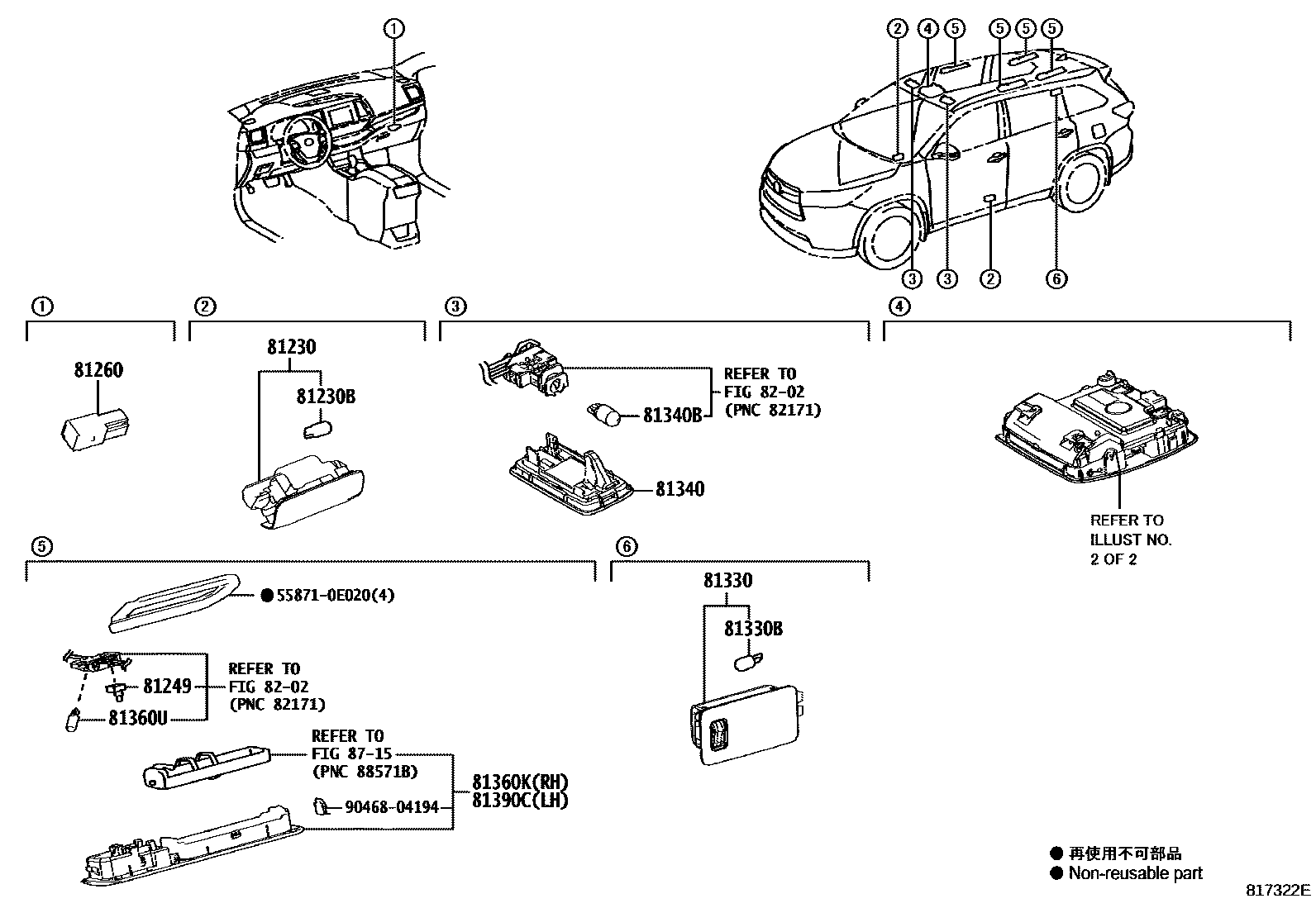

INTERIOR LAMP

0001 1 0002 1

81230LAMP ASSY, COURTESY

main81230-30200×2iGSU55201503-201710

81230BBULB(FOR COURTESY LAMP)

main90981-12010×2iASU5#201503-201803

12V 5W

81249SWITCH, ROOM LAMP

main84532-58010×4iGSU55201503-201710

81260LAMP ASSY, GLOVE BOX

main81080-0N020iGSU55201503-201710

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

main81330-58010iGSU55201503-201710

81330BBULB, LUGGAGE COMPARTMENT LAMP

main99132-12050iGSU55201503-201710

12V 5W

81340LAMP ASSY, VANITY

main81340-0F010×2iASU5#201803

81340BBULB (FOR VANITY LAMP)

main90981-11062×2iASU5#201503-201803

12V 8W

81360KLAMP ASSY, SPOT, RH

main81360-0E030-A0×2iASU5#,GSU55201503-201803

FLAXEN,TRIM0#

main81360-0E030-B0×2iASU55;ASU50..SPO201803

GRAY,TRIM2#

81360UBULB, SPOT LAMP

main90981-11062×4iASU5#201503-201803

81390CLAMP ASSY, SPOT, LH

main81390-0E020-A0×2iASU5#201803

FLAXEN,TRIM0#

main81390-0E020-B0×2iASU55;ASU50..SPO201803

GRAY,TRIM2#

8202WIRING & CLAMP

→ Go to FIG 82-02

8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

→ Go to FIG 87-15

558710E020PANEL, COWL VENTILATOR AIR DUCT

main55871-0E020

9046804194

main90468-04194

15 parts on this diagram · 2 diagrams in section
