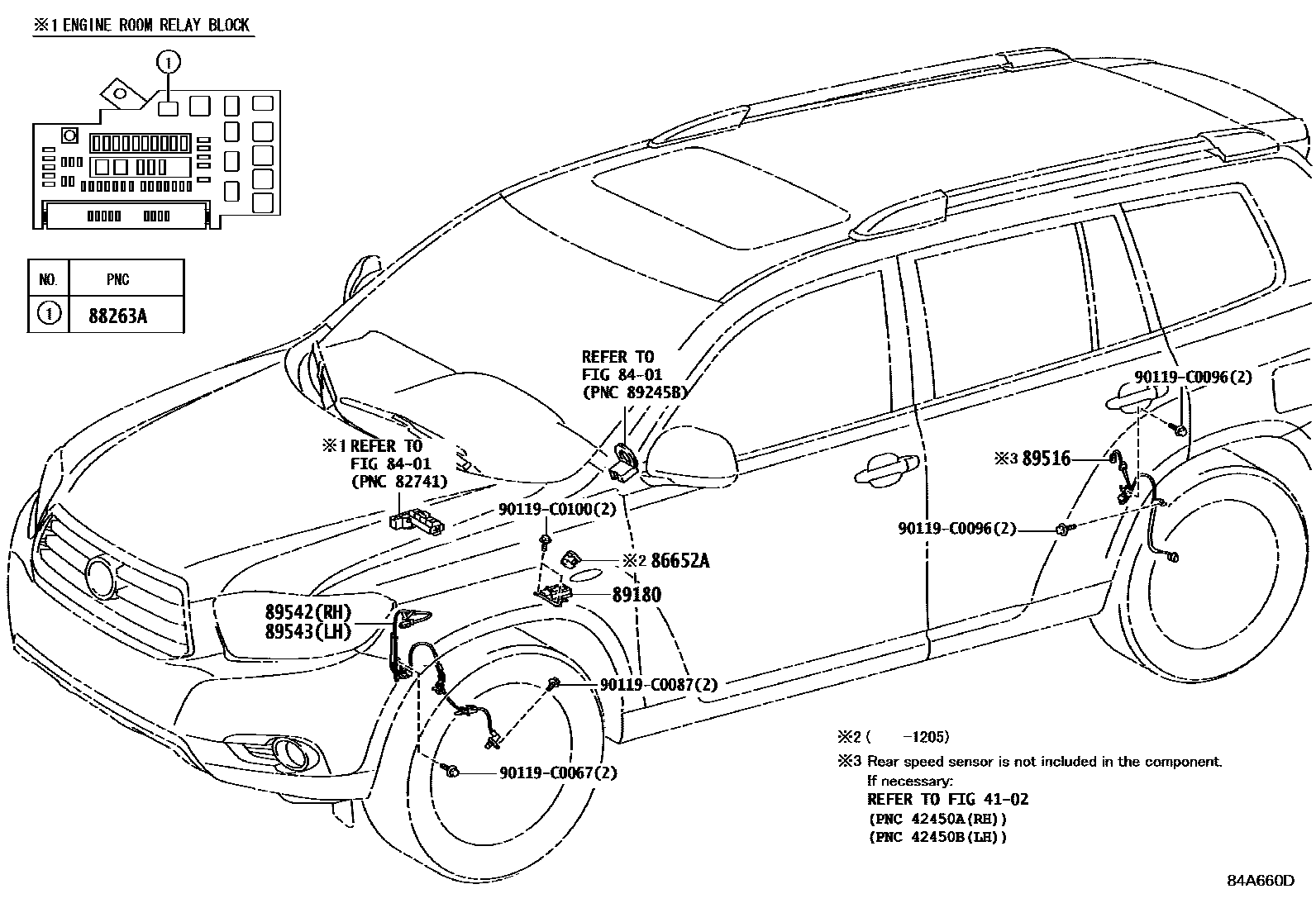

ABS & VSC

0001 1 0002 1

4102REAR AXLE SHAFT & HUB

→ Go to FIG 41-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

86652ABUZZER ASSY, SKID CONTROL

main86652-50010iASU40,GSU45200905-201205

88263ARELAY, SKID CONTROL

main90987-T4001iASU40,GSU45200905-201205

89180SENSOR ASSY, YAWRATE

main89180-48090iASU40,GSU45201205

89516WIRE, SKID CONTROL SENSOR

main89516-0E060iASU40200905-201204

RH

main89516-0E070iASU40200905-201204

LH

89542SENSOR, SPEED, FRONT RH

main89542-0E030iASU40,GSU45200905-201205

89543SENSOR, SPEED, FRONT LH

main89543-0E030iASU40,GSU45200905-201205

90119C0067

main90119-C0067

90119C0087

main90119-C0087

90119C0096

main90119-C0096

90119C0100

main90119-C0100

12 parts on this diagram · 2 diagrams in section
