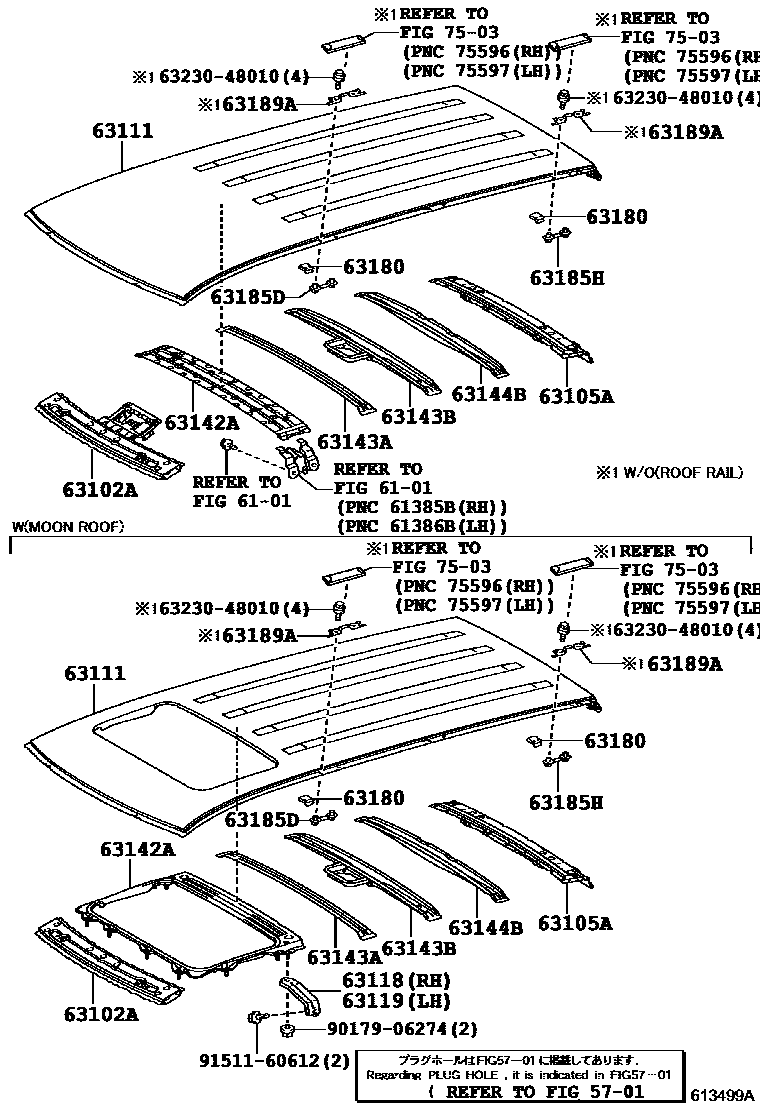

ROOF PANEL & BACK WINDOW GLASS

0001 1ROOF PANEL 0002 1MOON ROOF 0003 1ROOF RAIL

5701HOLE PLUG

→ Go to FIG 57-01

6101SIDE MEMBER

→ Go to FIG 61-01

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-0E020iGSU45..D201205

main63102-0E040iGSU45..LIMD,SPO200905-201205

main63102-0E070iASU40..D; ASU40..SPO200905-201205

main63102-0E080iASU40..LIMD,SPO200905-201205

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-0E030iASU40,GSU45200905-201205

63111PANEL, ROOF

main63111-0E030iASU40,GSU45..D; ASU40..SPO200905-201205

main63111-0E040iASU40,GSU45..LIMD,SPO201205

63118SUPPORT, ROOF PANEL, RH

main63118-0E030iASU40,GSU45..LIMD,SPO200905-201205

63119SUPPORT, ROOF PANEL, LH

main63118-0E030iASU40,GSU45..LIMD,SPO200905-201205

63142AREINFORCEMENT, ROOF PANEL, NO.2

main63103-0E010iASU40,GSU45..D; ASU40..SPO200905-201205

main63142-0E030iASU40,GSU45..LIMD,SPO200905-201205

63143AREINFORCEMENT, ROOF PANEL

main63143-0E030iASU40,GSU45200905-201205

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63104-0E010iASU40,GSU45200905-201205

63144BREINFORCEMENT, ROOF PANEL, NO.4

main63144-0E020iASU40,GSU45201205

63180CLIP(BRACKET, ROOF RACK)

main63479-48010×2iASU40,GSU45200905-201205

REAR

main63479-48020×2iASU40,GSU45200905-201205

FRONT

63185DBRACKET, ROOF RACK, FRONT

main63187-0E100×2iASU40,GSU45201304

main63187-35020×2iASU40,GSU45201205-201303

63185HBRACKET, ROOF RACK

main63187-0E110×2iASU40,GSU45201304

main63187-48020×2iASU40,GSU45201205-201303

63189ABRACKET, ROOF RACK, CENTER

main63185-48010×4iASU40,GSU45..D200905-201205

7503SIDE MOULDING

→ Go to FIG 75-03

6323048010MOULDING ASSY, ROOF WINDOW, SIDE

main63230-48010

9017906274

main90179-06274

9151160612

main91511-60612

19 parts on this diagram · 3 diagrams in section
