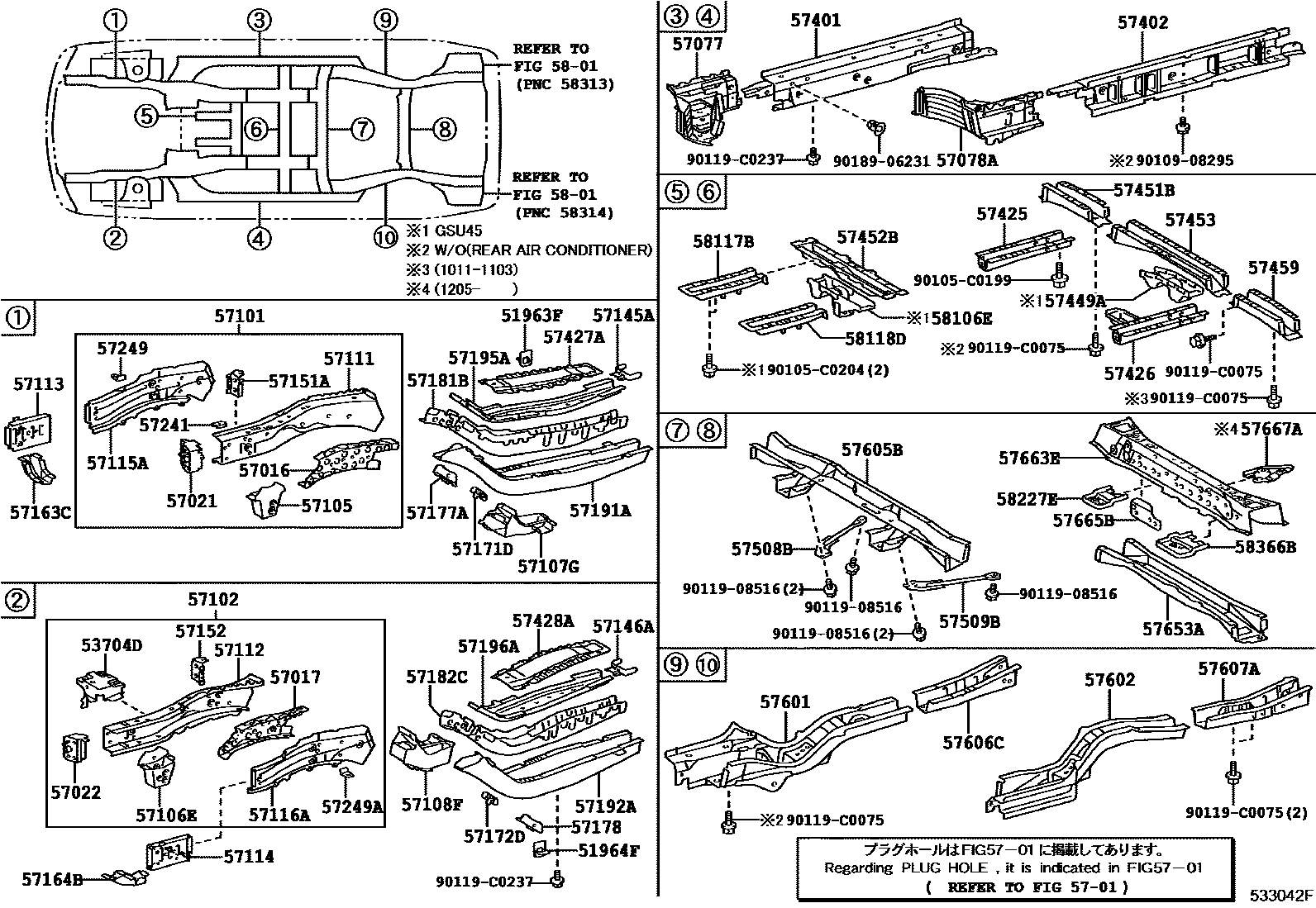

FLOOR SIDE MEMBER
51963FHOOK, TRANSPORT
51964FHOOK, TRANSPORT, LH
53704DSUPPORT SUB-ASSY, BATTERY, LH
5701HOLE PLUG
57016REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH
57017REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH
57021BRACKET SUB-ASSY, BODY MOUNTING, NO.1 RH
57022BRACKET SUB-ASSY, BODY MOUNTING, NO.1 LH
57077BOX SUB-ASSY, TORQUE, FRONT RH
57078ABOX SUB-ASSY, TORQUE, FRONT LH
57101MEMBER SUB-ASSY, FRONT SIDE, RH
57102MEMBER SUB-ASSY, FRONT SIDE, LH
57105BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRONT RH
57106EBRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRONT LH
57107GBRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, REAR RH
57108FBRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, REAR LH
57111MEMBER, FRONT SIDE, RH
57112MEMBER, FRONT SIDE, LH
57113EXTENSION, FRONT SIDE MEMBER, RH
57114EXTENSION, FRONT SIDE MEMBER, LH
57115APLATE, FRONT SIDE MEMBER, OUTER RH
57116APLATE, FRONT SIDE MEMBER, OUTER LH
57145AREINFORCEMENT, FRONT SIDE MEMBER, REAR RH
57146AREINFORCEMENT, FRONT SIDE MEMBER, REAR LH
57151AREINFORCEMENT, FRONT SIDE MEMBER, NO.1 RH
57152REINFORCEMENT, FRONT SIDE MEMBER, NO.1 LH
57163CREINFORCEMENT, FRONT CROSSMEMBER, NO.1 RH
57164BREINFORCEMENT, FRONT CROSSMEMBER, NO.1 LH
57171DPLATE, FRONT SIDE MEMBER TO FLOOR, RH
57172DPLATE, FRONT SIDE MEMBER TO FLOOR, LH
57177APLATE, FRONT SIDE MEMBER, NO.7 RH
57178PLATE, FRONT SIDE MEMBER, NO.7 LH
57181BPLATE, FRONT SIDE MEMBER, NO.3 RH
57182CREINFORCEMENT, FRONT SIDE MEMBER, REAR NO.1 LH
57191AMEMBER, FRONT SIDE, INNER REAR RH
57192AMEMBER, FRONT SIDE, INNER REAR LH
57195AREINFORCEMENT, FRONT SIDE MEMBER, FRONT RH
57196AREINFORCEMENT, FRONT SIDE MEMBER, FRONT LH
57241REINFORCEMENT, FRONT SIDE MEMBER, NO.5 RH
57249BRACKET, FLEXIBLE HOSE, NO.1
57249ABRACKET, FREXIBLE HOUSE, NO.1, LH
57401MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH
57402MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH
57425REINFORCEMENT, FRONT FLOOR, NO.2 RH
57426REINFORCEMENT, FRONT FLOOR, NO.2 LH
57427AREINFORCEMENT, FRONT FLOOR, NO.3 RH
57428AREINFORCEMENT, FRONT FLOOR, NO.3 LH
57449ABRACKET, DIFF LOCK LEVER MOUNT, NO.2
57451BMEMBER, FRONT FLOOR CROSS, RH
57452BMEMBER, FRONT FLOOR CROSS, NO.2
57453MEMBER, FRONT FLOOR CROSS, NO.3
57459MEMBER, FRONT FLOOR CROSS, NO.2
57508BREINFORCEMENT SUB-ASSY, FRONT FLOOR, RH
57509BREINFORCEMENT SUB-ASSY, FRONT FLOOR, LH
57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH
57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH
57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1
57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2
57607AMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3
57653AMEMBER, REAR FLOOR CROSS, NO.2
57663EMEMBER, REAR FLOOR CROSS, CENTER
57665BREINFORCEMENT, REAR FLOOR CROSSMEMBER, NO.2
57667AREINFORCEMENT, REAR FLOOR CROSSMEMBER, NO.4
5801FLOOR PAN & LOWER BACK PANEL
58106ECOVER SUB-ASSY, RESERVE TANK SERVICE HOLE
58117BREINFORCEMENT, FRONT FLOOR SIDE, RH
58118DREINFORCEMENT, FRONT FLOOR SIDE, LH
58227EPLATE, FRONT FLOOR PANEL SIDE, RH
58366BBRACKET, FUEL TANK SUPPORT, LH
90105C0199
main90105-C0199
90105C0204
main90105-C0204
9010908295
main90109-08295
9011908516
main90119-08516
90119C0075
main90119-C0075
90119C0237
main90119-C0237
9018906231
main90189-06231
76 parts on this diagram · 1 diagram in section
