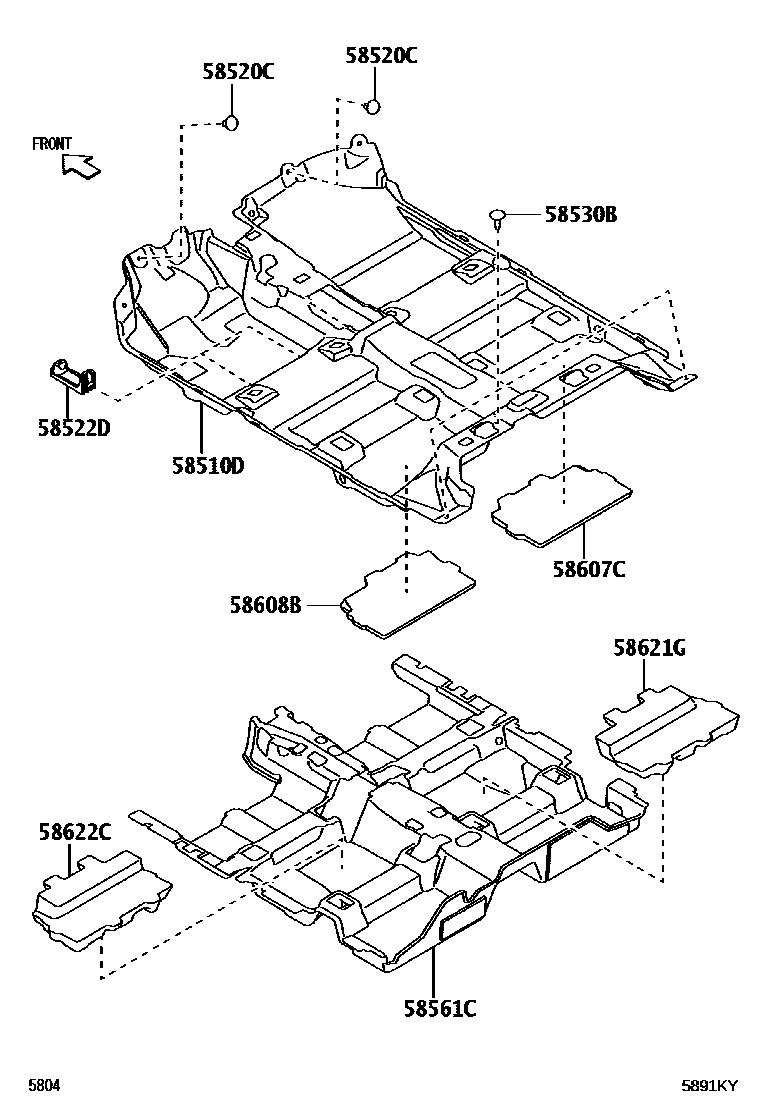

Toyota 514210 — MAT & CARPET
58510DCARPET ASSY, FLOOR, FRONT
58520CCLIP(FOR FRONT FLOOR CARPET)
58522DHOOK, FLOOR CARPET, NO.2
58530BCLIP(FOR FRONT FLOOR CARPET)
58561CSILENCER, FRONT FLOOR, NO.1
58607CPAD SUB-ASSY, FRONT FLOOR SILENCER, REAR RH
58608BPAD SUB-ASSY, FRONT FLOOR SILENCER, REAR LH
58621GPAD, FRONT FLOOR SILENCER, RH
58622CPAD, FRONT FLOOR SILENCER, LH
9 parts on this diagram · 3 diagrams in section
MAT & CARPET for Toyota 514210
This section contains 13 genuine Toyota parts for the MAT & CARPET system of the Toyota 514210. Key components include: CARPET ASSY, FLOOR, FRONT, MAT, FLOOR, FRONT RH, MAT, FLOOR, FRONT LH, MAT, FLOOR, REAR RH, MAT, FLOOR, REAR LH.
