Toyota 514210 — TRANSAXLE ASSY(CVT)

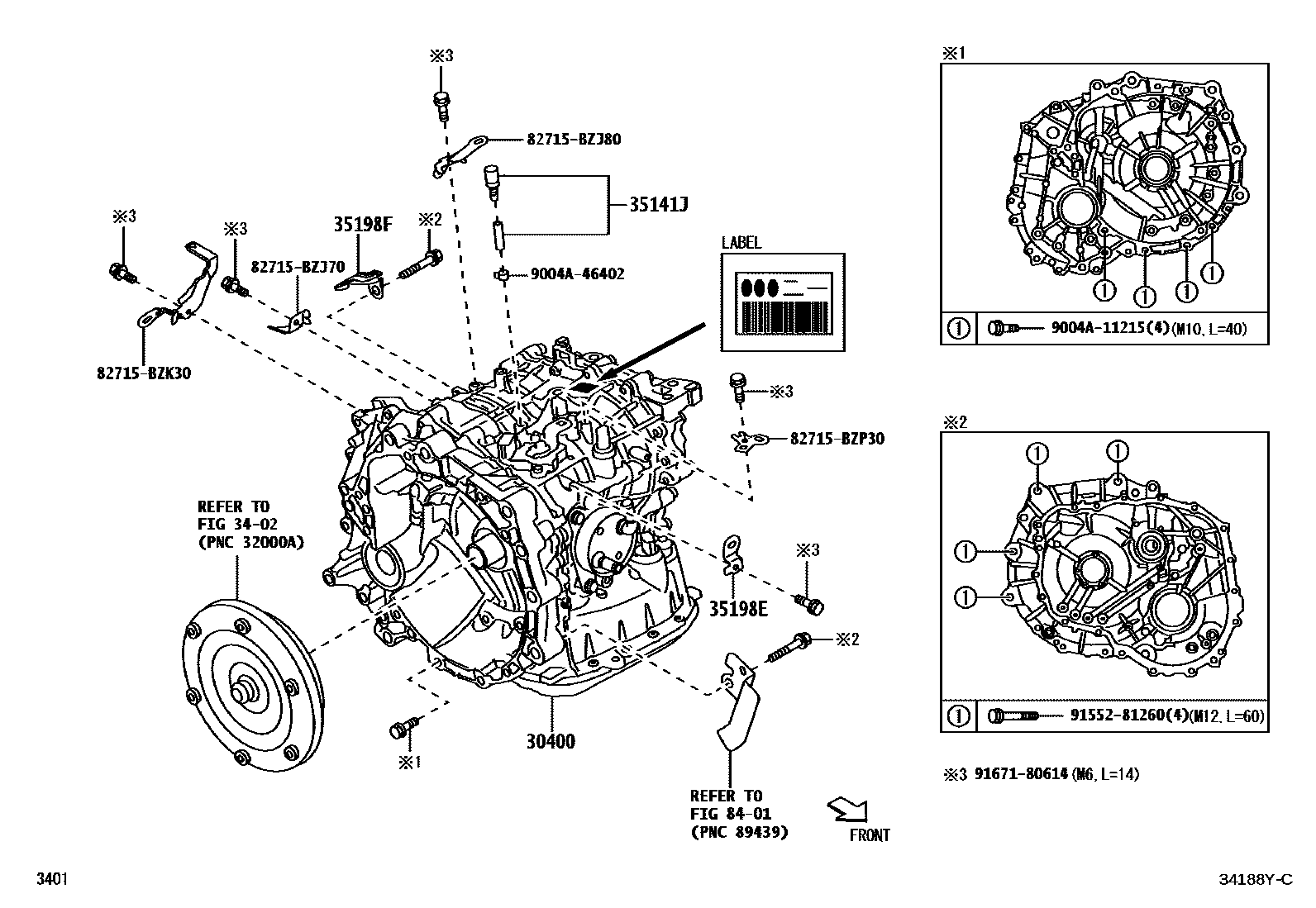

Parts diagram
30400TRANSAXLE ASSY, CONTINUOUSLY VARIABLE
90043-11436
90043-11437
90043-11440
30400-B2B40
3402TORQUE CONVERTER, FRONT OIL PUMP(CVT)
→ Go to FIG 34-02
35141JPLUG, BREATHER, NO.2(CVT)
35198EBRACKET, WIRE HARNESS CLAMP, NO.1
35198FBRACKET, WIRE HARNESS CLAMP
8401SWITCH & RELAY & COMPUTER
→ Go to FIG 84-01
82715BZJ70BRACKET,WIRING HARNESS CLAMP
82715-BZJ70
82715BZJ80BRACKET,WIRING HARNESS CLAMP
82715-BZJ80
82715BZK30BRACKET,WIRING HARNESS CLAMP
82715-BZK30
82715BZP30BRACKET,WIRING HARNESS CLAMP
82715-BZP30
9004A11215
9004A-11215
9004A46402
9004A-46402
9155281260
91552-81260
9167180614
91671-80614

14 parts on this diagram · 4 diagrams in section

TRANSAXLE ASSY(CVT) for Toyota 514210

This section contains 49 genuine Toyota parts for the TRANSAXLE ASSY(CVT) system of the Toyota 514210. Key components include: TRANSAXLE ASSY, CONTINUOUSLY VARIABLE, SEAL, TYPE T OIL, NO.1(FOR CVT), SEAL, TYPE T OIL, NO.2(FOR CVT), SEAL, TYPE T OIL(FOR CVT OIL PUMP), TORQUE CONVERTER, FRONT OIL PUMP(CVT).
