Toyota 514210 — FRONT SEAT & SEAT TRACK

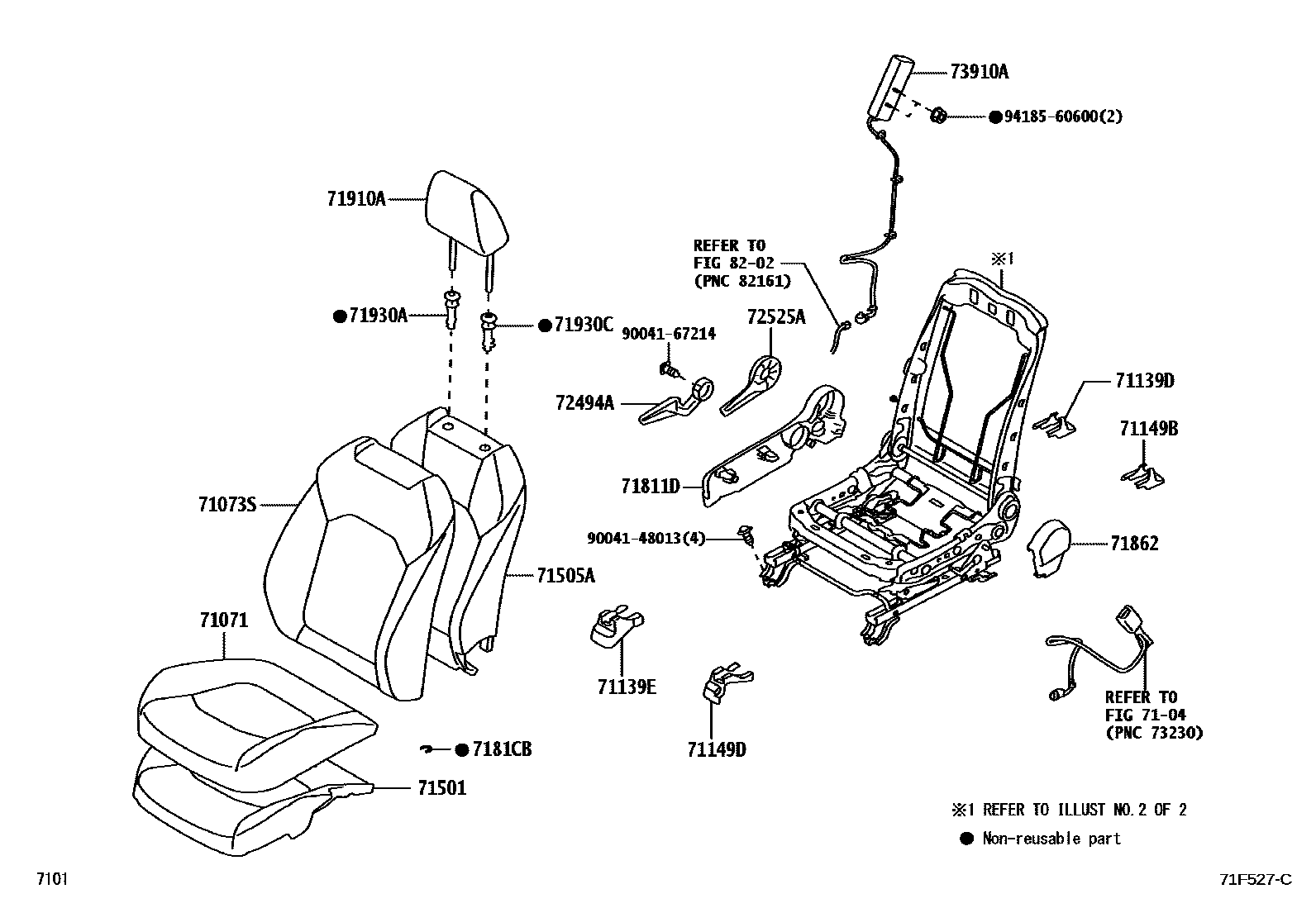

Parts diagram

7104SEAT BELT & CHILD RESTRAINT SEAT

→ Go to FIG 71-04

71071COVER SUB-ASSY, FRONT SEAT CUSHION, RH

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

71139DCOVER, FRONT SEAT LEG NO.1

71139ECOVER, FRONT SEAT LEG NO.2

71149BCOVER, FRONT SEAT LEG, LH (FOR RH SEAT)

71149DCOVER, FRONT SEAT LEG, INNER (FOR RH SEAT)

71501PAD SUB-ASSY, FRONT SEAT CUSHION, RH

71505APAD SUB-ASSY, FRONT SEATBACK, RH

71811DSHIELD, FRONT SEAT CUSHION, RH

7181CBRING, HOG, SMALL (FOR FRONT SEAT CUSHION)

71862SHIELD, FRONT SEAT CUSHION, INNER LH

71910AHEADREST ASSY, FRONT SEAT

71930ASUPPORT ASSY, FRONT SEAT HEADREST

71930CSUPPORT, FRONT SEAT HEADREST, LH

72494AHANDLE, FRONT SEAT VERTICAL ADJUSTER, RH

72525AHANDLE, RECLINING ADJUSTER RELEASE, RH

73910AAIRBAG ASSY, FRONT SEAT, RH

8202WIRING & CLAMP

→ Go to FIG 82-02

9004148013

9004167214

9418560600

22 parts on this diagram · 15 diagrams in section

FRONT SEAT & SEAT TRACK for Toyota 514210

This section contains 98 genuine Toyota parts for the FRONT SEAT & SEAT TRACK system of the Toyota 514210. Key components include: FRAME SUB-ASSY, FRONT SEATBACK, RH, FRAME SUB-ASSY, FRONT SEATBACK, LH, SEAT BELT & CHILD RESTRAINT SEAT, SPRING SUB-ASSY, FRONT SEAT CUSHION, RH, SPRING SUB-ASSY, FRONT SEAT CUSHION, LH.
