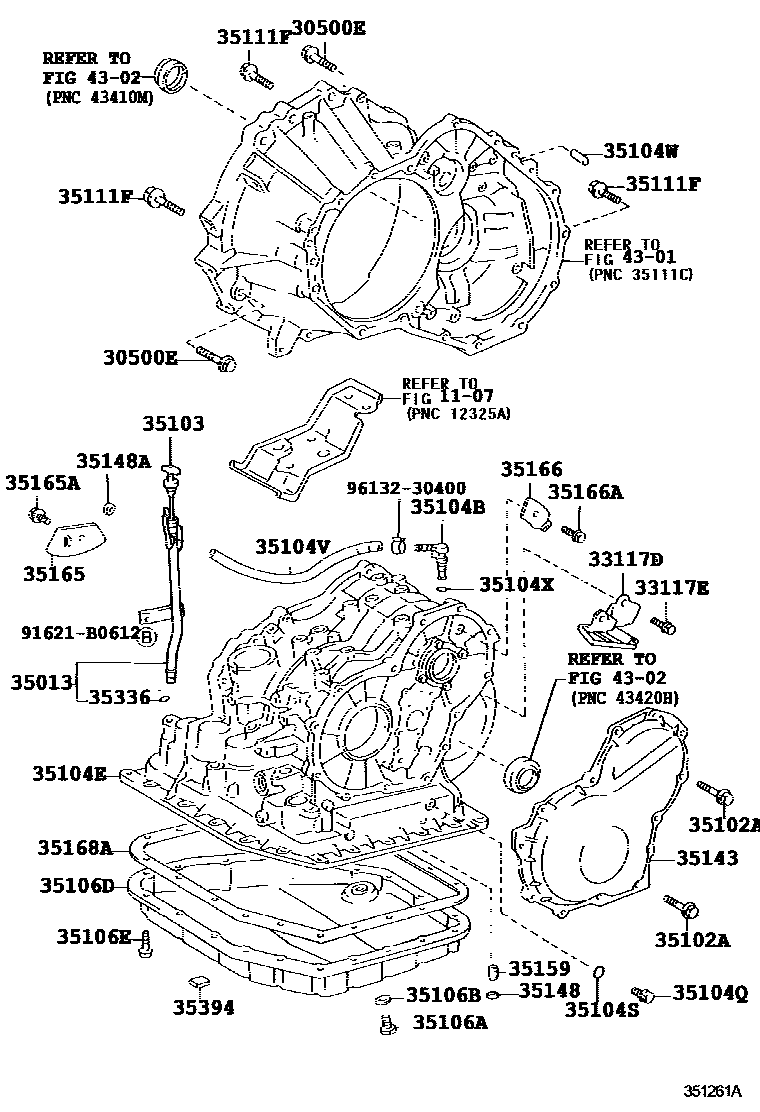

TRANSMISSION CASE & OIL PAN (ATM)

1107MOUNTING

→ Go to FIG 11-07

30500EBOLT(FOR TRANSAXLE & ENGINE SETTING)

main90105-08040iSXM10199908

*8-1.25PX18-15

main90105-10077iSXM10199908

*10-1.25PX43-26

main91619-61245×3iSXM10199908

*12-1.25PX45-30

33117DPROTECTOR, AUTOMATIC TRANSMISSION CASE

main33117-12030iSXM10199908

33117EBOLT(FOR AUTOMATIC TRANSMISSION CASE PROTECTOR)

main90105-08040×2iSXM10199908

35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER

main35013-44070iSXM10199908

35102ABOLT (FOR TRANSAXLE REAR COVER SETTING)

main90105-06198×2iSXM10199908

*6-1.00PX32-32

main91511-80625×11iSXM10199908

*6-1.0PX25-25

35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL

main35103-44040iSXM10199908

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03132iSXM10199908

35104ECASE SUB-ASSY, AUTOMATIC TRANSAXLE

main35104-20110iSXM10199908

35104QPLUG, NO.1 (FOR TRANSAXLE CASE)

main90341-08001iSXM10199908

35104SRING, O (FOR TRANSAXLE CASE PLUG NO.1)

main90301-06196iSXM10199908

35104VHOSE (FOR BREATHER PLUG)

main90447-11040iSXM10199908

35104WPIN, STRAIGHT (FOR TRANSAXLE CASE)

main90250-10021×2iSXM10199908

NO.1

main90250-11001×2iSXM10199908

NO.2

35104XRING, O (FOR BREATHER PLUG)

main90301-06010iSXM10199908

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-10011iSXM10199908

35106BGASKET, DRAIN PLUG (ATM)

main35178-30010iSXM10199908

35106DPAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL

main35106-12090iSXM10199908

35106EBOLT (FOR TRANSAXLE OIL PAN)

main90119-06173×18iSXM10199908

35111FBOLT (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING)

main90105-08068iSXM10199908

*8-1.25PX35-30

main90105-08071×14iSXM10199908

*8-1.25PX30-25

main90105-08288×3iSXM10199908

*8-1.28PX30-25,*8-1.28PX30-25

35143COVER, TRANSMISSION CASE, REAR

main35143-12030iSXM10199908

35148GASKET, GOVERNOR APPLY, NO.1

main35148-16010iSXM10199908

35148AGASKET, GOVERNOR APPLY, NO.2

main35148-12010iSXM10199908

35159GASKET, BRAKE DRUM

main35159-20010iSXM10199908

35165PLATE, TRANSMISSION CASE, NO.1

main35165-20010iSXM10199908

35165ABOLT (FOR TRANSMISSION CASE PLATE NO.1)

main90105-06049iSXM10199908

35166PLATE, TRANSMISSION CASE, NO.3

main35166-12020iSXM10199908

35166ABOLT (FOR TRANSMISSION CASE PLATE NO.3)

main90105-06049iSXM10199908

35168AGASKET, AUTOMATIC TRANSAXLE OIL PAN

main35168-12030iSXM10199908

35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)

main90301-09173iSXM10199908

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011×2iSXM10199908

4301FRONT AXLE HOUSING & DIFFERENTIAL

→ Go to FIG 43-01

4302FRONT DRIVE SHAFT

→ Go to FIG 43-02

91621B0612

main91621-B0612

9613230400

main96132-30400

34 parts on this diagram · 1 diagram in section
