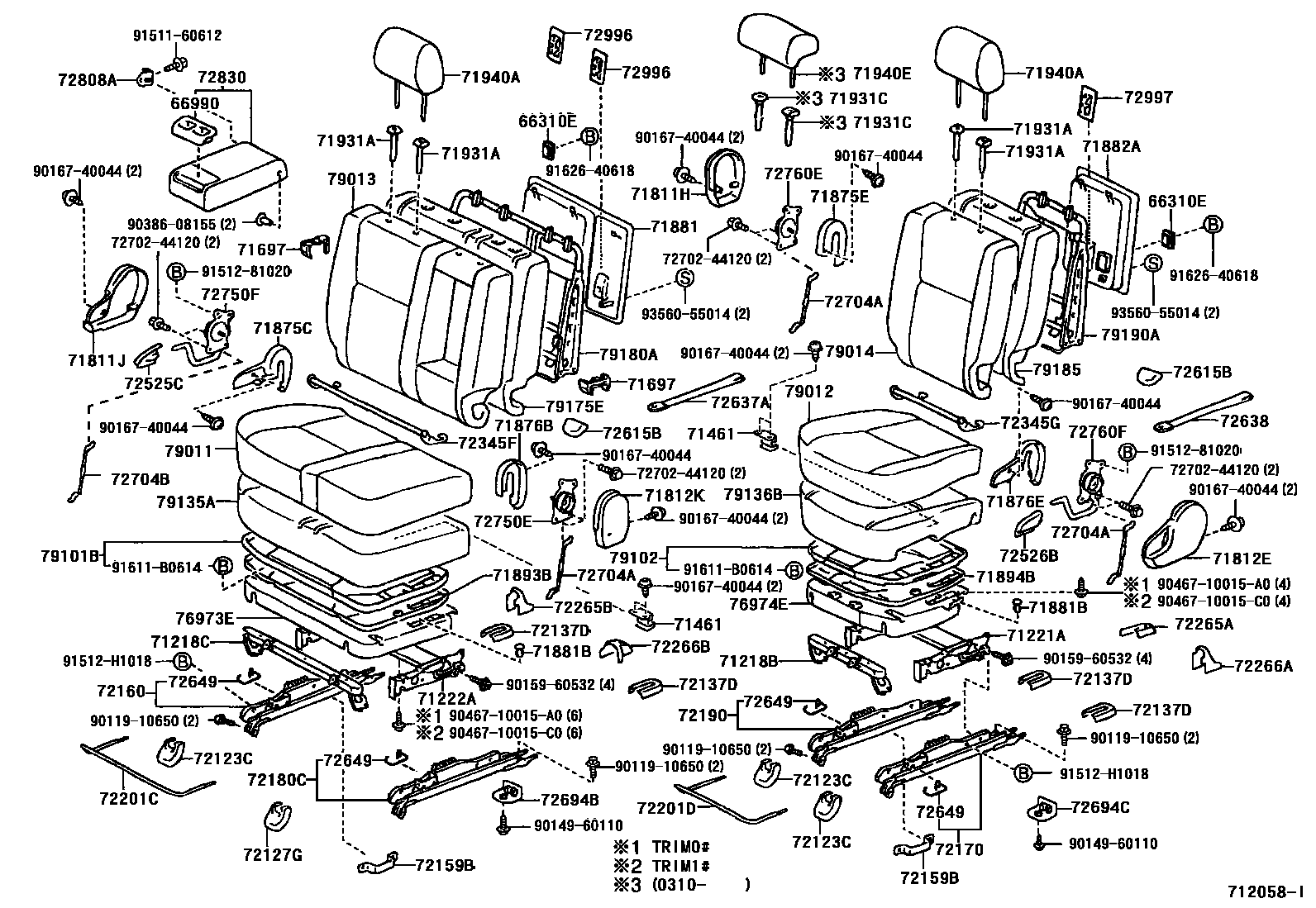

REAR SEAT & SEAT TRACK

0001 1BENCH SEAT 0002 1DETACHABL SEAT(2 PERSONS) 0003 1DETACHABL SEAT(3 PERSONS) RH 0004 1DETACHABL SEAT(3 PERSONS) CTR0005 1DETACHABL SEAT(3 PERSONS) LH 0006 13RD SEAT 0007 1DETACHABL SEAT(3RD SEAT)

66310EHOOK ASSY, ROPE

main66310-31010-A0×2iACM20..ARL,GEN200105-200310

IVORY,TRIM0#

main66310-31010-B3×2iACM21200310-200912

DK.GRAY,TRIM1#

66990HOLDER ASSY, CUP

main66991-28040-A0iACM20..GEN200310-200912

IVORY,TRIM0#

main66991-28040-C0iACM21200310-200912

BLACK,TRIM1#

71218BREINFORCEMENT, RR SEAT CUSHION, RH

main71218-44050iACM20..ARL,GEN200105-200310

71218CREINFORCEMENT, RR SEAT CUSHION, LH

main71218-44040iACM2#..ARL,GEN200310

71221AREINFORCEMENT, REAR SEAT CUSHION, REAR

main71221-44030iACM2#..ARL,GEN200310

71222AREINFORCEMENT, REAR SEAT CUSHION, REAR

main71221-44020iACM20..GEN200310

main71221-44040iACM20..ARL200110-200310

71461SPRING, REAR SEAT CUSHION

main71461-44050×2iACM20..ARL,GEN200105-200310

71697PROTECTOR, REAR SEATBACK EDGE

main71697-44040×2iACM20..ARL,GEN200105-200310

RH

main71697-44070×2iACM2#..ARL,GEN200310

LH

71811HCOVER, RECLINING ADJUSTER, RH

main71811-44050-A0iACM20..ARL,GEN200105-200310

IVORY,TRIM0#

main71811-44050-C0iACM21200310-200912

BLACK,TRIM1#

main71811-44070-C0iACM20,CLM20..EUR200105-200310

BLACK,TRIM1#

71811JCOVER, RECLINING ADJUSTER, RH

main71811-44060-A0iACM20..GEN200310-200912

IVORY,TRIM0#

main71811-44060-C0iACM21200310-200912

BLACK,TRIM1#

main71811-44080-C0iACM20,CLM20..EUR200310-200507

BLACK,TRIM1#

71812ECOVER, RECLINING ADJUSTER, LH

main71812-44050-A0iACM20..GEN200310-200912

IVORY,TRIM0#

main71812-44050-C0iACM21200310-200912

BLACK,TRIM1#

main71812-44070-C0iACM20,CLM20..EUR200105-200310

BLACK,TRIM1#

71812KCOVER, RECLINING ADJUSTER, LH

main71812-44060-A0iACM20..GEN200310-200912

IVORY,TRIM0#

main71812-44060-C0iACM21200310-200912

BLACK,TRIM1#

main71812-44160-C0iACM20,CLM20..EUR200310-200507

BLACK,TRIM1#

71875CCOVER, RECLINING ADJUSTER INSIDE, RH

main71875-44020-A0iACM20..ARL,GEN200105-200310

IVORY,TRIM0#

main71875-44020-C0iACM21200310-200912

BLACK,TRIM1#

71875ECOVER, RECLINING ADJUSTER INSIDE, RH

main71875-44030-A0iACM20200706-200912

IVORY,TRIM0#

main71875-44030-C0iACM21200706-200912

BLACK,TRIM1#

main71876-44030-A0iACM20..ARL,GEN200105-200310

IVORY,TRIM0#

main71876-44030-C0iACM21200310-200705

BLACK,TRIM1#

71876BCOVER, RECLINING ADJUSTER INSIDE, LH

main71875-44030-A0iACM20..ARL,GEN200105-200310

IVORY,TRIM0#

main71875-44030-C0iACM21200310-200705

BLACK,TRIM1#

main71876-44020-C0iACM20,CLM20..07S..EUR200310-200507

BLACK,TRIM1#

main71876-44030-A0iACM20200706-200912

IVORY,TRIM0#

main71876-44030-C0iACM21200706-200912

BLACK,TRIM1#

71876ECOVER, RECLINING ADJUSTER INSIDE, LH

main71876-44040-A0iACM20..ARL,GEN200105-200310

IVORY,TRIM0#

main71876-44040-C0iACM21200310-200912

BLACK,TRIM1#

71881BOARD, REAR SEATBACK, RH

main71881-28030-C0iACM20,CLM20..EUR200105-200310

BLACK,TRIM1#

main71881-44080-A0iACM20..GEN200105-200310

IVORY,TRIM0#

main71881-44100-A0iACM20..ARL200110-200310

IVORY,TRIM0#

main71881-44100-C0iACM21200310-200912

BLACK,TRIM1#

main71881-44130-A0iACM20..GEN200310-200912

IVORY,TRIM0#

71881BCLIP, REAR SEATBACK BOARD

main90467-10005-A0×4iACM20..ARL,GEN200105-200310

IVORY,TRIM0#

main90467-10005-C0×4iACM21200310-200912

BLACK,TRIM1#

71882ABOARD, REAR SEATBACK, LH

main71881-28030-C0iACM20,CLM20..EUR200105-200310

BLACK,TRIM1#

main71881-44070-A0iACM20..GEN200105-200310

IVORY,TRIM0#

main71881-44090-A0iACM20..GEN200310-200912

IVORY,TRIM0#

main71881-44090-C0iACM21200310-200912

BLACK,TRIM1#

71893BCARPET, REAR SEAT CUSHION, UNDER RH

main71893-44010-A0iACM20..ARL,GEN200105-200310

IVORY,TRIM0#

main71893-44010-C0iACM21200310-200912

BLACK,TRIM1#

71894BCARPET, REAR SEAT CUSHION, UNDER LH

main71894-44010-A0iACM20..ARL,GEN200105-200310

IVORY,TRIM0#

main71894-44010-C0iACM21200310-200912

BLACK,TRIM1#

71931ASUPPORT, REAR SEAT HEADREST

main71930-42020-A0×2iACM20..ARL,GEN200105-200310

W(LOCK)&W(BUTTON),IVORY,TRIM0#

main71930-42020-C0×2iACM2#,CLM20..ARL,EUR200310-200705

W(LOCK)&W(BUTTON),BLACK,TRIM1#

main71930-52030-A0×2iACM20200706-200912

W(LOCK)&W(BUTTON),IVORY,TRIM0#

main71930-52030-C0×2iACM21200706-200912

W(LOCK)&W(BUTTON),BLACK,TRIM1#

main71931-42020-A0×2iACM20..GEN200310-200912

W(LOCK)&W/O(BUTTON),IVORY,TRIM0#

main71931-42020-C0×2iACM20,CLM20..EUR200105-200310

W(LOCK)&W/O(BUTTON),BLACK,TRIM1#

71931CSUPPORT ASSY, REAR NO.2 SEAT HEADREST

main71930-42020-A0iACM20..GEN200310-200705

W(LOCK)&W(BUTTON),IVORY,TRIM0#

main71930-42020-C0iACM2#,CLM20..07S..(ARL,EUR)200310-200705

W(LOCK)&W(BUTTON),BLACK,TRIM1#

main71930-52030-A0iACM20200706-200912

W(LOCK)&W(BUTTON),IVORY,TRIM0#

main71930-52030-C0iACM21200706-200912

W(LOCK)&W(BUTTON),BLACK,TRIM1#

main71931-42020-A0iACM20..GEN200310-200912

W(LOCK)&W/O(BUTTON),IVORY,TRIM0#

main71931-42020-C0iACM2#,CLM20..07S..(ARL,EUR)200310-200912

W(LOCK)&W/O(BUTTON),BLACK,TRIM1#

71940AHEADREST ASSY, REAR SEAT

main71910-44420-B1×2iACM21200310-200912

GRAY,TRIM1#

main71940-44180-A0×2iACM20..GEN200105-200310

IVOLY,TRIM0#

main71940-44250-B0×2iACM20,CLM20..EUR200105-200310

DARK GRAY,TRIM1#

main71940-44250-B2×2iACM20,CLM20..EUR200310-200507

GRAY,TRIM1#

main71940-44340-A0×2iACM20..GEN200310-200912

IVORY,TRIM0#

71940EHEADREST ASSY, NO.2 SEAT

main71940-44160-B1iACM20,CLM20..07S..EUR200105-200310

DARK GRAY,TRIM1#

main71940-44160-B3iACM20,CLM20..07S..EUR200310-200507

GRAY,TRIM1#

main71940-44390-A0iACM20..GEN200310-200912

IVORY,TRIM0#

main71940-44410-B1iACM21200310-200912

MD.GRAY,TRIM1#

72123CCOVER, SEAT TRACK BRACKET, OUTER FRONT RH

main72123-44010-A0×3iACM20..ARL,GEN200105-200310

IVORY,TRIM0#

main72123-44010-C0×3iACM21200310-200912

BLACK,TRIM1#

72127GCOVER, SEAT TRACK BRACKET, INNER FRONT RH

main72127-44010-A0iACM20..ARL,GEN200105-200310

IVORY,TRIM0#

main72127-44010-C0iACM21200310-200912

BLACK,TRIM1#

72137DCOVER, REAR SEAT TRACK, RH

main72137-44030-A0×4iACM20..ARL,GEN200105-200310

IVORY,TRIM0#

main72137-44030-C0×4iACM21200310-200912

BLACK,TRIM1#

72159BCOVER, REAR SEAT TRACK BRACKET, OUTER

main72159-44010×2iACM20..ARL,GEN200105-200310

72160TRACK ASSY, REAR SEAT, OUTER RH

main72160-44050iACM20..ARL,GEN200105-200310

72170TRACK ASSY, REAR SEAT, OUTER LH

main72170-44050iACM20..ARL,GEN200105-200310

72180CTRACK ASSY, REAR SEAT, INNER RH

main72180-44020iACM20..ARL,GEN200105-200310

72190TRACK ASSY, REAR SEAT INNER, LH

main72190-44020iACM20..ARL,GEN200105-200310

72201CHANDLE SUB-ASSY, SEAT TRACK, RH

main72201-44040iACM20..ARL,GEN200105-200310

main72211-44030iACM20,CLM20..EUR200105-200310

72201DHANDLE SUB-ASSY, SEAT TRACK, LH

main72201-44050iACM2#..ARL,GEN200310

main72211-44030iACM20,CLM20..EUR200310-200507

72265ACOVER, SEAT TRACK UPPER RAIL, RH

main72265-44030-A0iACM20..ARL,GEN200105-200310

IVORY,TRIM0#

main72265-44030-C0iACM21200310-200912

BLACK,TRIM1#

72265BCOVER, SEAT TRACK UPR RAIL, RH

main72265-44040-A0iACM20..ARL,GEN200105-200310

IVORY,TRIM0#

main72265-44040-C0iACM21200310-200912

BLACK,TRIM1#

72266ACOVER, SEAT TRACK UPPER RAIL, LH

main72266-44030-A0iACM20..ARL,GEN200105-200310

IVORY,TRIM0#

main72266-44030-C0iACM21200310-200912

BLACK,TRIM1#

72266BCOVER, SEAT TRACK UPPER RAIL, LH

main72266-44040-A0iACM20..ARL,GEN200105-200310

IVORY,TRIM0#

main72266-44040-C0iACM21200310-200912

BLACK,TRIM1#

72345FPIPE, RECLINING CONNECTING, RH

main72345-28110iACM20,CLM20..EUR200107-200310

main72345-44120iACM20..ARL,GEN200105-200310

72345GPIPE, RECLINING CONNECTING, LH

main72345-28110iACM20,CLM20..EUR200105-200310

main72345-44130iACM2#..ARL,GEN200310

72525CHANDLE, RECLINING ADJUSTER RELEASE, NO.1 RH

main72525-28030-C0iACM20,CLM20..EUR200105-200310

BLACK,TRIM1#

main72525-47020-A0iACM20..ARL,GEN200105-200310

IVORY,TRIM0#

main72525-47020-C0iACM21200310-200912

BLACK,TRIM1#

72526BHANDLE, RECLINING ADJUSTER RELEASE, NO.1 LH

main72526-44020-C0iACM20,CLM20..EUR200105-200310

BLACK,TRIM1#

main72526-47020-A0iACM20..ARL,GEN200105-200310

IVORY,TRIM0#

main72526-47020-C0iACM21200310-200912

BLACK,TRIM1#

72615BCOVER, REAR SEAT LOCK STRIKER, RH

main72615-44010-A0×2iACM20..ARL,GEN200105-200310

IVORY,TRIM0#

main72615-44010-C0×2iACM21200310-200912

BLACK,TRIM1#

72637AHANDLE, REAR SEAT LOCK

main72637-44050-A0iACM20..ARL,GEN200105-200310

IVORY,TRIM0#

main72637-44050-C0iACM21200310-200912

BLACK,TRIM1#

72638HANDLE, REAR SEAT LOCK, LH

main72637-44050-A0iACM20..ARL,GEN200105-200310

IVORY,TRIM0#

main72637-44050-C0iACM21200310-200912

BLACK,TRIM1#

72649SPRING, REAR SEAT CUSHION SUPPORT

main72649-44010×4iACM20..ARL,GEN200105-200310

72694BCOVER, REAR SEAT CUSHION LOCK, RH

main72694-44010-A0iACM20..ARL,GEN200105-200310

IVORY,TRIM0#

main72694-44010-C0iACM21200310-200912

BLACK,TRIM1#

72694CCOVER, REAR SEAT CUSHION LOCK, LH

main72694-44010-A0iACM20..ARL,GEN200105-200310

IVORY,TRIM0#

main72694-44010-C0iACM21200310-200912

BLACK,TRIM1#

72704ACABLE, REAR SEAT RECLINING CONTROL

main72704-44050iACM20..ARL,GEN200105-200310

RH

main72704-44060×2iACM2#..ARL,GEN200310

LH

72704BCABLE, REAR SEAT RECLINING CONTROL, NO.2

main72704-44020iACM20..ARL,GEN200105-200310

72750EADJUSTER ASSY, REAR NO.2 SEAT RECLINING, OUTER RH

main72730-44040iACM2#200803

main72730-44090iACM2#200607-200802

main72740-28620iACM20,CLM20..EUR200105-200310

72750FADJUSTER ASSY, REAR NO.2 SEAT RECLINING, INNER LH

main72630-44020iACM2#..ARL,GEN200310-200607

main72630-44030iACM2#200607

main72730-28540iACM20,CLM20..EUR200310-200507

72760EADJUSTER ASSY, REAR NO.2 SEAT RECLINING, INNER RH

main72640-44020iACM20..ARL,GEN200105-200310

main72730-44050iACM20,CLM20..EUR200310-200507

72760FADJUSTER ASSY, REAR NO.2 SEAT RECLINING, OUTER LH

main72740-44030iACM2#..ARL,GEN200310

main72740-44040iACM20,CLM20..EUR200310-200507

72808ABRACKET SUB-ASSY, SEAT CENTER ARMREST

main72883-44080iACM20..ARL,GEN200105-200310

72830ARMREST ASSY, REAR SEAT, CENTER

main72830-44140-A0iACM20..ARL,GEN200105-200310

IVOLY,TRIM0#

main72830-44310-A0iACM20..GEN200310-200912

IVORY,TRIM0#

main72830-44330-B1iACM21200310-200912

MD.GRAY,TRIM1#

72996COVER, REAR SEATBACK, RH

main72996-28160-C0iACM20,CLM20..EUR200310-200507

BLACK,TRIM1#

main72996-44040-A0×2iACM20..ARL200110-200310

IVORY,TRIM0#

main72996-44050-A0iACM20..GEN200310-200912

IVORY,TRIM0#

main72996-44050-C0×2iACM21200310-200912

BLACK,TRIM1#

72997COVER, REAR SEATBACK, LH

main72996-28160-C0iACM20,CLM20..EUR200310-200507

BLACK,TRIM1#

main72996-44040-A0iACM20..ARL200110-200310

IVORY,TRIM0#

main72996-44050-A0iACM20..GEN200310-200912

IVORY,TRIM0#

main72996-44050-C0iACM21200310-200912

BLACK,TRIM1#

76973ECOVER, REAR UNDER SIDE, RH

main76973-44020-A0iACM20..GEN200310-200912

IVORY,TRIM0#

main76973-44020-C0iACM21200310-200912

BLACK,TRIM1#

76974ECOVER, REAR UNDER SIDE, LH

main76974-44020-A0iACM20..ARL,GEN200105-200310

IVORY,TRIM0#

main76974-44020-C0iACM21200310-200912

BLACK,TRIM1#

79011COVER SUB-ASSY, NO.1 SEAT CUSHION, RH

main79011-44360-B0iACM20,CLM20..EUR200105-200310

DARK GRAY,TRIM1#

main79011-44660-B1iACM20,CLM20..EUR200310-200507

GRAY,TRIM1#

main79021-44190-A0iACM20..ARL,GEN200105-200310

IVOLY,TRIM0#

main79021-44340-A0iACM20..GEN200310-200912

IVORY,TRIM0#

main79021-44360-B1iACM21200310-200912

GRAY,TRIM1#

79012COVER SUB-ASSY, NO.1 SEAT CUSHION, LH

main79011-44310-A0iACM20..ARL,GEN200105-200310

IVOLY,TRIM0#

main79011-44360-B0iACM20,CLM20..EUR200105-200310

DARK GRAY,TRIM1#

main79011-44610-A0iACM20..GEN200310-200912

IVORY,TRIM0#

main79011-44630-B1iACM21200310-200912

GRAY,TRIM1#

main79011-44660-B1iACM20,CLM20..EUR200310-200507

GRAY,TRIM1#

79013COVER SUB-ASSY, NO.1 SEATBACK, RH

main79013-44360-B0iACM20,CLM20..06S200105-200310

DARK GRAY,TRIM1#

main79013-44360-B1iACM20,CLM20..06S200310-200507

GRAY,TRIM1#

main79013-44380-B0iACM20,CLM20..07S..EUR200105-200310

DARK GRAY,TRIM1#

main79013-44380-B1iACM20,CLM20..07S..EUR200310-200507

GRAY,TRIM1#

main79023-44250-A0iACM20..GEN200105-200310

IVOLY,TRIM0#

main79023-44300-A0iACM20..ARL200110-200310

IVOLY,TRIM0#

main79023-44410-A0iACM20..GEN200310-200912

IVORY,TRIM0#

main79023-44460-B1iACM21200310-200912

GRAY,TRIM1#

79014COVER SUB-ASSY, NO.1 SEATBACK, LH

main79013-44310-A0iACM20..GEN200105-200310

IVOLY,TRIM0#

main79013-44390-A0iACM20..ARL200110-200310

IVOLY,TRIM0#

main79013-44660-A0iACM20..GEN200310-200912

IVORY,TRIM0#

main79013-44740-B1iACM21200310-200912

GRAY,TRIM1#

main79014-44310-B0iACM20,CLM20..06S200105-200310

DARK GRAY,TRIM1#

main79014-44310-B1iACM20,CLM20..06S200310-200507

GRAY,TRIM1#

main79014-44320-B0iACM20,CLM20..07S..EUR200105-200310

DARK GRAY,TRIM1#

main79014-44320-B1iACM20,CLM20..07S..EUR200310-200507

GRAY,TRIM1#

79101BFRAME SUB-ASSY, NO.1 SEAT CUSHION, RH

main79201-44040iACM20..ARL,GEN200105-200310

79102FRAME SUB-ASSY, NO.1 SEAT CUSHION, LH

main79101-44030iACM20..ARL,GEN200105-200310

79135PAD, NO.1 SEAT CUSHION

main79135-44040iACM20,CLM20..07S..EUR200105-200310

79135APAD, NO.1 SEAT CUSHION, RH

main79235-44040iACM20..ARL,GEN200105-200310

79136BPAD, NO.1 SEAT CUSHION, LH

main79135-44050iACM20..ARL,GEN200105-200310

main79136-44020×2iACM20,CLM20..EUR200105-200310

main79136-44050×2iACM20,CLM20..EUR200310-200507

79175EPAD, NO.1 SEATBACK, RH

main79175-44080iACM20,CLM20..06S200310-200507

main79175-44090iACM20,CLM20..07S..EUR200105-200310

main79275-44060iACM20..ARL,GEN200105-200310

main79275-44080iACM2#..ARL,GEN200310-200606

main79275-44081iACM2#200607

79180ASPRING ASSY, NO.1 SEATBACK, RH

main79180-44050iACM20,CLM20..06S200105-200310

main79180-44060iACM20,CLM20..07S..EUR200310-200507

main79280-44010iACM20..GEN200105-200310

main79280-44020iACM20..ARL200110-200310

main79280-44040iACM20..GEN200310

main79280-44050iACM21200310

79185PAD, NO.1 SEATBACK, LH

main79175-44060iACM2#..ARL,GEN200310

main79185-44040iACM20,CLM20..06S200310-200507

main79185-44050iACM20,CLM20..07S..EUR200105-200310

79190ASPRING ASSY, NO.1 SEATBACK, LH

main79180-44020iACM20..GEN200105-200310

main79180-44030iACM20..ARL200110-200310

main79180-44060iACM20,CLM20..07S..EUR200310-200507

main79180-44070iACM20..GEN200310

main79190-44010iACM20,CLM20..06S200310-200507

7270244120BRACKET SUB-ASSY, REAR SEATBACK STRIKER

main72702-44120

9011910650

main90119-10650

9014960110

main90149-60110

9015960532

main90159-60532

9016740044

main90167-40044

9038608155

main90386-08155

9046710015A0

main90467-10015A0

9046710015C0

main90467-10015C0

9151160612

main91511-60612

9151281020

main91512-81020

91512H1018

main91512-H1018

91611B0614

main91611-B0614

9162640618

main91626-40618

9356055014

main93560-55014

88 parts on this diagram · 7 diagrams in section
