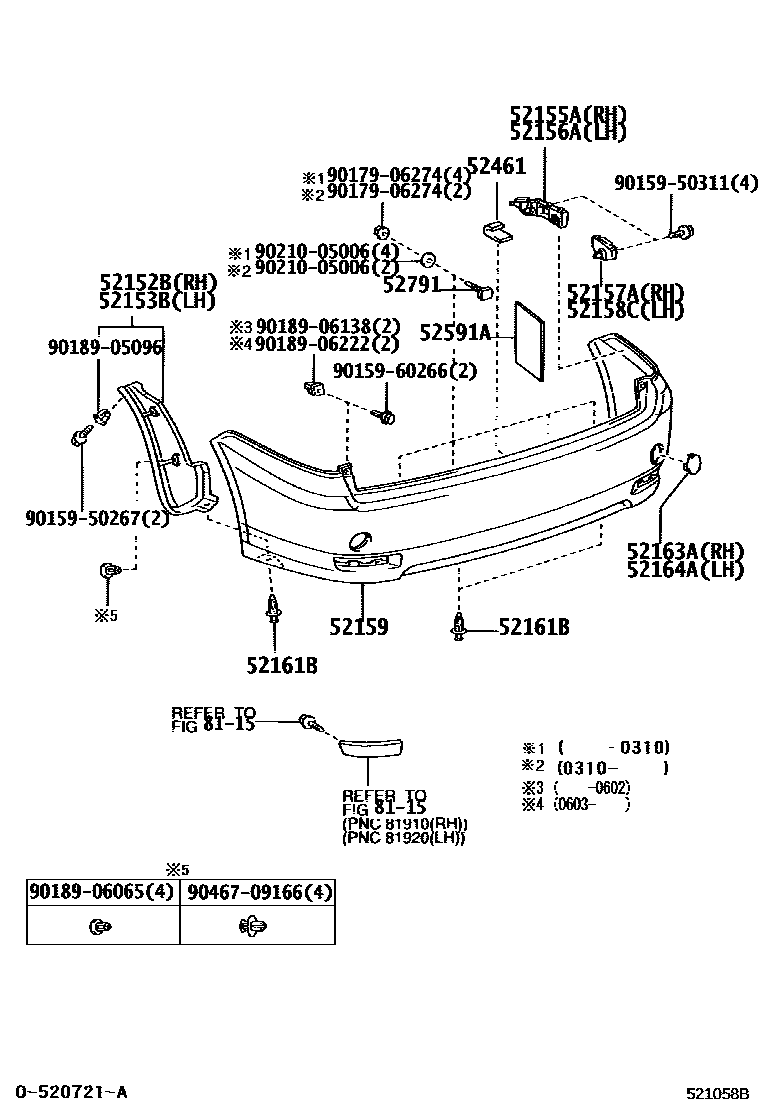

REAR BUMPER & BUMPER STAY
52152BEXTENSION, REAR BUMPER, RH
52153BEXTENSION, REAR BUMPER, LH
52155ASUPPORT, REAR BUMPER SIDE, RH
52156ASUPPORT, REAR BUMPER SIDE, LH
52157ASUPPORT, REAR BUMPER SIDE, NO.2 RH
52158CSUPPORT, REAR BUMPER SIDE, NO.2 LH
52159COVER, REAR BUMPER
52161BPIECE, REAR BUMPER
52163APLATE, REAR BUMPER, RH
SUPER WHITE 2,040
SILVER ME.,1C0
DARK GRAY M.M.,1E2
RED MC.,3M8
CHAMPAGNE M.M.,587
DARK GREEN MC.,6R4
AQUA ME.,771
DK.BLUE M.M.,8P4
SUPER WHITE 2,040
SILVER ME.,1D4
BLACK,202
DK. RED M.M.,3Q3
YELLOW M.M.,580
DARK GREEN MC.,6R4
LT.PURPLISH BLUE M.M.,8K2
BLUE MC.,8M6
52164APLATE, REAR BUMPER, LH
SUPER WHITE 2,040
SILVER ME.,1C0
DARK GRAY M.M.,1E2
RED MC.,3M8
CHAMPAGNE M.M.,587
DARK GREEN MC.,6R4
AQUA ME.,771
DK.BLUE M.M.,8P4
SUPER WHITE 2,040
SILVER ME.,1D4
BLACK,202
DK. RED M.M.,3Q3
YELLOW M.M.,580
DARK GREEN MC.,6R4
LT.PURPLISH BLUE M.M.,8K2
BLUE MC.,8M6
52461PAD, REAR BUMPER, CENTER
52591ASEAL, REAR BUMPER
52791BOLT, BUMPER MOULDING SET, NO.1
8115REFLEX REFLECTOR
9015950267
main90159-50267
9015950311
main90159-50311
9015960266
main90159-60266
9017906274
main90179-06274
9018905096
main90189-05096
9018906065
main90189-06065
9018906138
main90189-06138
9018906222
main90189-06222
9021005006
main90210-05006
9046709166
main90467-09166
24 parts on this diagram · 1 diagram in section
