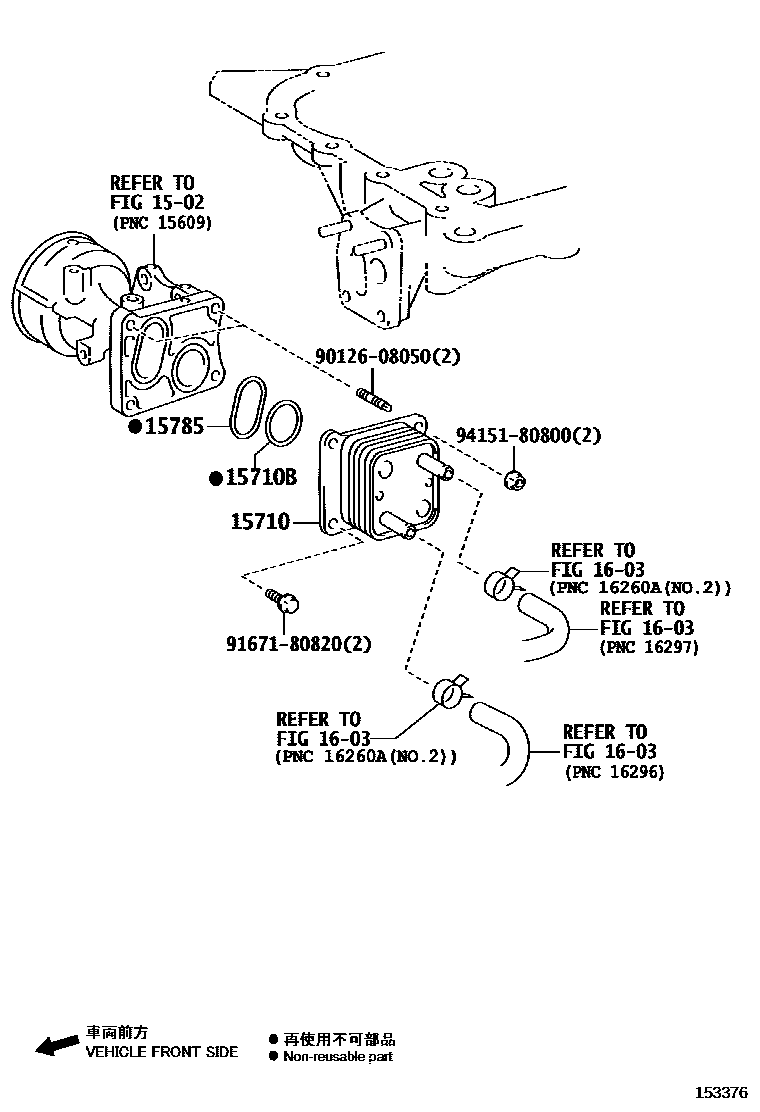

ENGINE OIL COOLER

0001 1 0002 1

1502OIL FILTER

→ Go to FIG 15-02

15710COOLER ASSY, OIL

main15700-38050i2URGSE..URZ100201703

main15710-31080i8GRFXS..GWZ100..LHD201703

15710BRING, O(FOR OIL COOLER)

main15785-31050i8GRFXS..GWZ100..LHD201806

main90301-67004i2URGSE..URZ100201703

main96723-35035i8GRFXS..GWZ100..LHD201703-201805

15785GASKET, OIL COOLER

main15785-31030i8GRFXS..GWZ100..LHD201703-201805

main15785-31060i8GRFXS..GWZ100..LHD201806

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

9012608050

main90126-08050

9167180820

main91671-80820

9415180800

main94151-80800

8 parts on this diagram · 2 diagrams in section
