ABS & VSC
8401SWITCH & RELAY & COMPUTER
86652ABUZZER ASSY, SKID CONTROL
88263ARELAY, SKID CONTROL
89183ASENSOR, YAWRATE
ANTI-THEFT SYSTEM-WITH
ANTI-THEFT SYSTEM-WITH; ANTI-THEFT SYSTEM-WITH(SENSOR+SIREN); ANTI-THEFT SYSTEM-WITH(SIREN)
89510DSENSOR ASSY, BRAKE PEDAL STROKE
89516CWIRE, SKID CONTROL SENSOR, RH
89516DWIRE, SKID CONTROL SENSOR, LH
89540COMPUTER ASSY, SKID CONTROL
GCC SPEC
GCC SPEC
HONG KONG SPEC; SINGAPORE SPEC
FORMOSA SPEC
AUSTRALIA SPEC; NEW ZEALAND SPEC
BEIJING SPEC; CHINA(EXCEPT BEIJING) SPEC; RUSSIA SPEC
HONG KONG SPEC; SINGAPORE SPEC
HONG KONG SPEC; SINGAPORE SPEC
FORMOSA SPEC
FORMOSA SPEC
AUSTRALIA SPEC; NEW ZEALAND SPEC
AUSTRALIA SPEC; NEW ZEALAND SPEC
BEIJING SPEC; CHINA(EXCEPT BEIJING) SPEC; RUSSIA SPEC
BEIJING SPEC; CHINA(EXCEPT BEIJING) SPEC; RUSSIA SPEC
HONG KONG SPEC
HONG KONG SPEC
89542SENSOR, SPEED, FRONT RH
89543SENSOR, SPEED, FRONT LH
89545SENSOR, SPEED, REAR RH
89546SENSOR, SPEED, REAR LH
89549BRACKET, SKID CONTROL COMPUTER
89680SUPPLY ASSY, BRAKE CONTROL POWER
89686BRACKET, BRAKE CONTROL POWER SUPPLY, NO.1
89686ABRACKET, BRAKE CONTROL POWER SUPPLY, NO.1
9010506298
main90105-06298
9011906779
main90119-06779
9011906833
main90119-06833
9017906264
main90179-06264
9017906274
main90179-06274
9155180610
main91551-80610
91551A0616
main91551-A0616
91553A0612
main91553-A0612
91631B0616
main91631-B0616
9167180610
main91671-80610

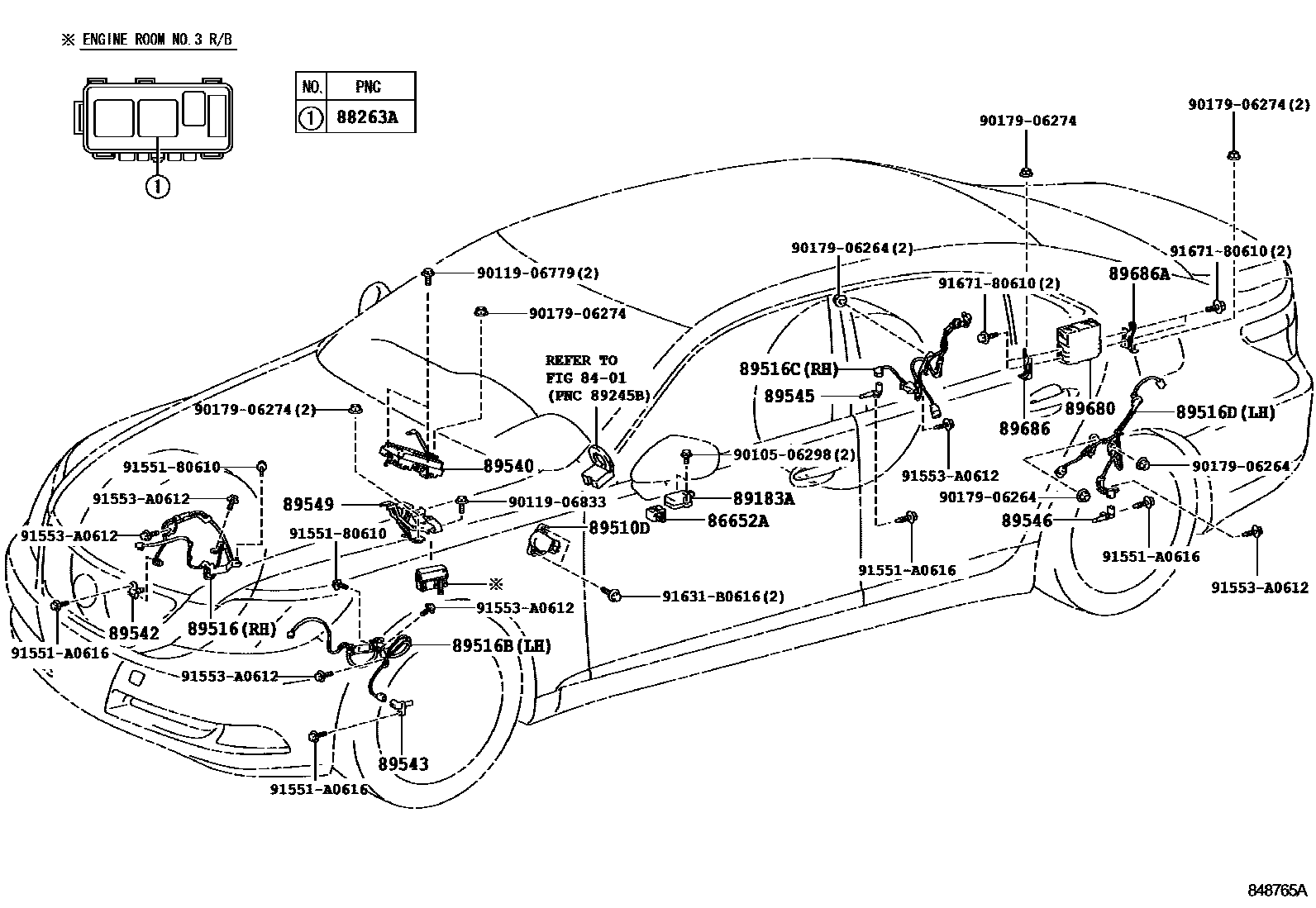

28 parts on this diagram · 4 diagrams in section
