8401SWITCH & RELAY & COMPUTER

8601RADIO RECEIVER & AMPLIFIER & CONDENSER

→ Go to FIG 86-01

8604ANTENNA

→ Go to FIG 86-04

86111MULTI-DISPLAY

main86111-50250i201710-202010

DENSO

main86111-50290i201710-202010

DENSO

main86111-50360i202010-202210

DENSO

main86111-50380i202011-202210

DENSO

main86111-50400i202210

DENSO TEN

main86111-50420i202210-202509

DENSO TEN

main86111-50280i201712-202010

DENSO,SOUTH AFRICA SPEC; DENSO,SOUTH AFRICA SPEC&"F SPORT"*(F)

main86111-50310i201909-202010

DENSO,"EXECUTIVE"*(E)&30TH ANNIVERSARIES

main86111-50320i201909-202010

DENSO,SOUTH AFRICA SPEC&"EXECUTIVE"*(E)&30TH ANNIVERSARIES

main86111-50330i201909-202010

DENSO,"EXECUTIVE"*(E)&30TH ANNIVERSARIES

main86111-50390i202011-202210

DENSO,SOUTH AFRICA SPEC; DENSO,SOUTH AFRICA SPEC&"F SPORT"*(F)

86271DISC, DISC PLAYER

main86807-11010supersedes 86807-11014i201710-201807

ARGENTINA SPEC; CHILE SPEC&EMV & NAVIGATION SYSTEM-WITHOUT; MIDDLE & SOUTH AMERICA SPEC&EMV & NAVIGATION SYSTEM-WITHOUT

main86807-11011i201808-201907

ARGENTINA SPEC; CHILE SPEC&EMV & NAVIGATION SYSTEM-WITHOUT; EL SALVADOR SPEC&EMV & NAVIGATION SYSTEM-WITHOUT; MIDDLE & SOUTH AMERICA SPEC&EMV & NAVIGATION SYSTEM-WITHOUT

main86807-11012i201908-202006

ARGENTINA SPEC; CHILE SPEC&EMV & NAVIGATION SYSTEM-WITHOUT; EL SALVADOR SPEC&EMV & NAVIGATION SYSTEM-WITHOUT; MIDDLE & SOUTH AMERICA SPEC&EMV & NAVIGATION SYSTEM-WITHOUT

main86807-11013i202007-202010

ARGENTINA SPEC; CHILE SPEC&EMV & NAVIGATION SYSTEM-WITHOUT; EL SALVADOR SPEC&EMV & NAVIGATION SYSTEM-WITHOUT; MIDDLE & SOUTH AMERICA SPEC&EMV & NAVIGATION SYSTEM-WITHOUT

main86807-11014i202107-202208

main86807-11015i202208-202210

PHILIPPINE SPEC&EMV & NAVIGATION SYSTEM-WITH; VIETNAM SPEC&EMV & NAVIGATION SYSTEM-WITH

main86807-11036i202208-202210

main86807-0W230i202210-202308

MAP DISC(DOP)-WITH(CHINA)

main86807-0W260i201711-201804

MAP DISC(DOP)-WITH(CHINA)

main86807-0W261i201805-201809

MAP DISC(DOP)-WITH(CHINA)

main86807-0W262i201810-201904

MAP DISC(DOP)-WITH(CHINA)

main86807-0W263i201905-201909

MAP DISC(DOP)-WITH(CHINA)

main86807-0W264i201910-202004

MAP DISC(DOP)-WITH(CHINA)

main86807-0W265i202005-202009

MAP DISC(DOP)-WITH(CHINA)

main86807-0W266i202011-202104

MAP DISC(DOP)-WITH(CHINA)

main86807-0W267i202105-202109

MAP DISC(DOP)-WITH(CHINA)

main86807-0W268i202110-202204

MAP DISC(DOP)-WITH(CHINA)

main86807-0W269i202205-202210

MAP DISC(DOP)-WITH(CHINA)

main86807-11020i201710-201808

TAIWAN SPEC

main86807-11021i201809-201908

TAIWAN SPEC

main86807-11022i201909-202008

TAIWAN SPEC

main86807-11023i202009-202010

TAIWAN SPEC

main86807-11024i202109-202111

TAIWAN SPEC

main86807-11025i202209-202210

TAIWAN SPEC&EMV & NAVIGATION SYSTEM-WITH

main86807-11030i201710-201712

EMV & NAVIGATION SYSTEM-WITHOUT

main86807-11031supersedes 86807-11035i201801-201807

EMV & NAVIGATION SYSTEM-WITHOUT

main86807-11032supersedes 86807-11035i201808-201907

EMV & NAVIGATION SYSTEM-WITHOUT

main86807-11033supersedes 86807-11035i201908-202006

EMV & NAVIGATION SYSTEM-WITHOUT

main86807-11034supersedes 86807-11035i202007-202010

EMV & NAVIGATION SYSTEM-WITHOUT

main86807-11040i201710-201809

AUSTRALIA OR NEW ZEALAND SPEC

main86807-11041i201810-201909

AUSTRALIA OR NEW ZEALAND SPEC

main86807-11042i201910-202009

AUSTRALIA OR NEW ZEALAND SPEC

main86807-11043i202011-202109

AUSTRALIA OR NEW ZEALAND SPEC

main86807-11044i202110-202209

AUSTRALIA OR NEW ZEALAND SPEC

main86807-11045i202209-202210

AUSTRALIA OR NEW ZEALAND SPEC

main86807-11050i201710-201809

HONG KONG OR MACAU SPEC

main86807-11051i201810-201909

HONG KONG OR MACAU SPEC

main86807-11052i201910-202009

HONG KONG OR MACAU SPEC

main86807-11053i202011-202109

HONG KONG OR MACAU SPEC

main86807-11054i202110-202210

HONG KONG OR MACAU SPEC

main86807-11060i201712-201801

SOUTH AFRICA SPEC

main86807-11061i201801-201807

SOUTH AFRICA SPEC

main86807-11062i201808-201907

SOUTH AFRICA SPEC

main86807-11063i201909-202006

SOUTH AFRICA SPEC

main86807-11064i202011-202106

SOUTH AFRICA SPEC

main86807-11065i202107-202208

SOUTH AFRICA SPEC

main86807-11066i202208-202210

SOUTH AFRICA SPEC

main86807-11070supersedes 86807-11014i201710-201807

BRAZIL SPEC; MIDDLE & SOUTH AMERICA SPEC

main86807-11071i201808-201907

BRAZIL SPEC; MIDDLE & SOUTH AMERICA SPEC

main86807-11072supersedes 86807-11014i201908-202006

BRAZIL SPEC; MIDDLE & SOUTH AMERICA SPEC

main86807-11073supersedes 86807-11014i202011-202106

BRAZIL SPEC; COSTARICA,GUATEMALA SPEC; MIDDLE & SOUTH AMERICA SPEC

main86807-11074supersedes 86807-11014i202107-202111

BRAZIL SPEC; COSTARICA,GUATEMALA SPEC; MIDDLE & SOUTH AMERICA SPEC

main86807-11075i202208-202210

COSTARICA,GUATEMALA SPEC&EMV & NAVIGATION SYSTEM-WITH; MIDDLE & SOUTH AMERICA SPEC&EMV & NAVIGATION SYSTEM-WITH

main86807-33010i201809-201907

ARGENTINA SPEC

main86807-33011i201908-202006

ARGENTINA SPEC

main86807-33012i202011-202106

ARGENTINA SPEC

main86807-33013i202107-202111

ARGENTINA SPEC

main86807-33014i202208-202210

ARGENTINA SPEC&EMV & NAVIGATION SYSTEM-WITH

86730AMICROPHONE ASSY, TELEPHONE

main86730-11010i201710-202010

main86730-48110i202010-202210

main86730-78010×2i202210-202509

86734MICROPHONE, ACTIVE NOISE CONTROL

main86734-11010×2i201710-202010

main86734-11030×2i202010-202509

86841COMPUTER, NAVIGATION

main86840-11051i201710-201807

main86840-11052i201808-201907

main86840-11053i201908-202006

main86840-11054i202007-202010

main86840-48242i202011-202106

main86840-48243i202107-202208

main86840-48244i202208-202210

PHILIPPINE SPEC&EMV & NAVIGATION SYSTEM-WITH; VIETNAM SPEC&EMV & NAVIGATION SYSTEM-WITH

main86840-50350i201711-202010

main86840-78050i202011-202210

main86840-11061i201710-201711

TAIWAN SPEC

main86840-11062i201712-201808

TAIWAN SPEC

main86840-11063i201809-201908

TAIWAN SPEC

main86840-11064i201909-202008

TAIWAN SPEC

main86840-11065i202009-202010

TAIWAN SPEC

main86840-11091i201710-201809

AUSTRALIA OR NEW ZEALAND SPEC&PRE-COLLISION SYSTEM-LEXUS SAFETY SYSTEM+&CRUISE CONTROL-WITH(*ACC(ALL SPEED RANGE))

main86840-11092i201810-201909

AUSTRALIA OR NEW ZEALAND SPEC&PRE-COLLISION SYSTEM-LEXUS SAFETY SYSTEM+&CRUISE CONTROL-WITH(*ACC(ALL SPEED RANGE)); AUSTRALIA OR NEW ZEALAND SPEC&PRE-COLLISION SYSTEM-LEXUS SAFETY SYSTEM+A&CRUISE CONTROL-WITH(*ACC(ALL SPEED RANGE))

main86840-11093i201910-202010

AUSTRALIA OR NEW ZEALAND SPEC&PRE-COLLISION SYSTEM-LEXUS SAFETY SYSTEM+&CRUISE CONTROL-WITH(*ACC(ALL SPEED RANGE)); AUSTRALIA OR NEW ZEALAND SPEC&PRE-COLLISION SYSTEM-LEXUS SAFETY SYSTEM+A&CRUISE CONTROL-WITH(*ACC(ALL SPEED RANGE))

main86840-11111i201710-201809

HONG KONG OR MACAU SPEC

main86840-11112i201810-201909

HONG KONG OR MACAU SPEC

main86840-11113i201910-202010

HONG KONG OR MACAU SPEC

main86840-11121i201712-201807

SOUTH AFRICA SPEC&PRE-COLLISION SYSTEM-LEXUS SAFETY SYSTEM+&CRUISE CONTROL-WITH(*ACC(HIGH SPEED))

main86840-11122i201808-201907

SOUTH AFRICA SPEC&PRE-COLLISION SYSTEM-LEXUS SAFETY SYSTEM+&CRUISE CONTROL-WITH(*ACC(HIGH SPEED))

main86840-11123i201909-202010

SOUTH AFRICA SPEC&PRE-COLLISION SYSTEM-LEXUS SAFETY SYSTEM+&CRUISE CONTROL-WITH(*ACC(ALL SPEED RANGE))

main86840-11150i201710-202010

CHILE SPEC&EMV & NAVIGATION SYSTEM-WITHOUT; MIDDLE & SOUTH AMERICA SPEC&EMV & NAVIGATION SYSTEM-WITHOUT

main86840-11181i201710-201807

BRAZIL SPEC; MIDDLE & SOUTH AMERICA SPEC

main86840-11182i201808-201907

MIDDLE & SOUTH AMERICA SPEC

main86840-11183i201908-202006

BRAZIL SPEC&PRE-COLLISION SYSTEM-LEXUS SAFETY SYSTEM+&CRUISE CONTROL-WITH(*ACC(HIGH SPEED)); MIDDLE & SOUTH AMERICA SPEC

main86840-11184i202007-202010

BRAZIL SPEC&PRE-COLLISION SYSTEM-LEXUS SAFETY SYSTEM+&CRUISE CONTROL-WITH(*ACC(HIGH SPEED)); MIDDLE & SOUTH AMERICA SPEC

main86840-11190i202011-202111

CHILE SPEC&EMV & NAVIGATION SYSTEM-WITHOUT; COSTARICA,GUATEMALA SPEC&EMV & NAVIGATION SYSTEM-WITHOUT; EL SALVADOR SPEC&EMV & NAVIGATION SYSTEM-WITHOUT; HONDURAS SPEC&EMV & NAVIGATION SYSTEM-WITHOUT; MIDDLE & SOUTH AMERICA SPEC&EMV & NAVIGATION SYSTEM-WITHOUT; NICARAGUA,ARUBA,CURACAO SPEC&EMV & NAVIGATION SYSTEM-WITHOUT

main86840-24070i201809-201907

ARGENTINA SPEC&PRE-COLLISION SYSTEM-LEXUS SAFETY SYSTEM+&CRUISE CONTROL-WITH(*ACC(HIGH SPEED))

main86840-24071i201909-202010

ARGENTINA SPEC&PRE-COLLISION SYSTEM-LEXUS SAFETY SYSTEM+&CRUISE CONTROL-WITH(*ACC(ALL SPEED RANGE))

main86840-48200supersedes 86840-48194i202010-202210

EMV & NAVIGATION SYSTEM-WITHOUT

main86840-48212i202011-202106

BRAZIL SPEC&LEXUS SAFETY SYSTEM+; COSTARICA,GUATEMALA SPEC; MIDDLE & SOUTH AMERICA SPEC

main86840-48213i202107-202111

BRAZIL SPEC&LEXUS SAFETY SYSTEM+; COSTARICA,GUATEMALA SPEC; MIDDLE & SOUTH AMERICA SPEC

main86840-48214i202208-202210

COSTARICA,GUATEMALA SPEC&EMV & NAVIGATION SYSTEM-WITH; MIDDLE & SOUTH AMERICA SPEC&EMV & NAVIGATION SYSTEM-WITH

main86840-48222i202011-202109

AUSTRALIA OR NEW ZEALAND SPEC&LEXUS SAFETY SYSTEM+A

main86840-48223i202110-202210

AUSTRALIA OR NEW ZEALAND SPEC&LEXUS SAFETY SYSTEM+A

main86840-48252i202011-202109

HONG KONG OR MACAU SPEC

main86840-48253i202110-202210

HONG KONG OR MACAU SPEC

main86840-48262i202011-202108

TAIWAN SPEC

main86840-48263i202109-202111

TAIWAN SPEC

main86840-48264i202209-202210

TAIWAN SPEC&EMV & NAVIGATION SYSTEM-WITH

main86840-48272i202011-202106

SOUTH AFRICA SPEC&LEXUS SAFETY SYSTEM+

main86840-48273i202107-202208

SOUTH AFRICA SPEC&LEXUS SAFETY SYSTEM+

main86840-48274i202208-202210

SOUTH AFRICA SPEC&LEXUS SAFETY SYSTEM+

main86840-48282i202011-202106

ARGENTINA SPEC&LEXUS SAFETY SYSTEM+

main86840-48283i202107-202111

ARGENTINA SPEC&LEXUS SAFETY SYSTEM+

main86840-48284i202208-202210

ARGENTINA SPEC&LEXUS SAFETY SYSTEM+&EMV & NAVIGATION SYSTEM-WITH

main86840-50170supersedes 86840-48194i201710-202010

EMV & NAVIGATION SYSTEM-WITHOUT

86842WIRE, NAVIGATION, NO.1

main86842-50J00i201710-202010

86848ACARD, SERIAL NUMBER MAP UPDATE

main86848-33070supersedes 86848-78080i201710-202010

ARGENTINA SPEC; CHILE SPEC&EMV & NAVIGATION SYSTEM-WITHOUT; MIDDLE & SOUTH AMERICA SPEC&EMV & NAVIGATION SYSTEM-WITHOUT

main86848-78080i202410-202509

main86848-33010supersedes 86848-78070i202111-202210

ARGENTINA SPEC&EMV & NAVIGATION SYSTEM-WITH

main86848-33020supersedes 86848-33070i201710-202010

BRAZIL SPEC; MIDDLE & SOUTH AMERICA SPEC

main86848-33030i201710-202010

HONG KONG OR MACAU SPEC

main86848-33040supersedes 86848-78030i202011-202210

AUSTRALIA OR NEW ZEALAND SPEC

main86848-33050supersedes 86848-78070i202111-202210

TAIWAN SPEC&EMV & NAVIGATION SYSTEM-WITH

main86848-33060supersedes 86848-78050i201710-202010

EMV & NAVIGATION SYSTEM-WITHOUT

main86848-33080supersedes 86848-78030i202011-202210

SOUTH AFRICA SPEC

main86848-78020i202410

HONG KONG OR MACAU SPEC

main86848-78040supersedes 86848-78070i202410

TAIWAN SPEC

main86848-78060supersedes 86848-78070i202410

ARGENTINA SPEC&EMV & NAVIGATION SYSTEM-WITH(ARGENTINA); MIDDLE & SOUTH AMERICA SPEC&EMV & NAVIGATION SYSTEM-WITH(ARGENTINA)

main86848-78070supersedes 86848-78080i202410

COSTARICA,GUATEMALA SPEC; EL SALVADOR SPEC&EMV & NAVIGATION SYSTEM-WITHOUT; HONDURAS SPEC&EMV & NAVIGATION SYSTEM-WITHOUT; MIDDLE & SOUTH AMERICA SPEC; NICARAGUA,ARUBA,CURACAO SPEC&EMV & NAVIGATION SYSTEM-WITHOUT

86860ANTENNA ASSY, NAVIGATION

main86860-78010i201710-202010

BRAZIL SPEC

main86880-52020i202011

86862BRACKET, NAVIGATION ANTENNA

main86862-50070i202010-202509

9015350015

main90153-50015

9167380625

main91673-80625

9356855014

main93568-55014

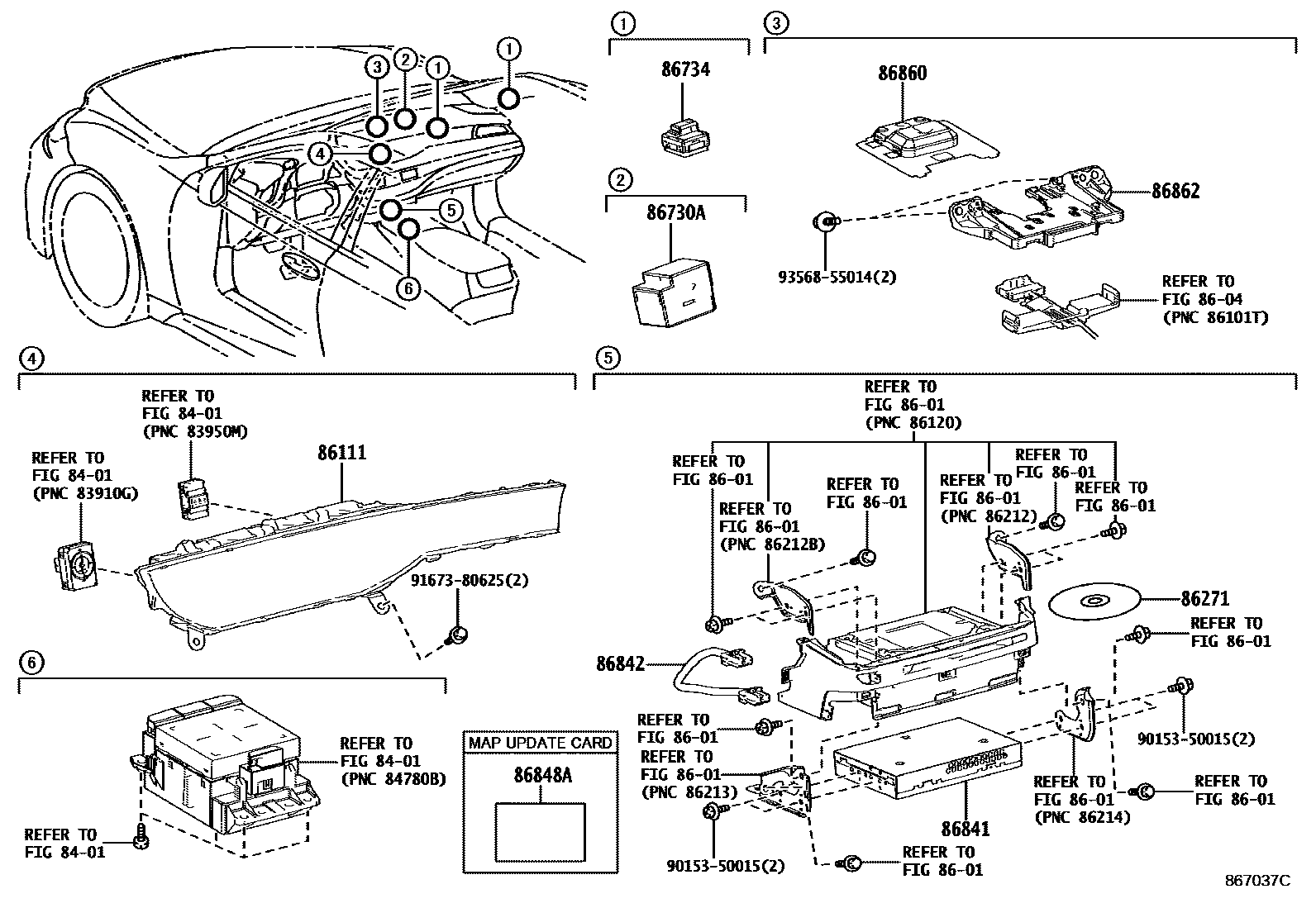

NAVIGATION & FRONT MONITOR DISPLAY
