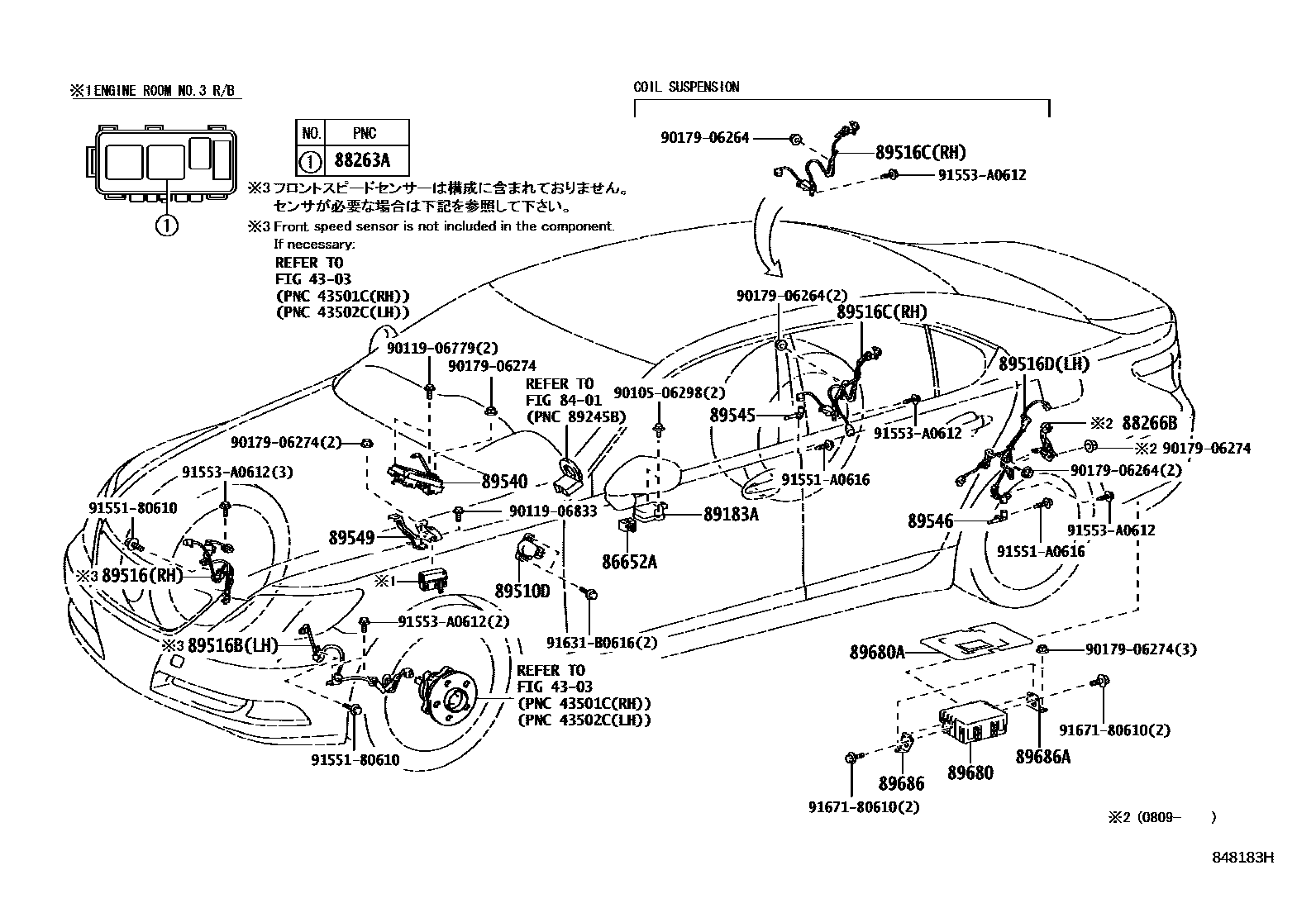

ABS & VSC
4303FRONT AXLE HUB
8401SWITCH & RELAY & COMPUTER
86652ABUZZER ASSY, SKID CONTROL
88263ARELAY, SKID CONTROL
88266BCLAMP, SKID CONTROL SENSOR, NO.1
89183ASENSOR, YAWRATE
ANTI-THEFT SYSTEM-WITH; ANTI-THEFT SYSTEM-WITH(SIREN); ANTI-THEFT SYSTEM-WITH(SIREN)&SUSPENSION-COIL SPRING
main89183-48020supersedes 89183-50030iUSF40,45..D4; USF40,45..LHD..D4; USF40..LHD..D4; USF41,46;USF40..HTWC200906-200909
ANTI-THEFT SYSTEM-WITH; ANTI-THEFT SYSTEM-WITH(SIREN); ANTI-THEFT SYSTEM-WITH(SIREN)&WITH(ELECTRIC POWER STEERING)&SUSPENSION-COIL SPRING
MALAYSIA SPEC; SINGAPORE SPEC; THAILAND SPEC
89510DSENSOR ASSY, BRAKE PEDAL STROKE
89516WIRE, SKID CONTROL SENSOR
89516BWIRE, SKID CONTROL SENSOR
89516CWIRE, SKID CONTROL SENSOR, RH
ISRAEL SPEC; SUSPENSION-COIL SPRING
SUSPENSION-COIL SPRING
FORMOSA SPEC; RUSSIA SPEC; SUSPENSION-SPORT AIR SUSPENTION
SUSPENSION-COIL SPRING
main89516-50060supersedes 89516-50180iUSF4#..HTWC..EUR; USF40..D4; USF41..LHD..D4; USF41..RHD200608-200809
FORMOSA SPEC; HONG KONG SPEC; RUSSIA SPEC; SUSPENSION-SPORT AIR SUSPENTION
89516DWIRE, SKID CONTROL SENSOR, LH
89540COMPUTER ASSY, SKID CONTROL
AUSTRALIA SPEC; NEW ZEALAND SPEC; SOUTH AFRICA SPEC; THAILAND SPEC
ISRAEL SPEC; RUSSIA SPEC
FORMOSA SPEC; ISRAEL SPEC; RUSSIA SPEC
FORMOSA SPEC; ISRAEL SPEC; RUSSIA SPEC
AUSTRALIA SPEC; HONG KONG SPEC; NEW ZEALAND SPEC; SINGAPORE SPEC; SOUTH AFRICA SPEC; THAILAND SPEC
AUSTRALIA SPEC; HONG KONG SPEC; NEW ZEALAND SPEC; SINGAPORE SPEC; SOUTH AFRICA SPEC; THAILAND SPEC
RUSSIA SPEC
RUSSIA SPEC
HONG KONG SPEC; SINGAPORE SPEC
FORMOSA SPEC
MALAYSIA SPEC
MALAYSIA SPEC
AUSTRALIA SPEC; NEW ZEALAND SPEC
AUSTRALIA SPEC; NEW ZEALAND SPEC
HONG KONG SPEC
HONG KONG SPEC
89545SENSOR, SPEED, REAR RH
89546SENSOR, SPEED, REAR LH
89549BRACKET, SKID CONTROL COMPUTER
89680SUPPLY ASSY, BRAKE CONTROL POWER
89680ACOVER, BRAKE CONTROL POWER SUPPLY
89686BRACKET, BRAKE CONTROL POWER SUPPLY, NO.1
89686ABRACKET, BRAKE CONTROL POWER SUPPLY, NO.1
9010506298
main90105-06298
9011906779
main90119-06779
9011906833
main90119-06833
9017906264
main90179-06264
9017906274
main90179-06274
9155180610
main91551-80610
91551A0616
main91551-A0616
91553A0612
main91553-A0612
91631B0616
main91631-B0616
9167180610
main91671-80610
29 parts on this diagram · 8 diagrams in section
