4103DISC WHEEL & WHEEL CAP

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43550-50040i200608-200711

main43550-50041i200809-200907

main43550-50042i200909-201209

main43550-50061i200909-201209

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02077×5i200608-200712

main90942-02083×5i200712-200809

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001i200809-200909

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43550-50061i200909-201209

main43560-50010i200608-200711

main43560-50011i200809-200907

main43560-50012i200908-200909

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02077×5i200608-200712

main90942-02083×5i200712-200809

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001i200809-200909

43512DISC, FRONT

main43512-50250i200909-201209

RH

main43516-50010i200608-200809

LH

main43512-0W080i200909-201209

AUSTRALIA SPEC&SPORTS GRADE,RH; FORMOSA SPEC&SPORTS GRADE,RH; HONG KONG SPEC&SPORTS GRADE,RH; MALAYSIA SPEC&SPORTS GRADE,RH; NEW ZEALAND SPEC&SPORTS GRADE,RH; SINGAPOLE/BRUNEI SPEC&SPORTS GRADE,RH; SPORTS GRADE,RH; THAILAND/INDONESIA SPEC&SPORTS GRADE,RH

main43512-50240×2i200909-201209

FORMOSA SPEC; HONG KONG SPEC; SINGAPOLE/BRUNEI SPEC

main43516-0W010i200909-201209

AUSTRALIA SPEC&SPORTS GRADE,LH; FORMOSA SPEC&SPORTS GRADE,LH; HONG KONG SPEC&SPORTS GRADE,LH; MALAYSIA SPEC&SPORTS GRADE,LH; NEW ZEALAND SPEC&SPORTS GRADE,LH; SINGAPOLE/BRUNEI SPEC&SPORTS GRADE,LH; SPORTS GRADE,LH; THAILAND/INDONESIA SPEC&SPORTS GRADE,LH

4802FRONT AXLE ARM & STEERING KNUCKLE

→ Go to FIG 48-02

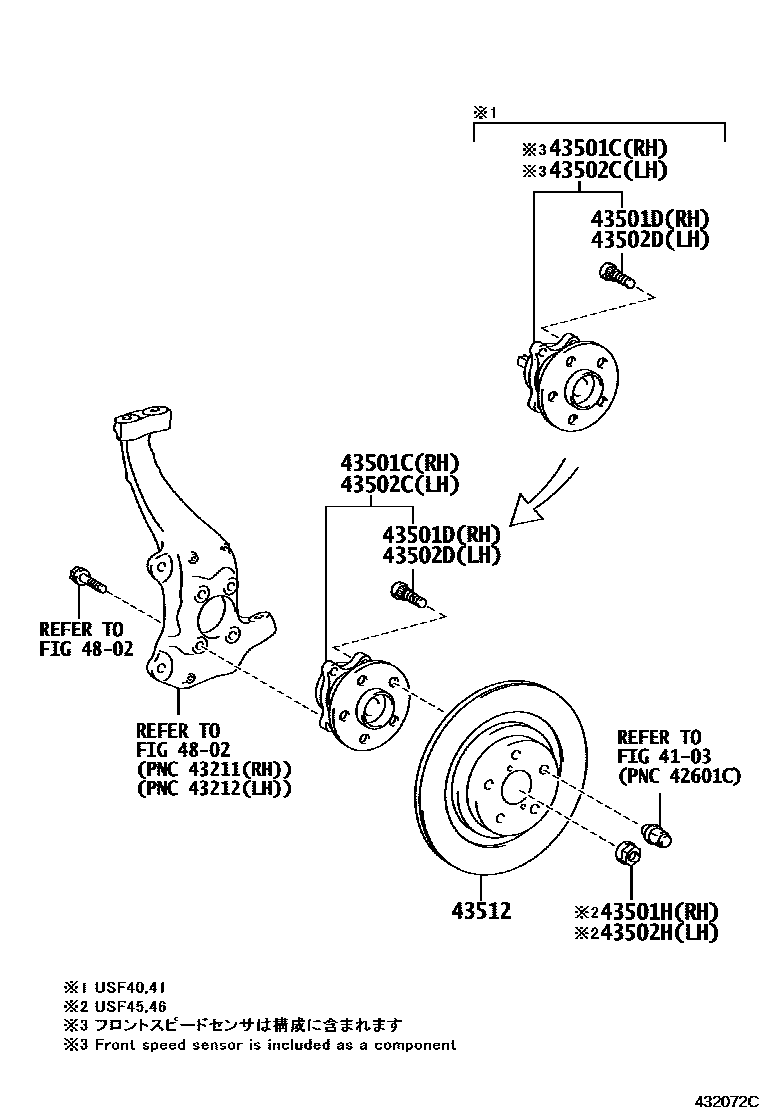

FRONT AXLE HUB
