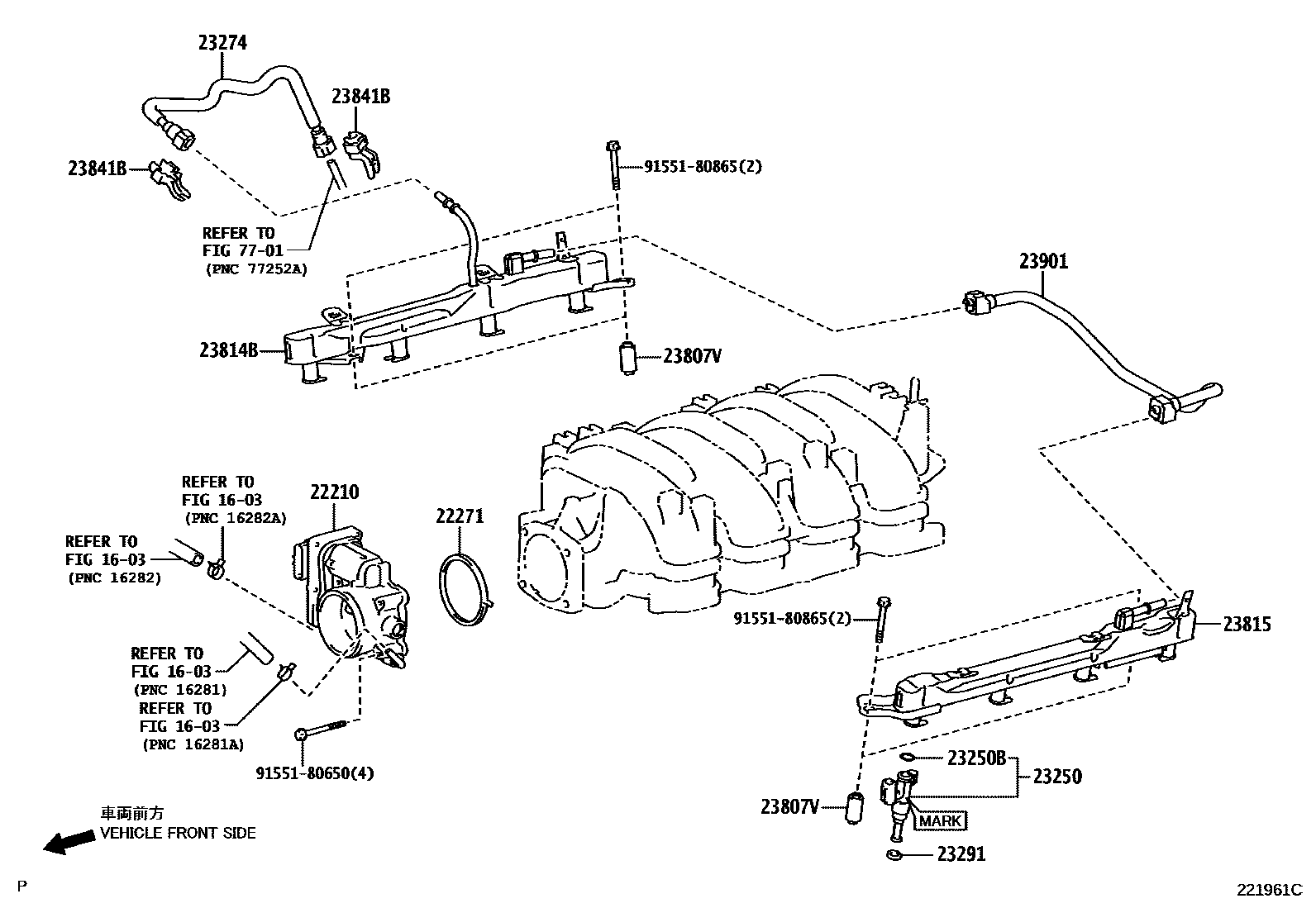

FUEL INJECTION SYSTEM
1603RADIATOR & WATER OUTLET
22210BODY ASSY, THROTTLE
22271GASKET, THROTTLE BODY
23250INJECTOR ASSY, FUEL
MARK23250-38020
MARK23250-38050
23250BRING, O(FOR FUEL INJECTOR)
NO.2
NO.1
23274HOSE, FUEL, NO.3
NO.1
NO.2
NO.1
23291INSULATOR, INJECTOR VIBRATION
23807VSPACER, NO.1(FOR DELIVERY PIPE)
23814BPIPE, FUEL DELIVERY
NO.1
NO.1
NO.2
NO.2
23815PIPE, FUEL DELIVERY, NO.2
23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)
23901TUBE SUB-ASSY, FUEL
7701FUEL TANK & TUBE
9155180650
main91551-80650
9155180865
main91551-80865
15 parts on this diagram · 3 diagrams in section
