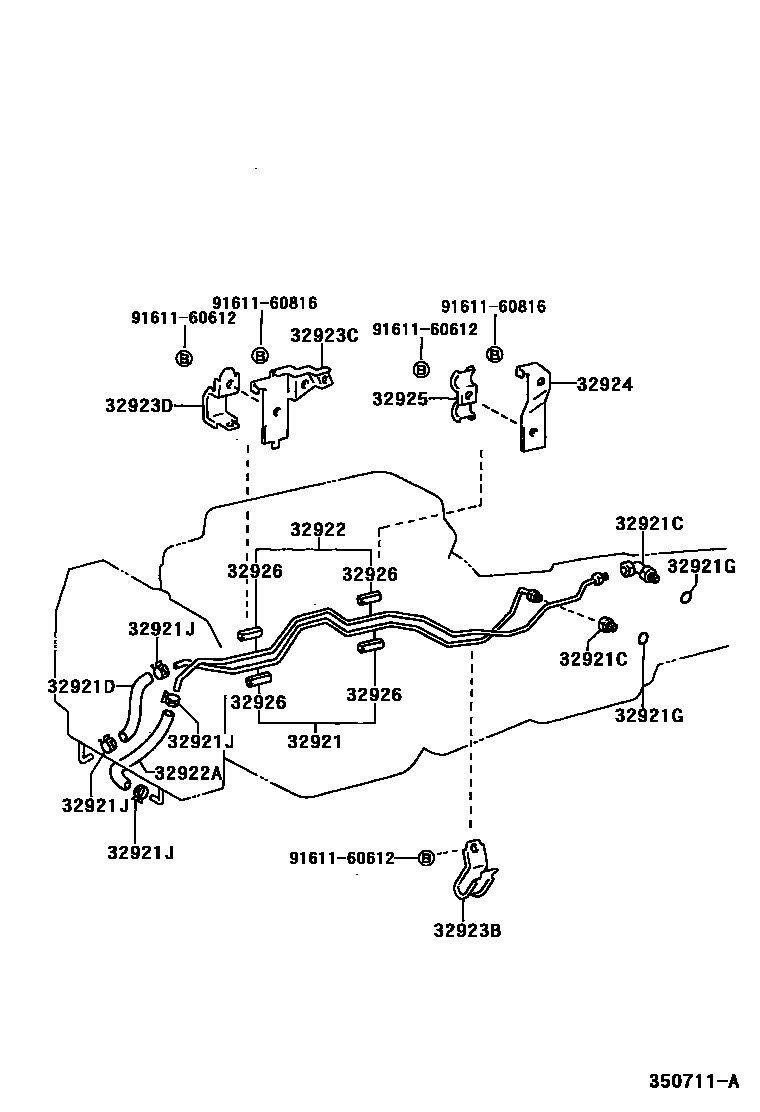

OIL COOLER & TUBE (ATM)

0001 1A341E,A342E,A650E 0002 1TYPE A 0003 1TYPE A 0004 1AIR COOLING OIL COOLER,TYPE B

32921TUBE, OIL COOLER INLET, NO.1

main32921-50060iUCF20199410

32921CUNION(FOR OIL COOLER TUBE)

main90404-16029iUCF20199410-200008

INLET

main90407-16009iUCF20199410-200008

OUTLET

32921DHOSE(FOR OIL COOLER INLET)

main90445-17095iUCF20..V..4FC;UCF20..ARL,EUR,GEN199410-199811

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-11006×2iUCF20199410-200008

32921JCLIP(FOR OIL COOLER HOSE)

main90467-16013×6iUCF20..EUR199410

AIR COOLING OIL COOLER

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-50040iUCF20199410

32922AHOSE(FOR OIL COOLER OUTLET)

main90445-17140iUCF20199410

32923BCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1

main32923-50010iUCF20199410

32923CCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.4

main32924-50020iUCF20199410

32923DCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.5

main32929-50020iUCF20199410

32924CLAMP, OIL COOLER TUBE, NO.2

main32923-50030iUCF20199410

32925CLAMP, OIL COOLER TUBE, NO.3

main90462-12074iUCF20199410

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-30020×4iUCF20199410

L=35,ID=10

9161160612

main91611-60612

9161160816

main91611-60816

15 parts on this diagram · 4 diagrams in section
