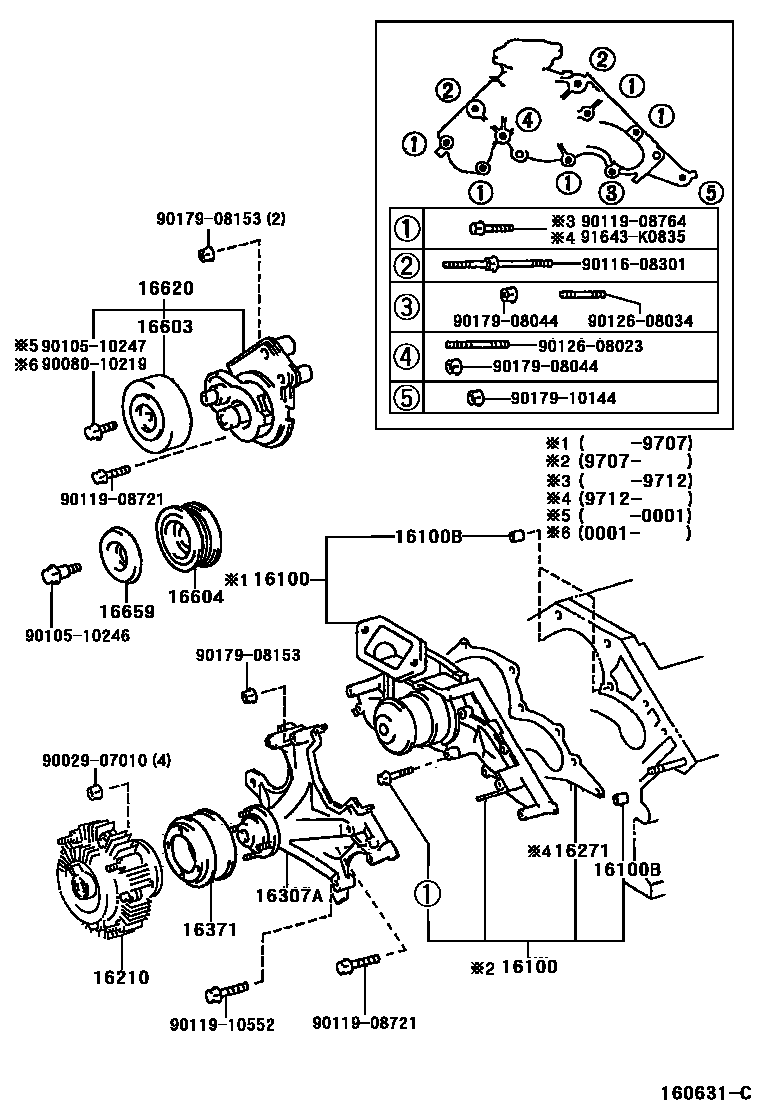

WATER PUMP

16100PUMP ASSY, ENGINE WATER

main16100-50022i1UZFE..UCF20199410-199707

main16100-59275i1UZFE..UCF20199707

16100BPIN, RING(FOR WATER PUMP SET)

main90253-11021×2i1UZFE..UCF20199410

16210COUPLING ASSY, FLUID

main16210-50020i1UZFE..UCF20..ARL,EUR,GEN199410-199810

main16210-50021i1UZFE..UCF20..ARL,EUR,GEN199810

main16210-50040i1UZFE..UCF20..ARL; 1UZFE..UCF20..V199410-199707

W(TOWING PACKAGE)

main16210-50060i1UZFE..UCF20..ARL,V199707-199810

TOWING PACKAGE

main16210-50061i1UZFE..UCF20..ARL,V199810

TOWING PACKAGE

16271GASKET, WATER PUMP

main16271-50010i1UZFE..UCF20199712

16307ABRACKET SUB-ASSY, FAN

main16307-50011i1UZFE..UCF20199410-199707

main16307-50012i1UZFE..UCF20199707

16371PULLEY, FAN

main16371-50020i1UZFE..UCF20199410-199508

main16371-50030i1UZFE..UCF20199508

16603PULLEY SUB-ASSY, IDLER, NO.1

main16603-0W010i1UZFE..UCF20199505-200001

main16603-0W030i1UZFE..UCF20200001

main16603-50010i1UZFE..UCF20199410-199505

16604PULLEY SUB-ASSY, IDLER, NO.2

main16604-50010i1UZFE..UCF20199410-199707

main16604-50030i1UZFE..UCF20199707

16620TENSIONER ASSY, V-RIBBED BELT

main16620-0W030i1UZFE..UCF20199410-199505

main16620-0W031i1UZFE..UCF20199505-199507

main16620-0W032i1UZFE..UCF20199507-199508

main16620-0W033i1UZFE..UCF20199508-199509

main16620-0W034i1UZFE..UCF20199509-199706

main16620-0W035i1UZFE..UCF20199706-199707

main16620-0W036i1UZFE..UCF20199707

16659PLATE, IDLER PULLEY COVER, NO.2

main16659-50020i1UZFE..UCF20199410-199610

main16659-50021i1UZFE..UCF20199610-199712

main16659-50022i1UZFE..UCF20199712

9002907010

main90029-07010

9008010219

main90080-10219

9010510246

main90105-10246

9010510247

main90105-10247

9011608301

main90116-08301

9011908721

main90119-08721

9011908764

main90119-08764

9011910552

main90119-10552

9012608023

main90126-08023

9012608034

main90126-08034

9017908044

main90179-08044

9017908153

main90179-08153

9017910144

main90179-10144

91643K0835

main91643-K0835

24 parts on this diagram · 1 diagram in section
