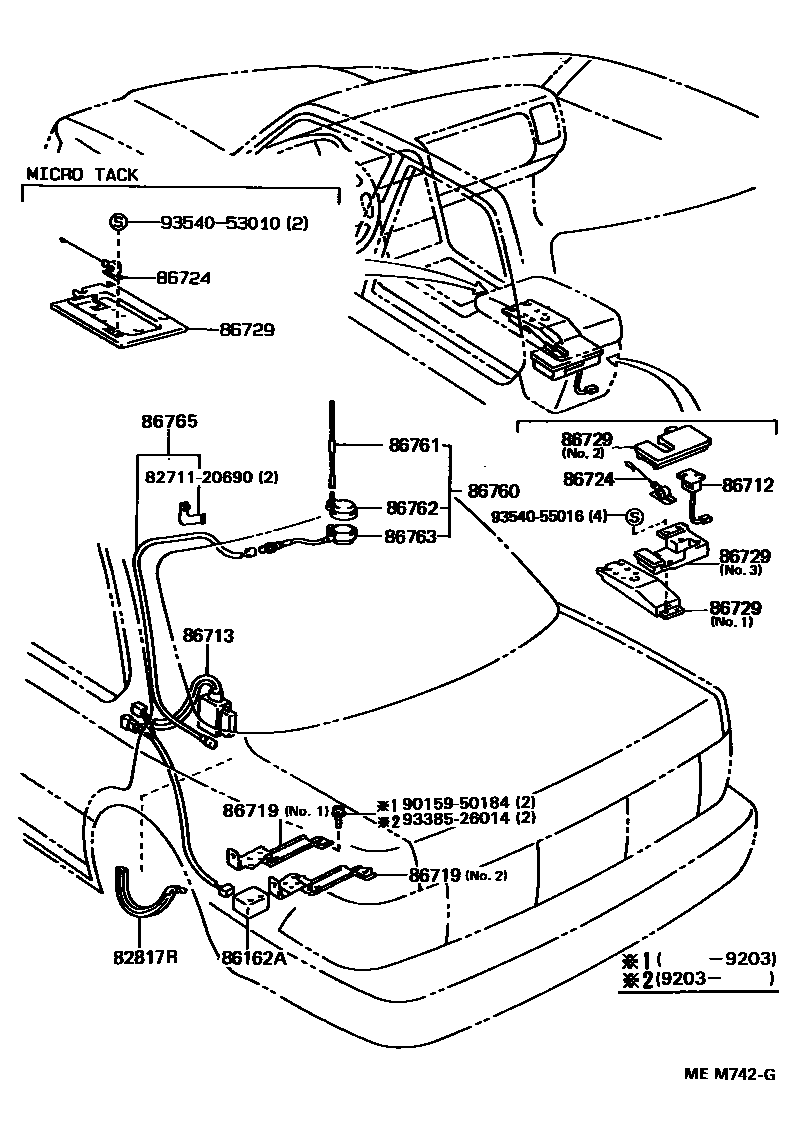

TELEPHONE & MAYDAY
82817RPROTECTOR, WIRING HARNESS, NO.16
86162ARELAY, SPEAKER
86712WIRE, TELEPHONE
86713WIRE, TELEPHONE COMPUTER
86719BRACKET, TELEPHONE
NO.1
NO.2
86724GUIDE, CURL CORD
86729BRACKET, MOBILEPHONE
NO.1
NO.2
NO.3
MICRO TACK
86760ANTENNA ASSY, TELEPHONE
86761ROD, TELEPHONE ANTENNA
86762BASE, TELEPHONE ANTENNA
86763BASE, TELEPHONE ANTENNA, N0.2
86765CODE, TELEPHONE ANTENNA
8271120690WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-20690
9015950184
main90159-50184
9338526014
main93385-26014
9354053010
main93540-53010
9354055016
main93540-55016
17 parts on this diagram · 1 diagram in section
