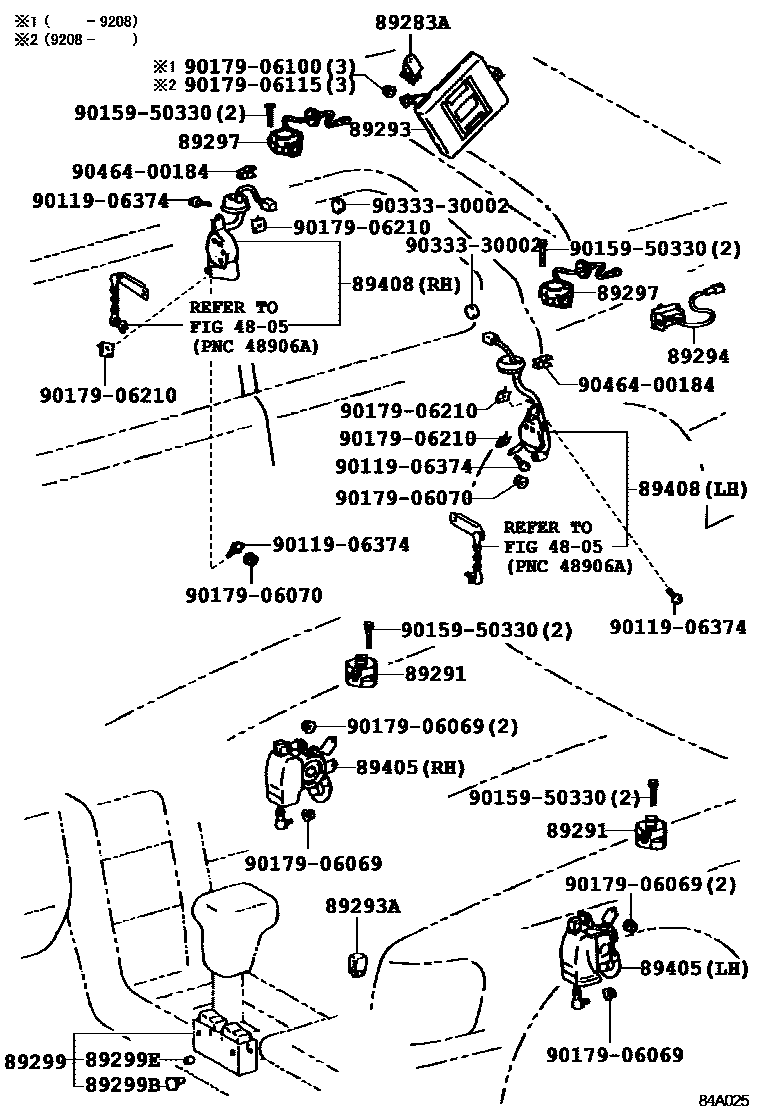

ELECTRONIC MODULATED SUSPENSION

4805HEIGHT CONTROL (AUTO-LEVELER)

→ Go to FIG 48-05

89283ARELAY ASSY

main88630-60020iUCF10..LHD..EUR198912-199410

89291ACTUATOR, SUSPENSION CONTROL, FRONT

main89291-24030iUCF10..LHD..EUR199301-199410

AISIN

main89291-50010iUCF10..EUR198912-199208

main89291-50040iUCF10..LHD..EUR199208-199301

main89291-50040iUCF10..LHD..EUR199301-199410

JECO

89293COMPUTER, SUSPENSION CONTROL

main89293-50040iUCF10..EUR198912-199208

main89293-50050iUCF10..LHD..EUR199208-199410

89293ARELAY, SUSPENSION CONTROL

main90987-02006iUCF10..EUR198912-199410

89294SWITCH, SUSPENSION CONTROL INHIBITION

main89294-24010iUCF10..LHD..EUR199208-199410

main89294-50010iUCF10..EUR198912-199208

89297ACTUATOR, SUSPENSION CONTROL, REAR

main89297-30030iUCF10..LHD..EUR199208-199410

main89297-50020iUCF10..EUR198912-199208

89299SWITCH, SUSPENSION CONTROL

main89299-50010iUCF10..EUR198912-199410

89299BBULB(FOR SUSPENSION CONTROL SWITCH)

main84999-10320iUCF10..LHD..EUR198912-199410

89299ECAP, SUSPENSION CONTROL SWITCH BULB

main84998-10430iUCF10..EUR198912-199410

89405SENSOR SUB-ASSY, HEIGHT CONTROL, FRONT

main89405-50020iUCF10..LHD..EUR198912-199410

RH

main89406-50020iUCF10..EUR198912-199410

LH

89408SENSOR SUB-ASSY, HEIGHT CONTROL, REAR

main89407-50020iUCF10..EUR198912-199208

RH

main89407-50030iUCF10..LHD..EUR199208-199410

RH

main89408-50020iUCF10..EUR198912-199208

LH

main89408-50030iUCF10..LHD..EUR199208-199410

LH

9011906374

main90119-06374

9015950330

main90159-50330

9017906069

main90179-06069

9017906070

main90179-06070

9017906100

main90179-06100

9017906115

main90179-06115

9017906210

main90179-06210

9033330002

main90333-30002

9046400184

main90464-00184

21 parts on this diagram · 1 diagram in section
