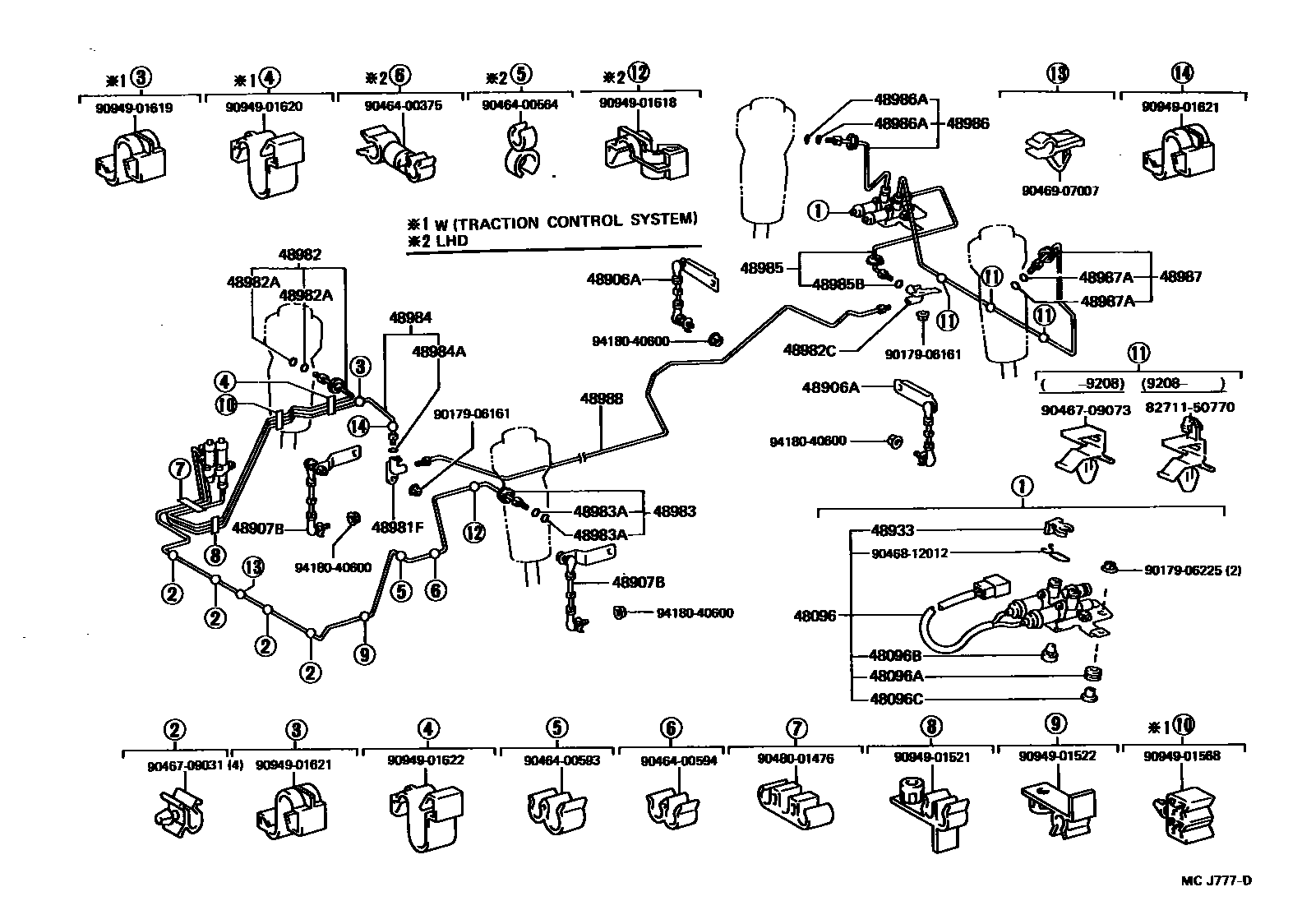

HEIGHT CONTROL (AUTO-LEVELER)

0001 1 0002 1

48096VALVE SUB-ASSY, HEIGHT CONTROL, NO.2

main48096-50010iUCF10..EUR198912-199002

main48096-50011iUCF10..EUR199002-199208

main48096-50021iUCF10..LHD..EUR199210-199410

48096ABUSH, NO.2(FOR HEIGHT CONTROL VALVE)

main90385-08009×2iUCF10..EUR198912-199208

48096BCUSHION, NO.2(FOR HEIGHT CONTROL VALVE)

main90541-03020iUCF10..EUR198912-199208

48096CSPACER, NO.2(FOR HEIGHT CONTROL VALVE)

main90561-06011×2iUCF10..EUR198912-199208

48906ALINK SUB-ASSY, HEIGHT CONTROL SENSOR, REAR

main48906-50010iUCF10..LHD..EUR199208-199410

RH

main48906-50020iUCF10..EUR198912-199208

LH

48907BLINK SUB-ASSY, HEIGHT CONTROL SENSOR, FRONT

main48907-50010iUCF10..EUR198912-199208

RH

main48907-50020iUCF10..EUR198912-199208

LH

main48907-50030iUCF10..LHD..EUR199208-199410

RH

main48907-50040iUCF10..LHD..EUR199208-199410

LH

48933HOLDER, AIR CONNECTOR CLIP

main48933-30010×4iUCF10..EUR198912-199208

48981TUBE, HEIGHT CONTROL, NO.1

main48982-50010iUCF10..EUR198912-199208

48981FWAY, NO.1(FOR HEIGHT CONTROL TUBE)

main90412-12029iUCF10..EUR198912-199208

48982TUBE, HEIGHT CONTROL, NO.2

main48983-50010iUCF10..EUR198912-199208

W(TRACTION CONTROL SYSTEM)

main48983-50020iUCF10..EUR198912-199208

main48983-50030iUCF10..LHD..EUR199208-199410

main48983-50040iUCF10..LHD..EUR199208-199410

W(TRACTION CONTROL SYSTEM)

48982ARING, O(FOR HEIGHT CONTROL TUBE NO.2)

main90301-04004×4iUCF10..EUR198912-199208

48982CWAY, NO.2(FOR HEIGHT CONTROL TUBE)

main90412-12031iUCF10..EUR198912-199208

48983TUBE, HEIGHT CONTROL, NO.3

main48984-50010iUCF10..LHD..EUR198912-199208

main48984-50020iUCF10..RHD..EUR198912-199208

main48984-50030iUCF10..LHD..EUR199208-199410

48983ARING, O(FOR HEIGHT CONTROL TUBE NO.3)

main90301-04004×4iUCF10..LHD..EUR199208-199410

48984TUBE, HEIGHT CONTROL, NO.4

main48985-50020iUCF10..EUR198912-199208

W(TRACTION CONTROL SYSTEM)

main48985-50030iUCF10..EUR198912-199208

48984ARING, O(FOR HEIGHT CONTROL TUBE NO.4)

main90301-04006×2iUCF10..LHD..EUR199208-199410

48985TUBE, HEIGHT CONTROL, NO.5

main48985-50010iUCF10..EUR198912-199208

48985BRING, O(FOR HEIGHT CONTROL TUBE NO.5)

main90301-04006×2iUCF10..EUR198912-199208

48986TUBE, HEIGHT CONTROL, NO.6

main48986-50010iUCF10..EUR198912-199208

main48986-50020iUCF10..LHD..EUR199208-199410

W(TRACTION CONTROL SYSTEM)

48986ARING, O(FOR HEIGHT CONTROL NO.6 TUBE)

main90301-04004×4iUCF10..EUR198912-199208

48987TUBE, HEIGHT CONTROL, NO.7

main48987-50010iUCF10..EUR198912-199208

48987ARING, O(FOR HEIGHT CONTROL NO.7 TUBE)

main90301-04004×4iUCF10..EUR198912-199208

48988TUBE, HEIGHT CONTROL, NO.8

main48988-50010iUCF10..EUR198912-199208

8271150770WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-50770

9017906161

main90179-06161

9017906225

main90179-06225

9046400375

main90464-00375

9046400564

main90464-00564

9046400593

main90464-00593

9046400594

main90464-00594

9046709031

main90467-09031

9046709073

main90467-09073

9046812012

main90468-12012

9046907007

main90469-07007

9048001476

main90480-01476

9094901521

main90949-01521

9094901522

main90949-01522

9094901568

main90949-01568

9094901618

main90949-01618

9094901619

main90949-01619

9094901620

main90949-01620

9094901621

main90949-01621

9094901622

main90949-01622

9418040600

main94180-40600

44 parts on this diagram · 2 diagrams in section
