OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

82125BWIRE, TRANSMISSION

main82125-33010iMCX10200004-200309

84722SWITCH, TRANSMISSION CONTROL

main84722-33050-B0iMCX10200004-200309

DK. STONE,TRIM1#

main84722-33050-E1iMCX10200004-200309

SANDAL WOOD,TRIM4#

main84722-41050-B0iMCX10..CONQ,CSX; MCX10..GD,VXI200309-200506

DK. STONE,TRIM1#

main84722-41050-C0iMCX10..CONQ,CSX200309-200506

BLACK,TRIM1#

main84722-41050-E0iMCX10..GD,VXI200309-200506

SANDAL WOOD,TRIM4#

85420SOLENOID ASSY, TRANSMISSION

main85420-33010iMCX10200004-200309

85420DRING, O (FOR TRANSMISSION SOLENOID)

main90301-06004×2iMCX10200004-200309

89411CSENSOR, SPEED

main89411-33010iMCX10200004-200309

TOYOTA

main89413-24010iMCX10200004-200309

AISIN

8271533160BRACKET,WIRING HARNESS CLAMP

main82715-33160

8271533170BRACKET,WIRING HARNESS CLAMP

main82715-33170

8282133050RETAINER, HEADLAMP HARNESS

main82821-33050

9010505004

main90105-05004

9030111008

main90301-11008

9030121009

main90301-21009

9161160620

main91611-60620

91611G0820

main91611-G0820

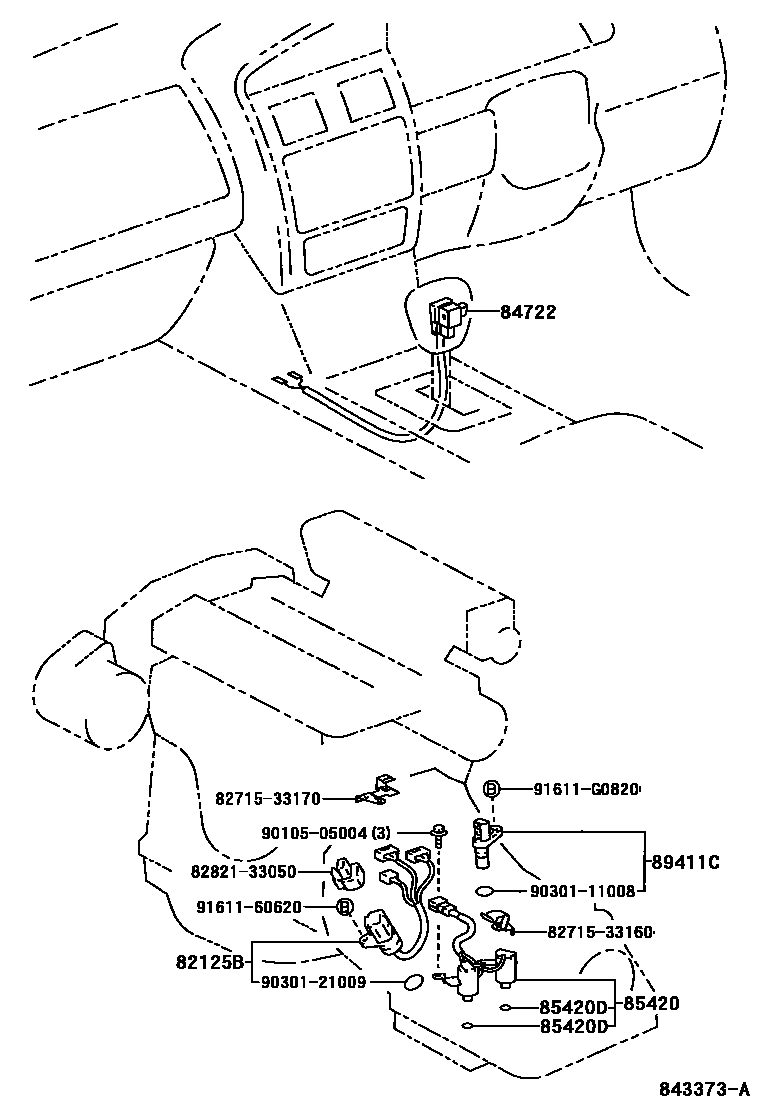

13 parts on this diagram · 1 diagram in section
