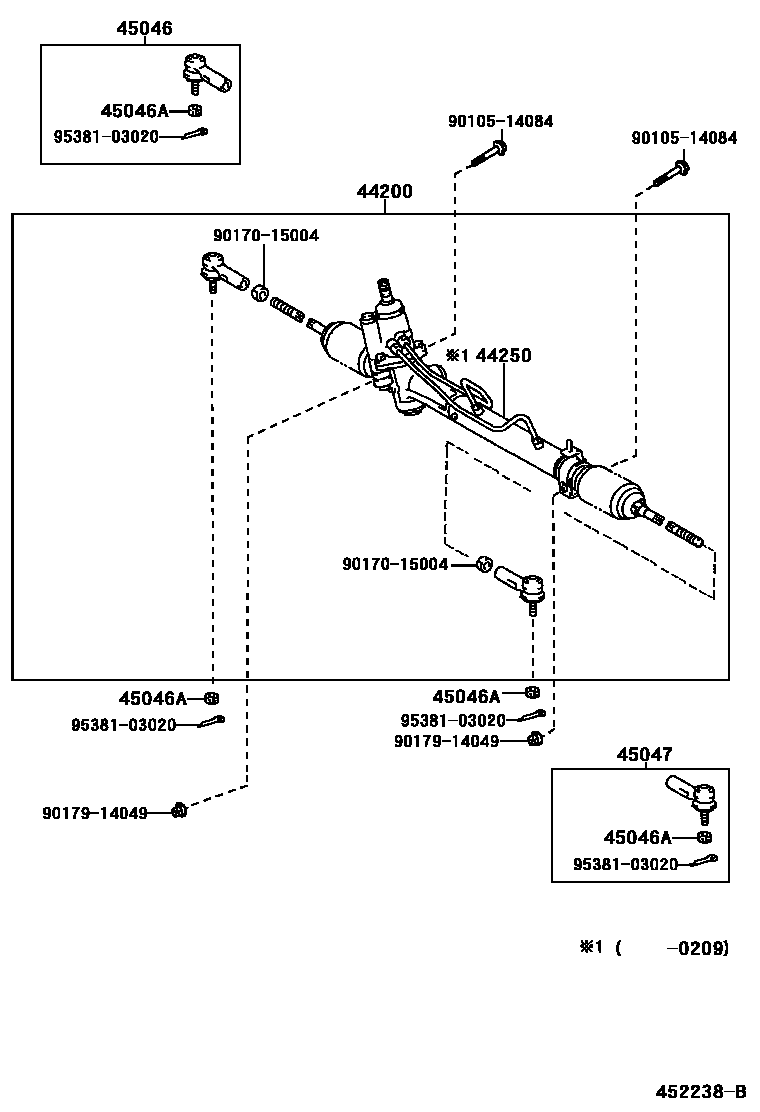

FRONT STEERING GEAR & LINK

0001 1 0002 1 0003 1

44200LINK ASSY, POWER STEERING

main44200-41011iMCX10200004-200309

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-06210iMCX10200309

main44250-41011iMCX10200004-200209

45046END SUB-ASSY, TIE ROD, RH

main45046-29255iMCX10200004-200309

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028×2iMCX10200004-200309

45047END SUB-ASSY, TIE ROD, LH

main45046-29255iMCX10200004-200309

9010514084

main90105-14084

9017015004

main90170-15004

9017914049

main90179-14049

9538103020

main95381-03020

9 parts on this diagram · 3 diagrams in section
