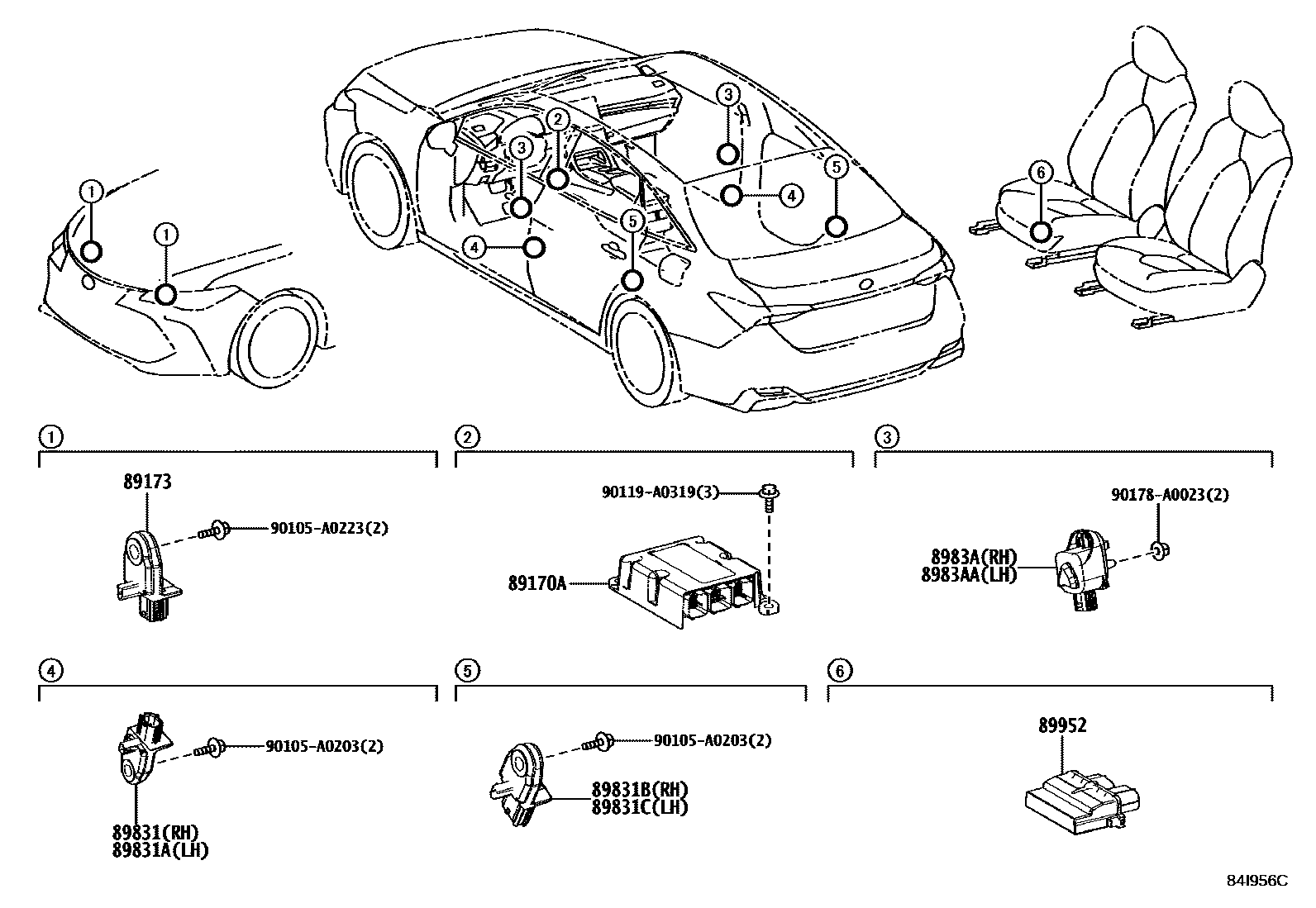

AIR BAG

89170ACOMPUTER ASSY, AIRBAG

main89170-07390iGSX50201806-201809

main89170-07391iGSX50201810-202008

main89170-07470iGSX50201809-201810

89173SENSOR, AIRBAG, FRONT

main89173-09C90iGSX50201806-202008

89831SENSOR, SIDE AIRBAG, RH, NO.1

main89831-07080iGSX50201806-202008

89831ASENSOR, SIDE AIRBAG, LH, NO.1

main89831-07080iGSX50201806-202008

89831BSENSOR, SIDE AIRBAG, RH, NO.2

main89831-07090iGSX50201806-202008

89831CSENSOR, SIDE AIRBAG, LH, NO.2

main89831-07090iGSX50201806-202008

8983ASENSOR, SIDE AIRBAG PRESSURE, RH

main8983A-07011iGSX50201806-202004

main8983A-07012iGSX50202005-202008

8983AASENSOR, SIDE AIRBAG PRESSURE, LH

main8983A-07011iGSX50201806-202004

main8983A-07012iGSX50202008

89952COMPUTER, OCCUPANT DETECTION

main89952-06050iGSX50..LIMD201806-202008

main89952-07020iGSX50..XLE201806-202008

90105A0203

main90105-A0203

90105A0223

main90105-A0223

90119A0319

main90119-A0319

90178A0023

main90178-A0023

13 parts on this diagram · 1 diagram in section
