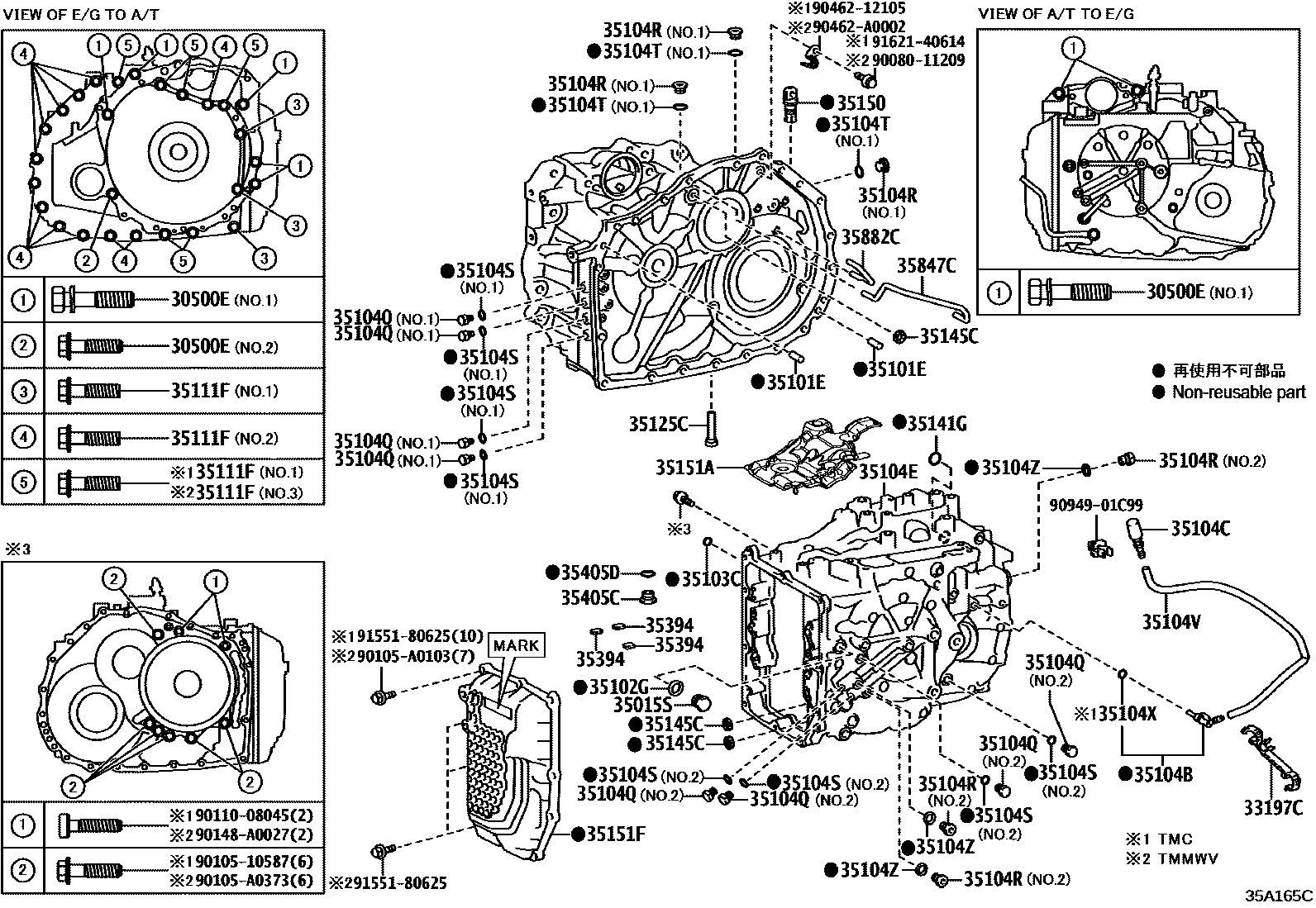

TRANSMISSION CASE & OIL PAN (ATM)

0001 1UA80E 0002 1UA80E

30500EBOLT(FOR TRANSAXLE & ENGINE SETTING)

main90080-10338iGSX50201806-202008

*10-1.25PX41-30,NO.2

main90080-11310×7iGSX50201806-202008

*12-1.25PX55-30,NO.1

main90105-10425iGSX50202008

*10-1.25PX41-28,(J),NO.2

main90119-12168×7iGSX50202008

*12-1.25PX55-30,(J),NO.1

33197CCLAMP, TRANSMISSION BREATHER

main33197-06010iGSX50201806-202008

(L)

main33197-33020iGSX50201806-202008

(J)

35015SPLUG, STRAIGHT(FOR TRANSMISSION CASE ADAPTER)

main90341-18064iGSX50202008

TYPE A:REFER 35-01

main90341-A0003iGSX50201806-202008

TMMWV:REFER 35-01

35101EPIN, STRAIGHT (FOR AUTOMATIC TRANSMISSION CASE)

main90250-10017×2iGSX50201806-202008

TMMWV:REFER 35-01

main90250-10021×2iGSX50201806-202008

TOYOTA:REFER 35-01

35102GGASKET (FOR TRANSAXLE REAR COVER )

main90430-18008iGSX50201806-202008

TOYOTA:REFER 35-01

main90430-A0003iGSX50202008

TYPE B:REFER 35-01

35103CRING, O

main90301-06021iGSX50202008

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03230iGSX50202008

T/P A:SEE 35-01,NO.2

main90930-A3009iGSX50201806-202008

NO.2,TMMWV:SEE 35-01

35104CPLUG, BREATHER, NO.2 (ATM)

main90930-03216iGSX50201806-202008

35104ECASE SUB-ASSY, AUTOMATIC TRANSAXLE

main35104-06050iGSX50202008

TYPE B:REFER 35-01

main35104-48040iGSX50202008

TYPE A:REFER 35-01

35104QPLUG, NO.1 (FOR TRANSAXLE CASE)

main90341-08001×4iGSX50201806-202008

NO.1,TMC:REFER 35-01

main90341-A0001×4iGSX50201806-202008

NO.1,TMMWV:SEE 35-01

35104RPLUG, NO.2 (FOR TRANSAXLE CASE)

main90341-14015×3iGSX50201806-202008

NO.1,TMC:REFER 35-01

main90341-A0005×3iGSX50201806-202008

NO.1,TMMWV:SEE 35-01

35104SRING, O (FOR TRANSAXLE CASE PLUG NO.1)

main90080-30105×4iGSX50201806-202008

NO.1,TMMWV:SEE 35-01

main90301-06196×4iGSX50201806-202008

TOYOTA:REFER 35-01

35104TRING, O (FOR TRANSAXLE CASE PLUG NO.2)

main90430-14008×3iGSX50202008

NO.1

35104VHOSE (FOR BREATHER PLUG)

main35121-33060iGSX50201806-202008

35104XRING, O (FOR BREATHER PLUG)

main90301-08015iGSX50201806-202008

35104ZGASKET (FOR TRANSAXLE CASE)

main90430-14008×3iGSX50202008

35111FBOLT (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING)

main90105-A0367×6iGSX50202008

*8-1.25PX40-22,T/P B:SEE 35-01,NO.3

main91551-00835×12iGSX50202008

*8-1.25PX35-22,NO.2

main91551-00840×3iGSX50202008

*8-1.25PX40-22,T/P A:SEE 35-01,NO.1; *8-1.25PX40-22,T/P B:SEE 35-01,NO.1

35125CTUBE, TRANSMISSION OIL FILLER, NO.1

main35125-06130iGSX50201806-202008

TMMWV:REFER 35-01

main35125-48090iGSX50201806-202008

TOYOTA:REFER 35-01

35141GRING, O (FOR AUTOMATIC TRANSMISSION CASE)

main90301-10018iGSX50202008

TYPE A:REFER 35-01

main90301-A0016iGSX50202008

TYPE B:REFER 35-01

35145CGASKET, TRANSAXLE CASE

main35145-07010×3iGSX50201806-202008

TMMWV:REFER 35-01

main35145-33010×3iGSX50201806-202008

TOYOTA:REFER 35-01

main35145-33020×3iGSX50202103

TYPE B:REFER 35-01,TYPE A:REFER 35-01

35150PLUG ASSY, TRANSMISSION CASE

main35150-45010iGSX50201806-202008

35151ACOVER, TRANSAXLE CASE, UPPER

main35151-45020iGSX50201806-202008

35151FCOVER, TRANSMISSION CASE, SIDE

main35151-06010iGSX50201806-202008

TMMWV:REFER 35-01

main35151-33161iGSX50201806-202008

TOYOTA:REFER 35-01

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-08010×3iGSX50201806-202008

TMMWV:REFER 35-01

main35394-48010×3iGSX50202008

TYPE A:REFER 35-01

35405CPLUG SUB-ASSY, W/HEAD STRAIGHT SCREW

main90341-18023iGSX50202008

TYPE B:REFER 35-01,TYPE A:REFER 35-01

35405DRING, O (FOR STRAIGHT SCREW PLUG)

main90430-18008iGSX50201806-202008

TOYOTA:REFER 35-01

main90430-A0003iGSX50201806-202008

TMMWV:REFER 35-01

35847CTUBE, TRANSMISSION LUBE APPLY

main35847-06010iGSX50202008

TYPE B:REFER 35-01

main35847-48030iGSX50202008

TYPE A:REFER 35-01

35882CTUBE, DIFFERENTIAL GEAR LUBE APPLY

main35882-06030iGSX50201806-202008

TMMWV:REFER 35-01

main35882-48030iGSX50201806-202008

TOYOTA:REFER 35-01

9008011209

main90080-11209

9010510587

main90105-10587

90105A0103

main90105-A0103

90105A0373

main90105-A0373

9011008045

main90110-08045

90148A0027

main90148-A0027

9046212105

main90462-12105

90462A0002

main90462-A0002

9094901C99

main90949-01C99

9155180625

main91551-80625

9162140614

main91621-40614

39 parts on this diagram · 2 diagrams in section
