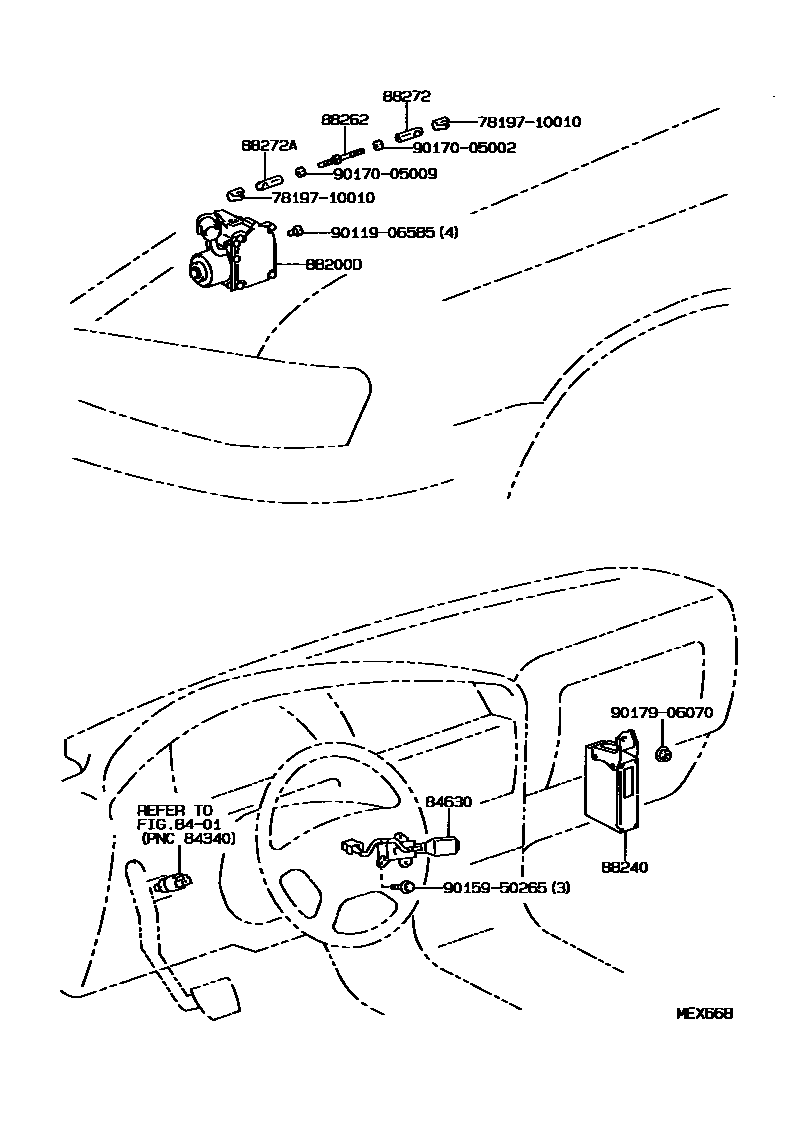

CRUISE CONTROL (AUTO DRIVE)

0001 1 0002 1

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

84630SWITCH ASSY, CRUISE CONTROL MAIN

main84630-07010iMCX10199508

88200DACTUATOR ASSY, CRUISE CONTROL

main88200-06010iMCX10199608

main88200-33010iMCX10199508-199608

88240COMPUTER ASSY, CRUISE CONTROL

main88240-07010iMCX10199608-199709

main88240-07030iMCX10199709

main88240-41010iMCX10199508-199608

88262ROD, SPEED CONTROL

main88206-33010iMCX10199508-199608

88272END, SPEED CONTROL ROD

main88272-33010iMCX10199508-199608

88272AEND, SPEED CONTROL ROD

main88272-33020iMCX10199508-199608

7819710010CLIP, ACCELERATOR JOINT BALL

main78197-10010

9011906585

main90119-06585

9015950265

main90159-50265

9017005002

main90170-05002

9017005009

main90170-05009

9017906070

main90179-06070

13 parts on this diagram · 2 diagrams in section
