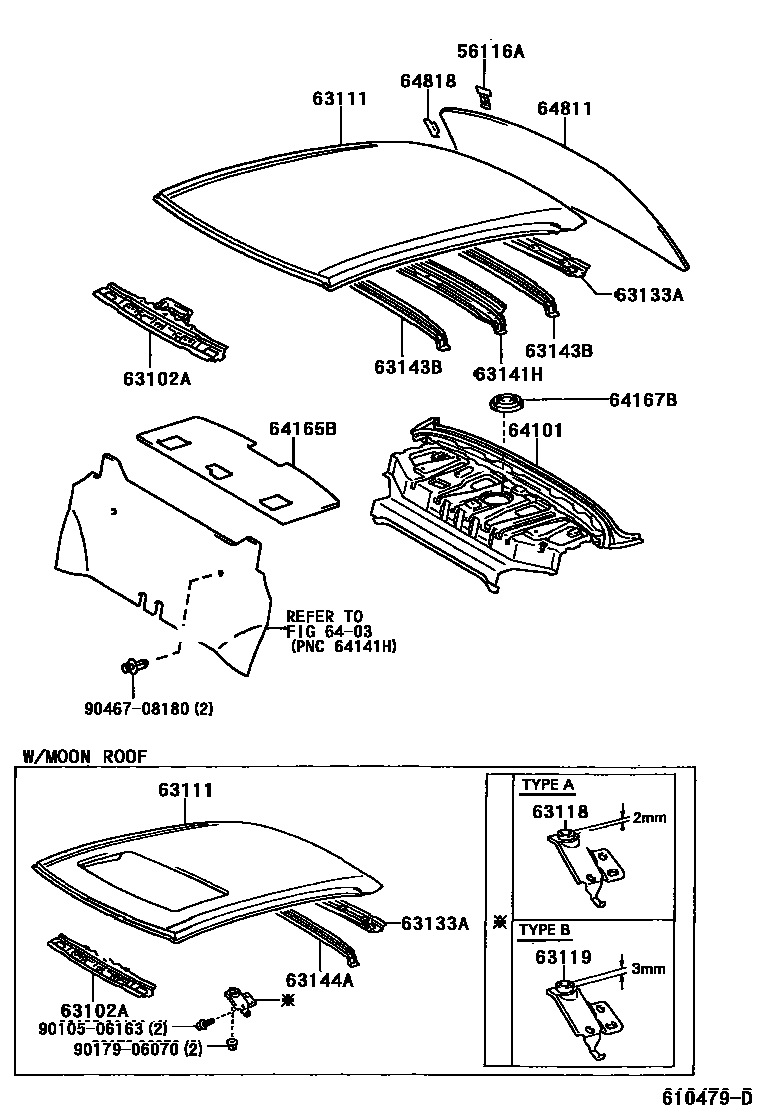

ROOF PANEL & BACK WINDOW GLASS

0001 1 0002 1 0003 1

56116ASPACER, WINDSHIELD GLASS

main56116-22080×2iMCX10199508

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-07010iMCX10..XLS199508

W(MOON ROOF)

main63102-07020iMCX10..XLS199508

63111PANEL, ROOF

main63101-07900iMCX10199508

W(MOON ROOF)

main63111-07010iMCX10199508

63118SUPPORT, ROOF PANEL, RH

main63118-07011iMCX10199508

TYPE A:REFER TO ILLUSTRATION

main63118-07021iMCX10199508

TYPE B:REFER TO ILLUSTRATION

63119SUPPORT, ROOF PANEL, LH

main63119-07011iMCX10199508

TYPE A:REFER TO ILLUSTRATION

main63119-07021iMCX10199508

TYPE B:REFER TO ILLUSTRATION

63133AFRAME, BACK WINDOW, UPPER

main63133-07010iMCX10199508

63141HREINFORCEMENT, ROOF PANEL, CENTER

main63141-07010iMCX10199508

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-07010×2iMCX10199508

63144AREINFORCEMENT, ROOF PANEL, NO.4

main63144-07010iMCX10199508

6403PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

→ Go to FIG 64-03

64101PANEL SUB-ASSY, UPPER BACK

main64101-07010iMCX10199508-199709

main64101-07050iMCX10199709

64165BCOVER, UPPER BACK PANEL HOLE, NO.1

main64165-07010iMCX10199704

64167BCOVER, UPPER BACK PANEL HOLE, NO.3

main64167-07010iMCX10199508

64811GLASS, BACK WINDOW

main64811-AC010iMCX10199508-199608

*TEM,T=3.5,GREEN

main64811-AC090iMCX10199608

*EHTT,T=3.5,GREEN

64818SPACER, BACK WINDOW GLASS

main56126-22030×2iMCX10199508

9010506163

main90105-06163

9017906070

main90179-06070

9046708180

main90467-08180
