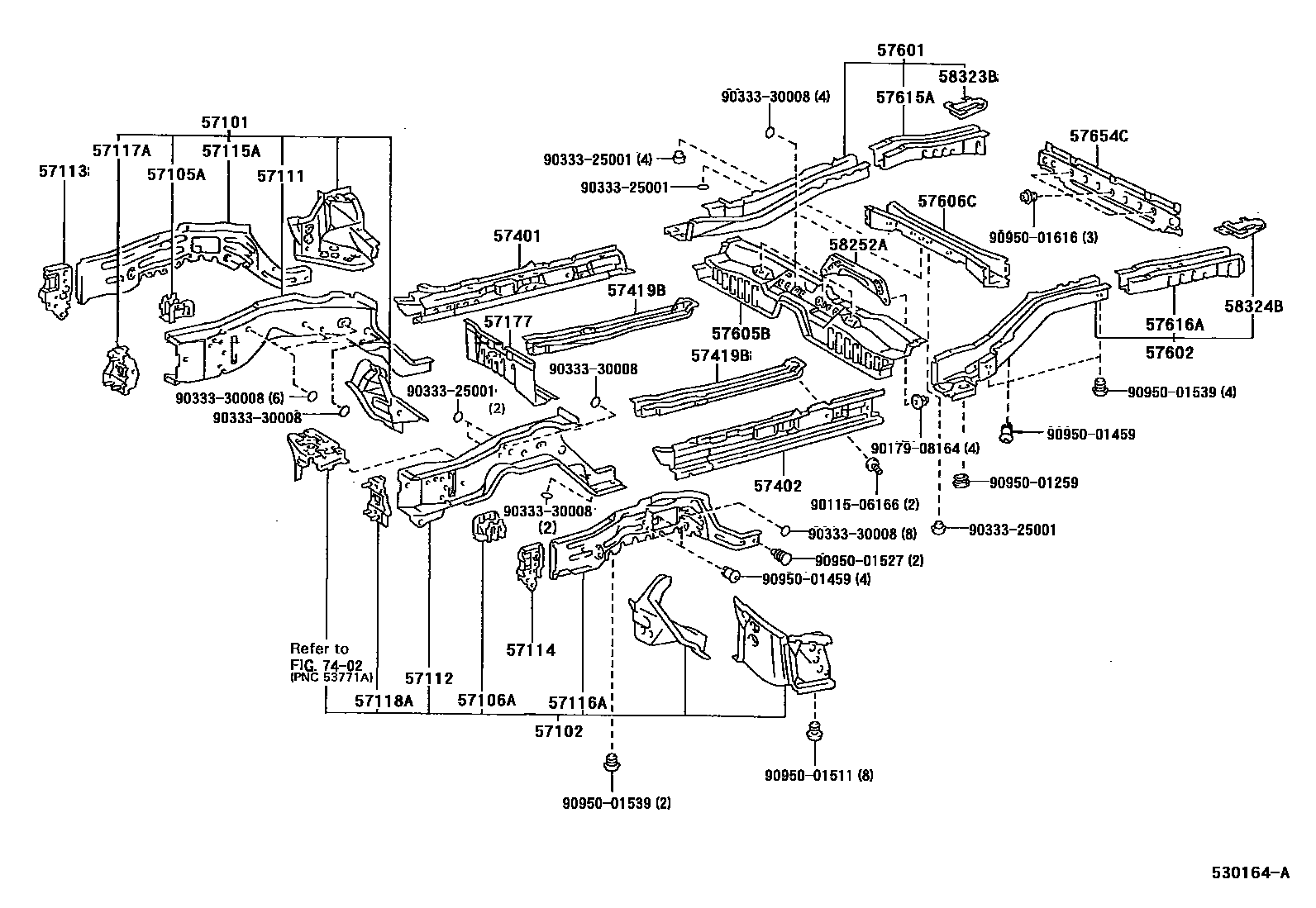

FLOOR SIDE MEMBER

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-06010i199508-199708

main57101-06011i199708-199709

main57101-06021i199709-199801

main57101-06023i199801-199802

main57101-06024i199802-199808

main57101-06025i199808-199908

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-06020i199508-199708

main57102-06021i199708-199709

main57102-06031i199709-199801

main57102-06033i199801-199802

main57102-06034i199802-199808

main57102-06035i199808-199809

main57102-06036i199809

57105APLATE SUB-ASSY, FRONT SIDE MEMBER, RH

main57105-33011i199508-199709

main57105-33020i199709

57106APLATE SUB-ASSY, FRONT SIDE MEMBER, LH

main57106-33011i199508-199709

main57106-33020i199709

57111MEMBER, FRONT SIDE, RH

main57111-06010i199508-199708

main57111-06011i199708-199801

main57111-06012i199801-199802

main57111-06013i199802

57112MEMBER, FRONT SIDE, LH

main57112-06020i199508-199708

main57112-06021i199708-199801

main57112-06022i199801-199802

main57112-06023i199802-199809

main57112-06024i199809-199901

main57112-06025i199901

57113EXTENSION, FRONT SIDE MEMBER, RH

main57113-06010i199709-199801

main57113-06011i199801-199803

main57113-06012i199803-199808

main57113-06020i199811

main57113-33010i199508-199709

main57113-33030i199808-199811

(J)

57114EXTENSION, FRONT SIDE MEMBER, LH

main57114-06010i199709-199801

main57114-06011i199801-199803

main57114-06012i199803-199808

main57114-06020i199811

main57114-33010i199508-199709

main57114-33030i199808-199811

(J)

57115APLATE, FRONT SIDE MEMBER, OUTER RH

main57115-06010i199508-199908

57116APLATE, FRONT SIDE MEMBER, OUTER LH

main57116-06010i199508-199901

main57116-33010i199901

57117AREINFORCEMENT, FRONT BUMPER MOUNTING

main57033-33010i199801-199808

main57033-33020i199808

main57117-33020i199808

(J)

main57117-41010i199508-199709

57118AREINFORCEMENT, FRONT BUMPER MOUNTING, LH

main57034-33010i199801-199808

main57034-33020i199808

main57118-33020i199808

(J)

main57118-41010i199508-199709

57177CROSSMEMBER, FRONT SIDE MEMBER TO DASH PANEL

main57177-06010i199508-199709

57401MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH

main57401-07010i199508-199709

main57401-07020i199709-199807

main57401-07021i199807

57402MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH

main57402-07010i199508-199709

main57402-07020i199709-199807

main57402-07021i199807

57419BREINFORCEMENT, FRONT FLOOR UNDER, REAR

main57419-07010i199508-199709

main57419-07020×2i199709

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-06060i199508-199608

main57601-07010i199608-199709

main57601-07030i199709

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-06061i199508-199608

main57602-07020i199608-199708

main57602-07021i199708-199709

main57602-07041i199709

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-07010i199508

57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2

main57606-06010i199508-199708

main57606-06022i199708

57615AMEMBER, REAR FLOOR SIDE, REAR RH

main57615-06900i199508-199608

main57615-06901i199608

57616AMEMBER, REAR FLOOR SIDE, REAR LH

main57616-06901i199508-199709

main57616-07900i199709

57654CMEMBER, REAR FLOOR CROSS, NO.3

main57654-06010i199508

58252ABRACE, FLOOR PANEL, REAR

main58252-06010i199508

(L)

main58252-33010i199508

(J)

58323BREINFORCE, REAR BUMPER ARM SUPPORT, RH

main58034-06020i199709

main58303-33010i199508-199709

58324BREINFORCE, REAR BUMPER ARM SUPPORT, LH

main57656-06010×2i199709

main58303-33020i199508-199709

7402BATTERY CARRIER

→ Go to FIG 74-02

9011506166

main90115-06166

9017908164

main90179-08164

9033325001

main90333-25001

9033330008

main90333-30008

9095001259

main90950-01259

9095001459

main90950-01459

9095001511

main90950-01511

9095001527

main90950-01527

9095001539

main90950-01539

9095001616

main90950-01616

37 parts on this diagram · 2 diagrams in section
