ENGINE OIL COOLER

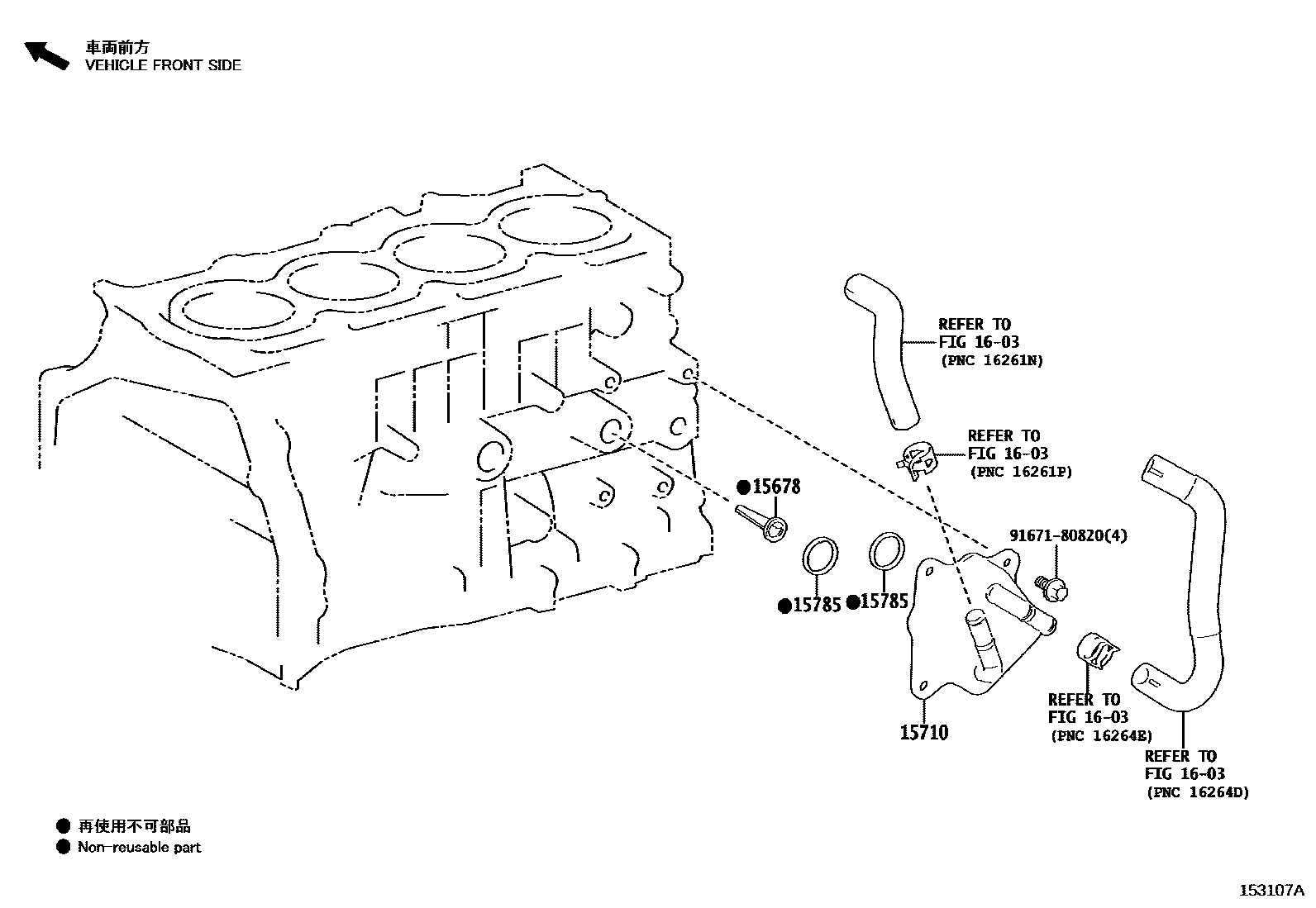

Parts diagram

15678FILTER, OIL CONTROL VALVE

main15678-25010i201903-202106

15710COOLER ASSY, OIL

main15710-25010i201903-202106

15785GASKET, OIL COOLER

main15785-25010×2i201903-202106

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

9167180820

main91671-80820

5 parts on this diagram · 1 diagram in section
