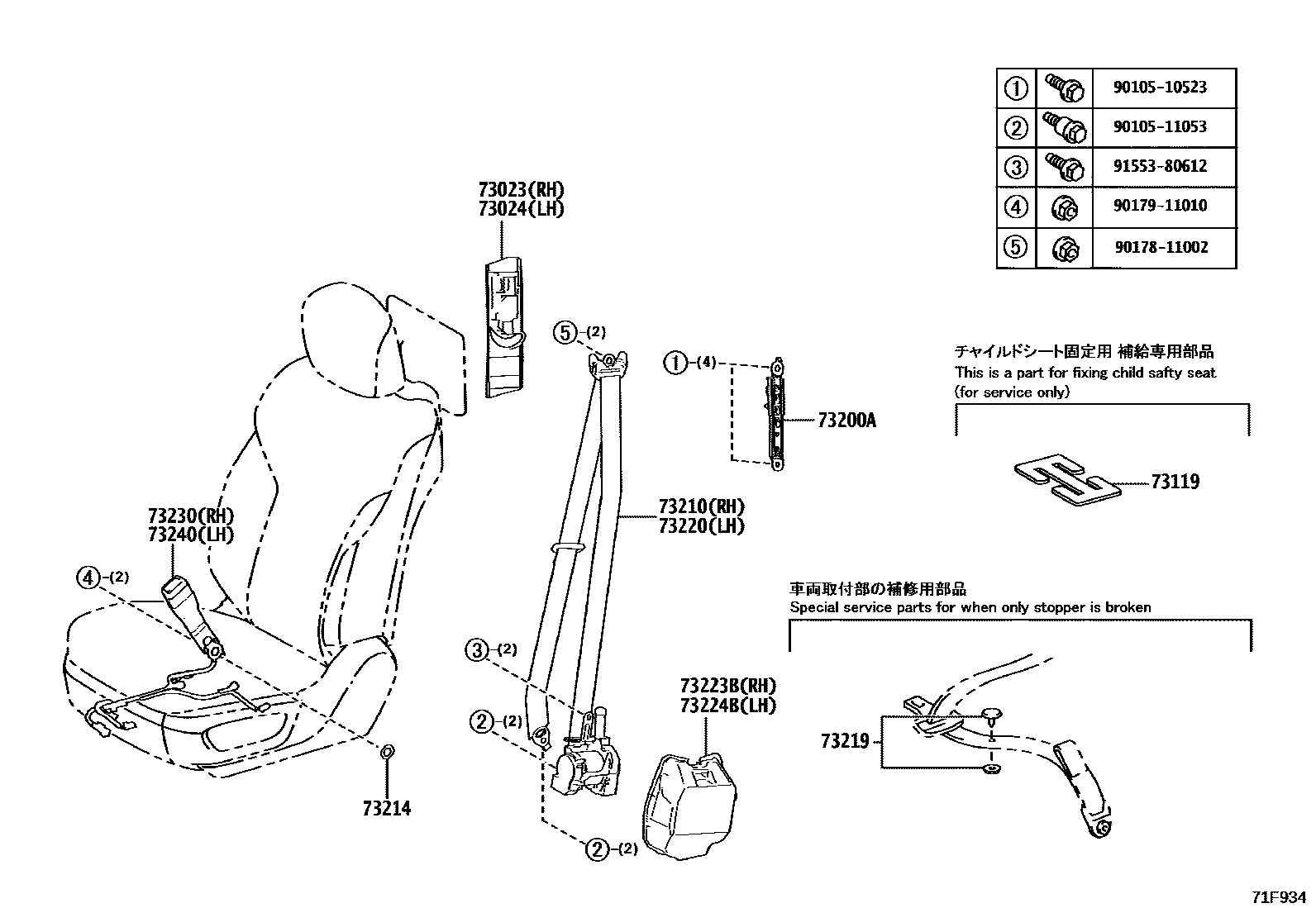

SEAT BELT & CHILD RESTRAINT SEAT

0001 1FRONT SEAT 0002 1REAR SEAT

73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH

main73023-12030-A1iGRG75202310

FROMAGE,TRIM0#

main73023-12030-C0iGRG75202310

BLACK,TRIM2#

main73023-12030-E2iGRG75202310

MD.BROWN,TRIM40

main73023-12030-E3iGRG75202310

SUNFLARE BROWN,TRIM41

73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH

main73024-12020-A1iGRG75202310

FROMAGE,TRIM0#

main73024-12020-C0iGRG75202310

BLACK,TRIM2#

main73024-12020-E2iGRG75202310

MD.BROWN,TRIM40

main73024-12020-E3iGRG75202310

SUNFLARE BROWN,TRIM41

73119PLATE, SEAT BELT WEBBING CLIP

main73119-22010iGRG75202310

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-42020iGRG75202310

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-50632-C1iGRG75202310

BLACK/BLACK,TRIM2#,4#

main73210-50632-E7iGRG75202310

GREGE/FROMAGE,TRIM0#

73214PLATE, FRONT SEAT BELT ANCHOR

main73214-75010iGRG75202310

73219STOPPER, TONGUE PLATE

main73219-33010iGRG75202310

BLACK

main73219-33020iGRG75202310

GRAY

main73219-33030iGRG75202310

BEIGE

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-50522-C1iGRG75202310

BLACK/BLACK,TRIM2#,4#

main73220-50522-E7iGRG75202310

GREGE/FROMAGE,TRIM0#

73223BCOVER, FRONT SEAT BELT RETRACTOR, RH

main73223-0E100iGRG75202310

73224BCOVER, FRONT SEAT BELT RETRACTOR, LH

main73224-0E080iGRG75202310

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-40100-A0iGRG75202310

FROMAGE,TRIM0#

main73230-40100-C0iGRG75202310

BLACK,TRIM2#,4#

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-40090-A0iGRG75202310

FROMAGE,TRIM0#

main73230-40090-C0iGRG75202310

BLACK,TRIM2#,4#

9010510523

main90105-10523

9010511053

main90105-11053

9017811002

main90178-11002

9017911010

main90179-11010

9155380612

main91553-80612

17 parts on this diagram · 2 diagrams in section
