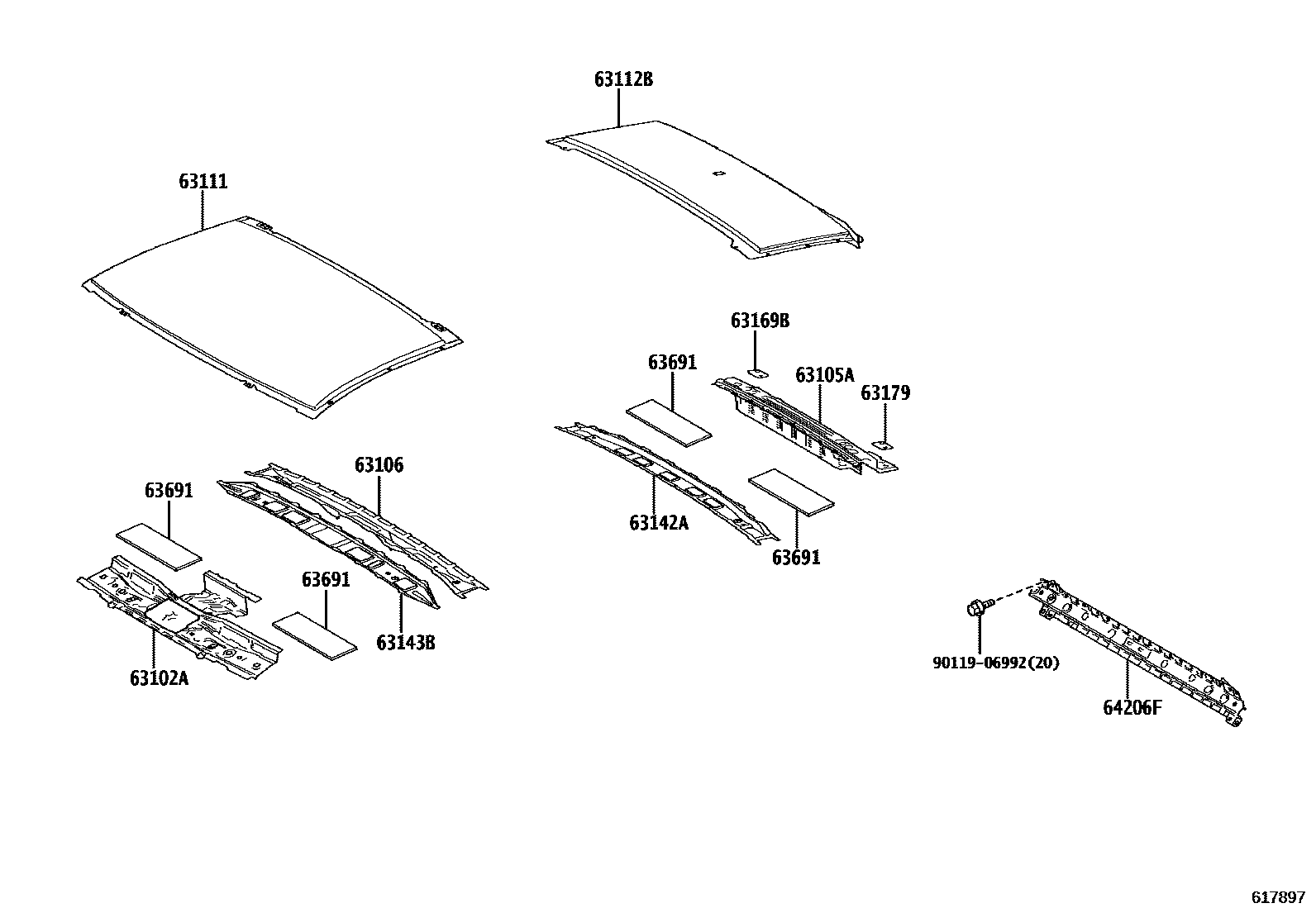

ROOF PANEL & BACK WINDOW GLASS

0001 1ROOF PANEL 0002 1PANORAMA ROOF

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-40900iGRG75202310

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-40050iGRG75202310

63106REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.4

main63106-40040iGRG75202310

63111PANEL, ROOF

main63111-40070iGRG75202310

63112BPANEL, ROOF, REAR

main63112-40010iGRG75202310

63142AREINFORCEMENT, ROOF PANEL, NO.2

main63124-40020iGRG75202310

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-40060iGRG75202310

63169BPLATE, ROOF PANEL REINFORCEMENT, RH

main63169-48010iGRG75202310

63179PLATE, ROOF PANEL REINFORCEMENT, LH

main63179-48010iGRG75202310

63691PAD, ROOF SILENCER, NO.21

main63691-40060×4iGRG75202310

64206FPANEL SUB-ASSY, ROOM PARTITION

main64206-40080iGRG75202310

9011906992

main90119-06992

12 parts on this diagram · 2 diagrams in section
