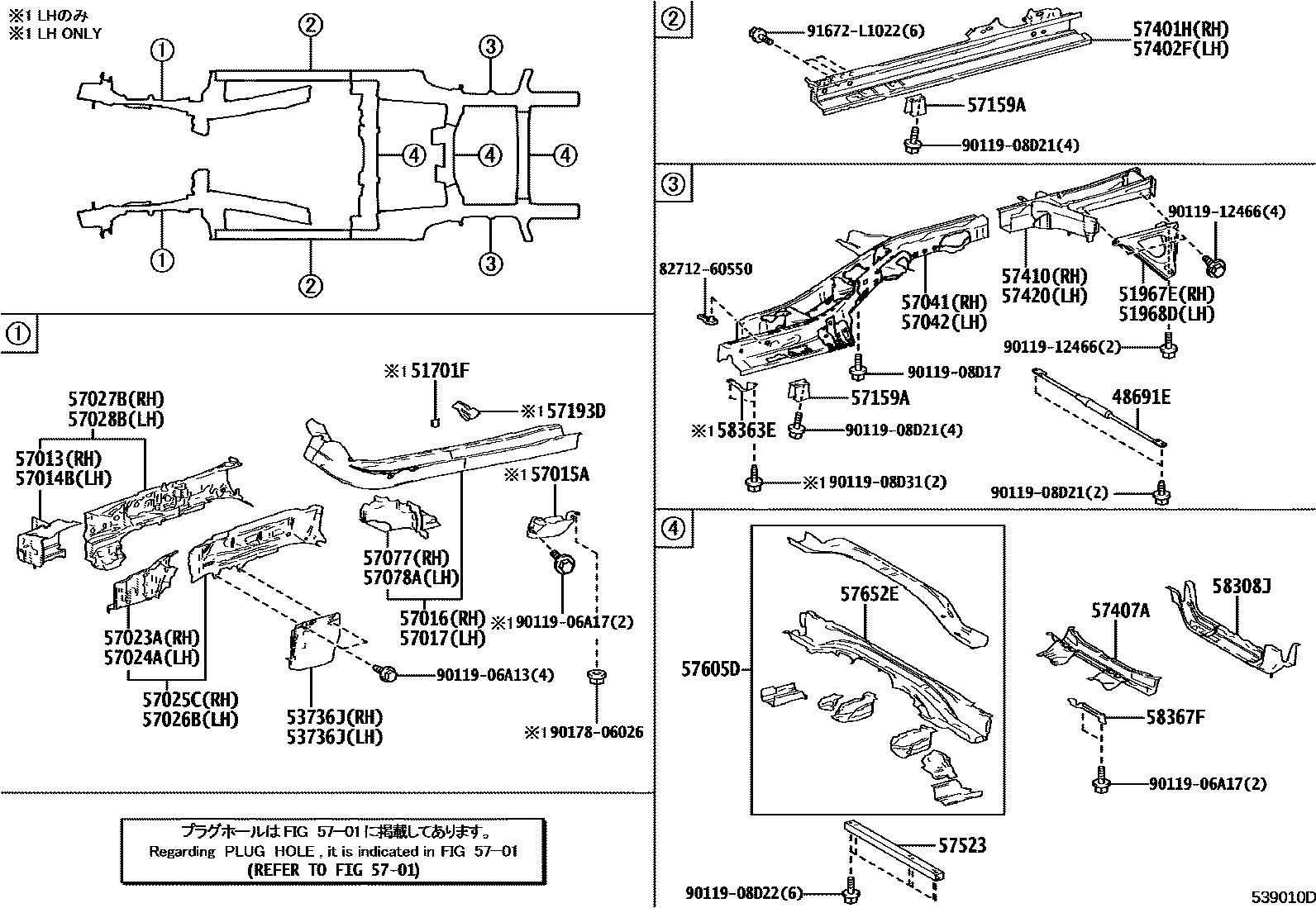

FLOOR SIDE MEMBER

48691EDAMPER, SUSPENSION TOWER

main48691-40020202310

51701FBRACKET SUB-ASSY, BODY SUPPORT, RH

main61715-48011202310

51967EHOOK, TRANSPORT, REAR RH

main51967-40010202310

51968DHOOK, TRANSPORT, REAR LH

main51968-40010202310

53736JSEAL, FENDER APRON

main53736-42050202310

main53737-42010202310

5701HOLE PLUG

→ Go to FIG 57-01

57013BRACKET SUB-ASSY, FRONT SIDE MEMBER, RH

main57013-0E040202310

57014BBRACKET SUB-ASSY, FRONT SIDE MEMBER, LH

main57014-0E040202310

57015AGUSSET SUB-ASSY, FLOOR MEMBER

main57015-40010202310

57016REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH

main57016-0E090202310

57017REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH

main57017-0E100202310

57023AMEMBER SUB-ASSY, REAR SIDE, RH

main57023-0E040202310

57024AMEMBER SUB-ASSY, REAR SIDE, LH

main57024-0E040202310

57025CMEMBER SUB-ASSY, FRONT SIDE, OUTER RH

main57025-0E060202310

57026BMEMBER SUB-ASSY, FRONT SIDE, OUTER LH

main57026-0E060202310

57027BMEMBER SUB-ASSY, FRONT SIDE, INNER RH

main57027-0E110202310

57028BMEMBER SUB-ASSY, FRONT SIDE, INNER LH

main57028-0E130202310

57041MEMBER SUB-ASSY, CENTER FLOOR SIDE, RH

main57041-0W010202310

57042MEMBER SUB-ASSY, CENTER FLOOR SIDE, LH

main57042-0W010202310

57077BOX SUB-ASSY, TORQUE, FRONT RH

main57077-0E110202310

57078ABOX SUB-ASSY, TORQUE, FRONT LH

main57078-0E110202310

57159AREINFORCEMENT, ENGINE UNDER COVER MOUNTING

main57159-40030202310

57193DPLATE, FRONT SIDE MEMBER, NO.8 LH

main57194-40010202310

57401HMEMBER SUB-ASSY, FLOOR SIDE, INNER RH

main57401-40040202310

57402FMEMBER SUB-ASSY, FLOOR SIDE, INNER LH

main57402-40040202310

57407AMEMBER SUB-ASSY, CENTER FLOOR CROSS

main57407-0E040202310

57410MEMBER ASSY, FLOOR SIDE, RH

main57410-40010202310

57420MEMBER ASSY, FLOOR SIDE, LH

main57420-40010202310

57523BRACE, CENTER FLOOR CROSSMEMBER

main57523-40020202310

57605DMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-40040202310

57652EMEMBER, REAR FLOOR CROSS, NO.1

main57652-40030202310

58308JBRACKET SUB-ASSY, REAR FLOOR CROSSMEMBER

main58308-0E070202310

58363EBALANCER, REAR FLOOR, NO.1

main58363-40010202310

58367FBRACKET, FUEL TUBE, NO.1

main58367-40010202310

8271260550CLAMP, WIRING HARNESS

main82712-60550

9011906A13

main90119-06A13

9011906A17

main90119-06A17

9011908D17

main90119-08D17

9011908D21

main90119-08D21

9011908D22

main90119-08D22

9011908D31

main90119-08D31

9011912466

main90119-12466

9017806026

main90178-06026

91672L1022

main91672-L1022

44 parts on this diagram · 1 diagram in section
