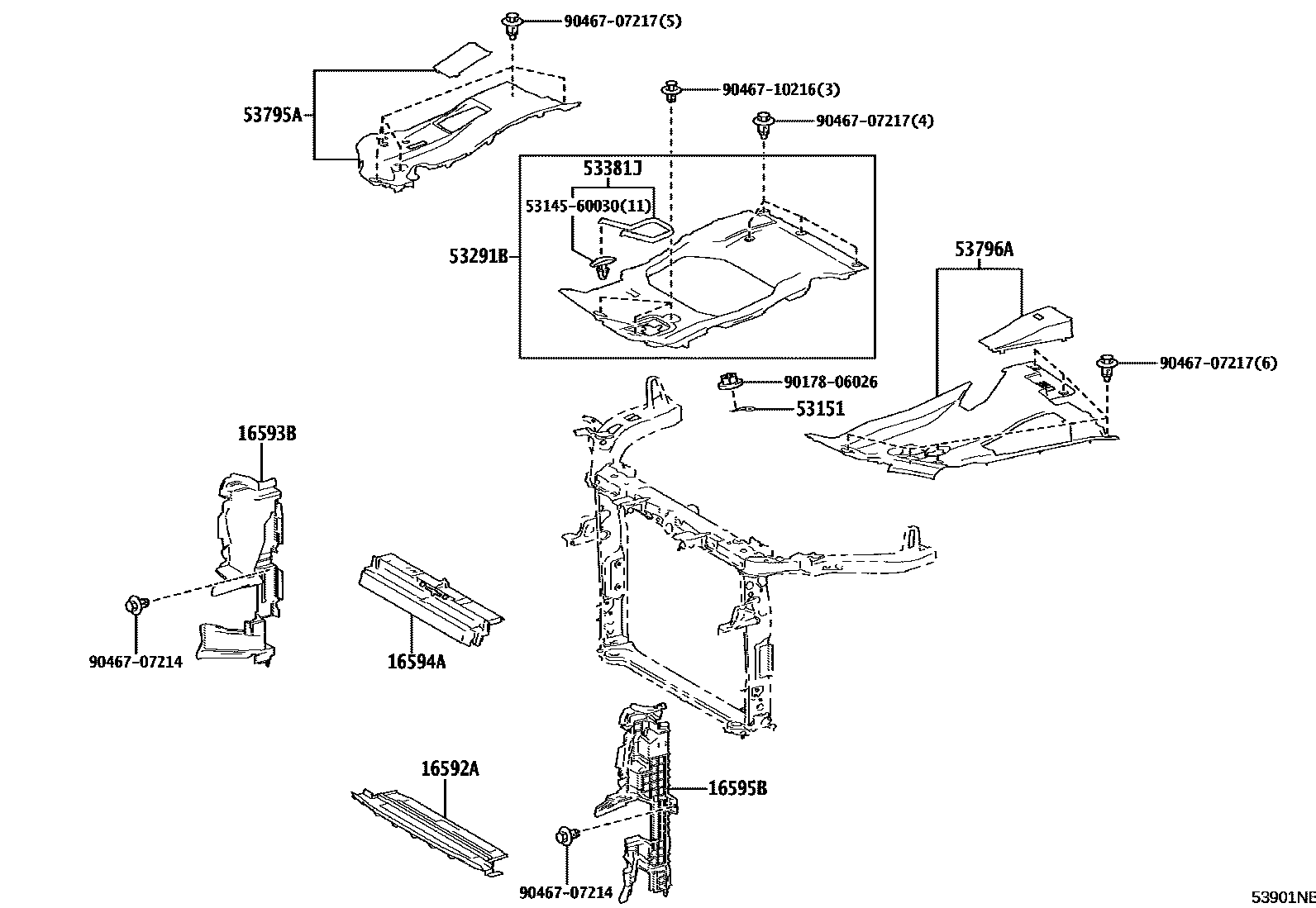

FRONT FENDER APRON & DASH PANEL

0001 1AIRGUIDE & RADIATOR SUPPORT C0002 1RADIATOR SUPPORT & FENDER APR0003 1DASH PANEL

16592AGUIDE, RADIATOR AIR, NO.3

main16592-F0220i2GRFXS..GRG75202310

16593BGUIDE, RADIATOR AIR, NO.1 RH

main16593-31100i2GRFXS..GRG75202310

16594AGUIDE, RADIATOR AIR, NO.2

main16594-31040i2GRFXS..GRG75202310

16595BGUIDE, RADIATOR AIR, NO.1 LH

main16595-31090i2GRFXS..GRG75202310

53151BRACKET, RADIATOR COVER SUPPORT

main58489-40010iGRG75202310

53291BPLATE, RADIATOR COVER

main53291-40030iGRG75202310

53381JSEAL, HOOD TO RADIATOR SUPPORT

main53381-40070iGRG75202310

53795ACOVER, ENGINE ROOM, SIDE

main53795-40070iGRG75202310

53796ACOVER, ENGINE ROOM SIDE, LH

main53796-40020iGRG75202310

5314560030BRACKET,RADIATOR GRILLE MOUNTING, RH

main53145-60030

9017806026

main90178-06026

9046707214

main90467-07214

9046707217

main90467-07217

9046710216

main90467-10216

14 parts on this diagram · 3 diagrams in section
