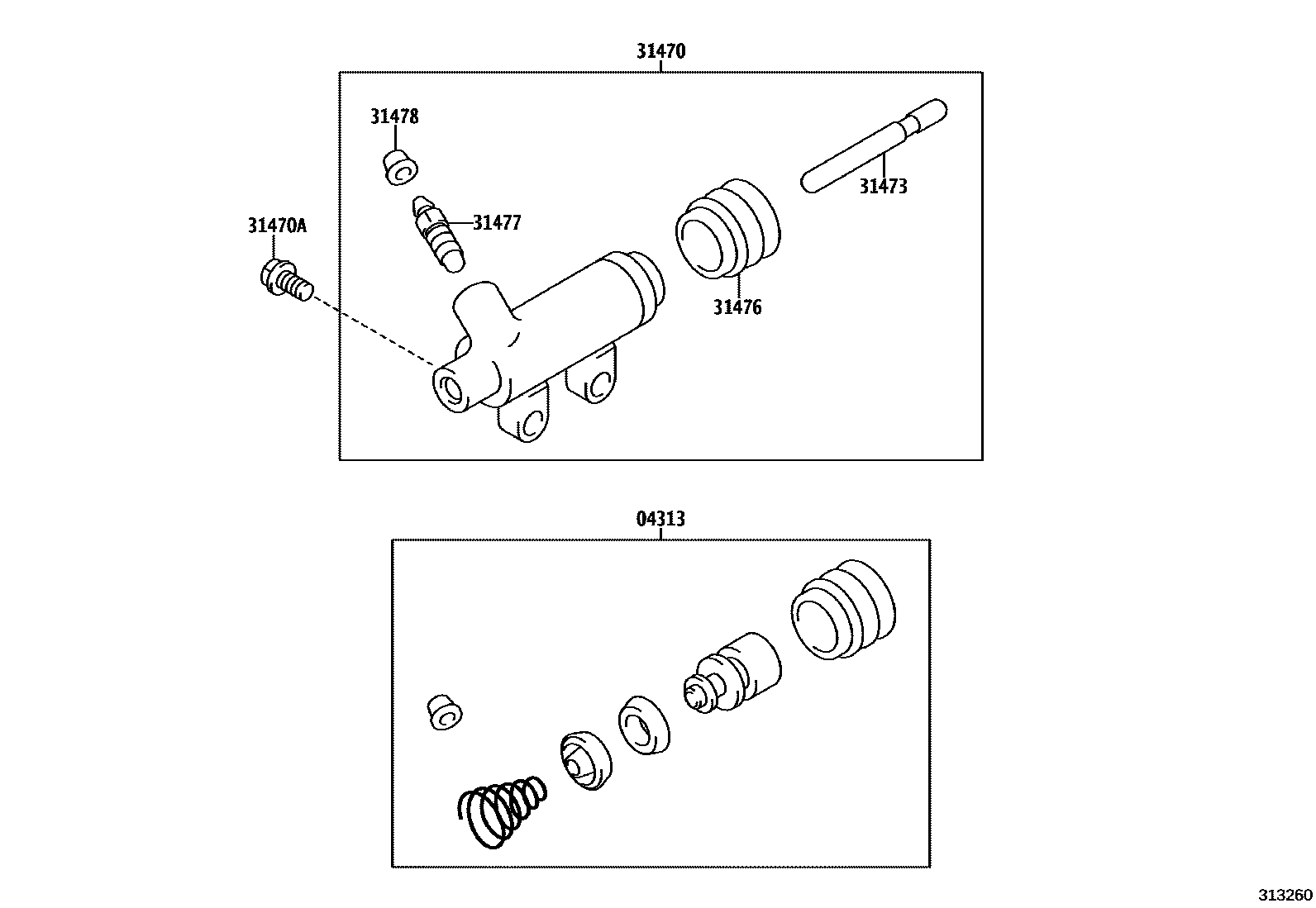

CLUTCH RELEASE CYLINDER

04313CYLINDER KIT, CLUTCH RELEASE

main04313-17010iLXS12200108-200607

main04313-22030iYXS10..4H199908-200108

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-22112iLXS12200108-200607

main31470-22150iYXS10..4H199908-200108

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-60825×2iLXS1#,YXS10..MTM199601-200108

*8-1.25PX25-25

main91611-B0825×2iLXS12,YXS10..MTM200108-200607

*8-1.25PX25-25

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-22030iLXS1#199601-200005

main31473-35050iYXS10..4H199908-200005

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iLXS1#,YXS10..MTM199601-200108

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-12010iLXS1#,YXS10..MTM199601-200108

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iLXS1#,YXS10..MTM199601-200108

7 parts on this diagram · 1 diagram in section
