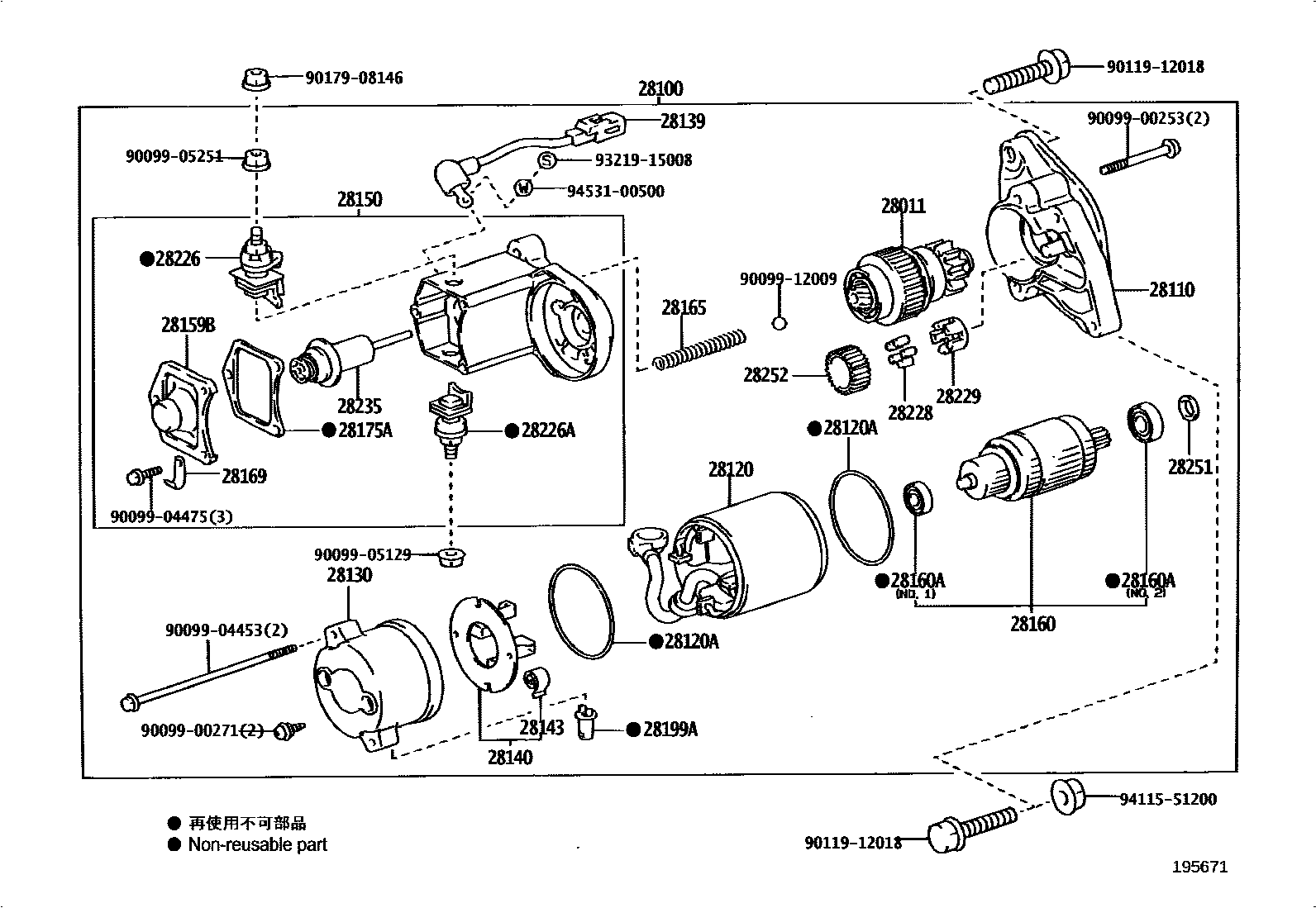

Parts diagram

28011CLUTCH SUB-ASSY, STARTER

main28011-26042i199908-200108

main28011-54380i200108-200607

main28011-76070i200808

28100STARTER ASSY

main28100-54340i199903-200108

12V 2.0KW

main28100-54380i199601-199903

12V 2.0KW

main28100-72150i199908-200108

12V 1.0KW

main28100-73020i200108-200312

12V 1.6KW

main28100-73021i200709-200808

12V 1.6KW

main28100-75090i200808-200906

12V 1.4KW

main28100-75091i200907

12V 1.4KW

28110HOUSING ASSY, STARTER DRIVE

main28110-54380i199601-200108

main28110-72060i199908-200108

main28110-73020i200108-200312

main28110-75090i200808-201007

28120YOKE ASSY, STARTER

main28120-26071i199908-200108

main28120-28040i200108-200709

main28120-54380i200108-200607

main28120-66040i200808

28120ARING, O(FOR STARTER YOKE)

main90099-14064×2i199601-200108

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-54380i199601-200108

main28130-64170i200808-201007

main28130-72010i199908-200108

main28130-73020i200709-200808

28139WIRE, LEAD, NO.1(FOR STARTER)

main28139-54380i199601-200108

28140HOLDER ASSY, STARTER BRUSH

main28140-26070i199908-200108

main28140-54380i199601-200108

main28140-76070i200808

28143SPRING, STARTER BRUSH

main28143-54380×4i199601-200108

main90099-17112×4i199908-200108

28150SWITCH ASSY, MAGNET STARTER

main28150-54340i199903-200108

main28150-54380i199601-199903

main28150-72150i199908-200108

main28150-75130i200808

28159BCOVER, MAGNET SWITCH

main28159-10040i199908-200108

main28159-54380i199601-200108

main28159-55050i200808-201007

28160ARMATURE ASSY, STARTER

main28160-21060i200108-200709

main28160-26071i199908-200108

main28160-54380i199601-200108

main28160-74070i200808

28160ABEARING, STARTER ARMATURE

main28253-45020i199908-200108

NO.1

main90099-10113i199908-200108

NO.2

main90099-10196i200808-201007

FRONT

main90099-10197i200808-201007

REAR

main90099-10208i199601-200108

NO.1

28165SPRING, STARTER MAGNET SWITCH RETURN

main28165-26040i199908-200108

main28165-76070i199601-200108

28169CLAMP, STARTER MOTOR LEAD WIRE

main28169-10040i199908-200108

main28169-54380i199601-200108

main28169-55050i200808-201007

28175AGASKET, MAGNET SWITCH COVER

main28175-10040i199908-200108

main28175-54380i199601-200108

main28175-55050i200808-201007

28199COVER, STARTER

main28199-74110i200808-201007

28199APROTECTOR, DUST STARTER

main28199-74110i199601-200108

28226STARTER KIT, BATTERY TERMINAL

main28226-22050i200808-201007

main28226-54340i199903-200108

main28226-54380i199601-199903

main28226-70040i199908-200108

28226ASTARTER KIT, MOTOR TERMINAL

main28226-72010i199601-200108

main28226-74070i200808-201007

28228ROLLER, STARTER IDLE GEAR CLUTCH

main28228-26040×5i199601-200108

28229RETAINER, STARTER IDLE GEAR

main28229-26040i199908-200108

main28229-74070i199601-200108

28235PLUNGER, MAGNET SWITCH

main28235-35080i199908-200108

main28235-54380i199601-200108

main28235-55050i200808-201007

28251PINION, STARTER DRIVE

main28254-54380i199601-200108

28252GEAR, STARTER IDLE

main28254-45020i199908-200108

main28254-64130i199601-200108

9009900253

main90099-00253

9009900271

main90099-00271

9009904453

main90099-04453

9009904475

main90099-04475

9009905129

main90099-05129

9009905251

main90099-05251

9009912009

main90099-12009

9011912018

main90119-12018

9017908146

main90179-08146

9321915008

main93219-15008

9411551200

main94115-51200

9453100500

main94531-00500
