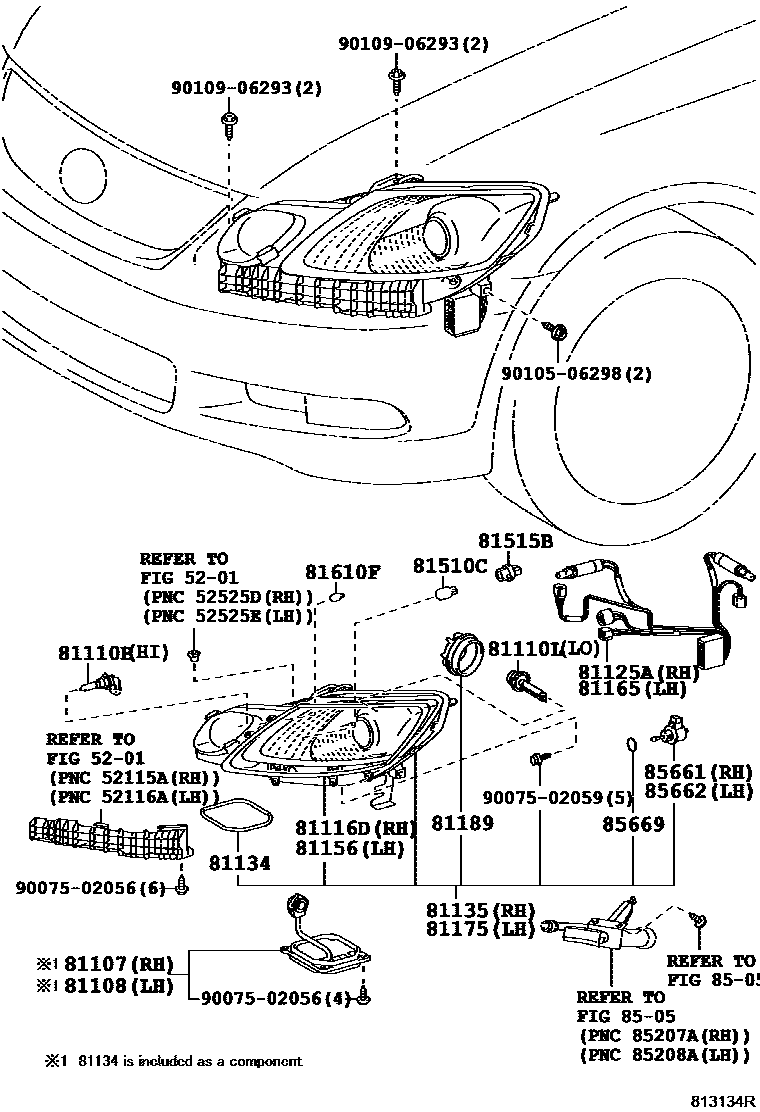

HEADLAMP

0001 1 0002 1

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

81107COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH

main81107-30D30iGRS19#,URS190200911-201005

main81107-30D31iGRS19#,URS190201005

main81107-47150iGRS190,UZS190..RHD200611-200709

main81108-30B90iGRS190,UZS190..LHD200501-200612

81108COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH

main81107-30D30iGRS19#,URS190200911-201005

main81107-30D31iGRS19#,URS190201005

main81107-47150iGRS190,UZS190..LHD200612-200709

main81108-30B90iGRS190,UZS190..LHD200501-200612

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13066×2iGRS190,UZS190200501-200709

12V 65W,HALOGEN

81110LBULB, DISCHARGE HEADLAMP

main90981-20020×2iGRS190,URS190,UZS190200709-200711

45V 35W

main90981-20021×2iGRS190,URS190,UZS190200712-200902

45V 35W

main90981-20024×2iGRS19#,URS190200902-201112

42V 35W

81116DRIM, HEAD LAMP, RH

main81116-30B80iGRS19#,URS190,UZS190200709

main81116-30E20iGRS19#,URS190..LHD..EUR200806

RUSSIA SPEC

81125ACORD, HEADLAMP, RH

main81125-30B80iGRS190,UZS190200501-200709

81134GASKET, HEADLAMP

main90075-68007iGRS190,UZS190200501-200709

81135UNIT ASSY, HEADLAMP, RH

main81145-30B80iGRS190,URS190..RHD200709

main81145-30B90iGRS190,UZS190..LHD200501-200611

main81145-30B91iGRS190,UZS190..LHD200612-200709

main81145-30E20iGRS19#,URS190..LHD..EUR200806

RUSSIA SPEC

main81145-30J60iGRS190..GCC201007-201108

ART WORKS

main81145-30J70iGRS190..GEN201007-201108

BRUNEI SPEC&ART WORKS; HONG KONG SPEC&ART WORKS

81156RIM, HEADLAMP, LH

main81156-30B90iGRS19#,URS190,UZS190200709

main81156-30E30iGRS19#,URS190..LHD..EUR200806

RUSSIA SPEC

81165CORD, HEADLAMP, LH

main81165-30B91iGRS190,UZS190200501-200709

81175UNIT ASSY, HEADLAMP, LH

main81185-30B90iGRS190,UZS190..RHD200501-200507

main81185-30B91iGRS190,UZS190..RHD200507-200709

main81185-30C00iGRS190,UZS190..LHD200501-200507

main81185-30C01iGRS190,UZS190..LHD200507-200611

main81185-30C02iGRS190,UZS190..LHD200612-200709

main81185-30E30iGRS19#,URS190..LHD..EUR200806

RUSSIA SPEC

main81185-30J60iGRS190..GCC201007-201108

ART WORKS

main81185-30J70iGRS190..GEN201007-201108

BRUNEI SPEC&ART WORKS; HONG KONG SPEC&ART WORKS

81189COVER, HEADLAMP

main81135-30D31×2iGRS19#,URS190201005-201112

81510CBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-15011×2iGRS190,UZS190200501-200709

12V 21W,AMBER

81515BSOCKET, FRONT TURN SIGNAL LAMP

main90075-60026×2iGRS190,UZS190200501-200709

81610FBULB(FOR CLEARANCE LAMP)

main99132-12050×2iGRS190,UZS190200501-200709

12V 5W

8505HEADLAMP CLEANER

→ Go to FIG 85-05

85661MOTOR, HEADLAMP LEVELING, RH

main85661-48030iGRS190,UZS190..LHD200501-200612

85662MOTOR, HEADLAMP LEVELING, LH

main85661-48030iGRS190,UZS190..LHD200501-200507

85669PACKING, HEADLAMP LEVELING MOTOR BASE

main90075-99120×2iGRS190,UZS190200501-200709

9007502056

main90075-02056

9007502059

main90075-02059

9010506298

main90105-06298

9010906293

main90109-06293

24 parts on this diagram · 2 diagrams in section
