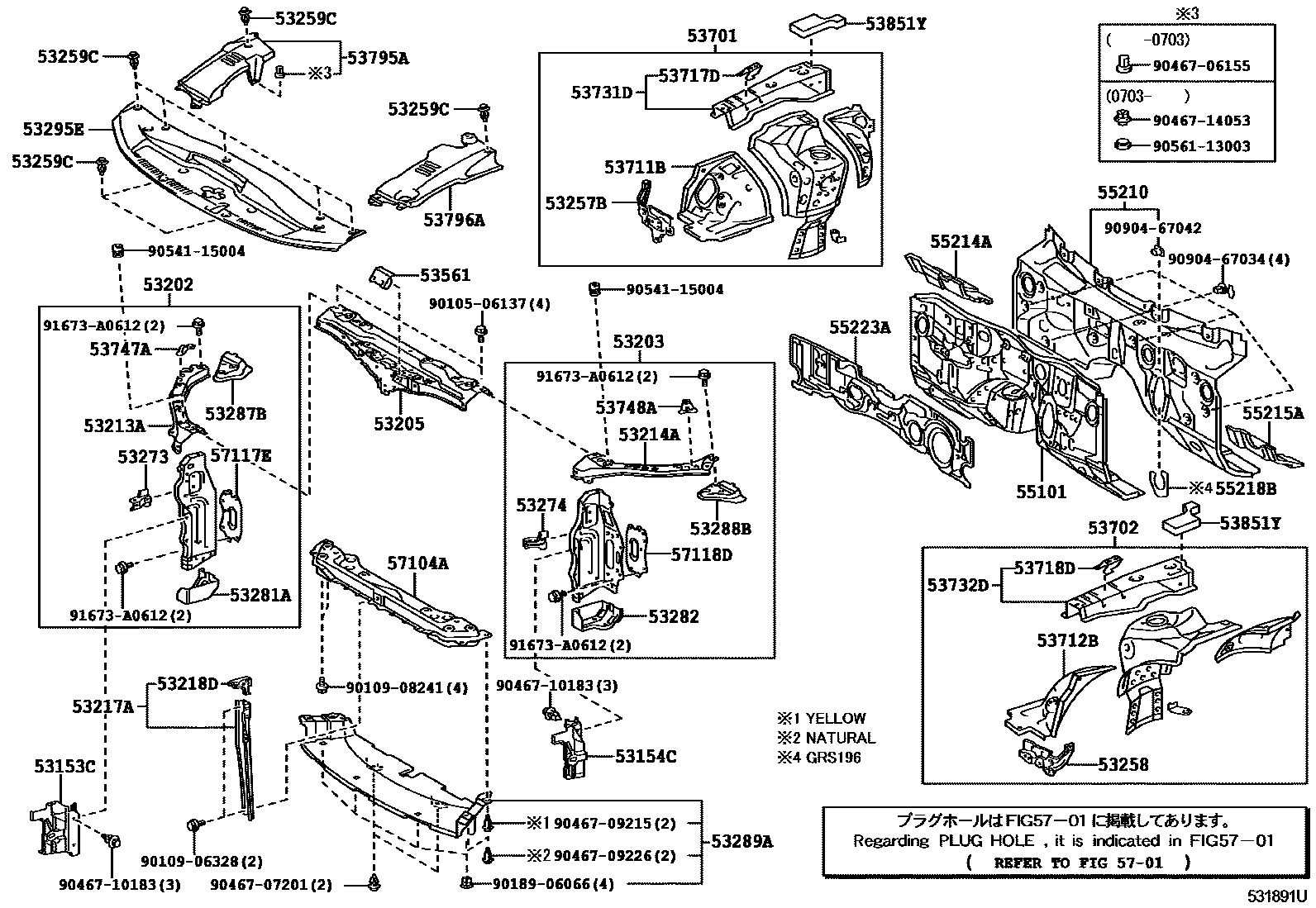

FRONT FENDER APRON & DASH PANEL

0001 1 0002 1

53153CGUIDE, RADIATOR GRILLE SIDE AIR, RH

main53153-30160iGRS190,UZS190200501-200709

53154CGUIDE, RADIATOR GRILLE SIDE AIR, LH

main53154-30150iGRS19#,URS190,UZS190200709

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-30903iGRS190,UZS190200501-200709

main53202-30905iGRS19#,URS190,UZS190200709-201106

main53202-30906iGRS19#,URS190201106-201112

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-30903iGRS190,UZS190200501-200709

main53203-30905iGRS19#,URS190,UZS190200709-201106

main53203-30906iGRS19#,URS190201106-201112

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-30080iGRS190,UZS190200501-200709

main53205-30102iGRS19#,URS190,UZS190200709

53213ASUPPORT, RADIATOR, UPPER RH

main53213-30090iGRS190,UZS190200501-200709

main53213-30111iGRS19#,URS190,UZS190200709-201112

53214ASUPPORT, RADIATOR, UPPER LH

main53214-30080iGRS190,UZS190200501-200709

main53214-30111iGRS19#,URS190,UZS190200709-201112

53217ABRACE, HOOD LOCK SUPPORT

main53217-30901iGRS190,UZS190200501-200709

main53217-30902iGRS19#,URS190,UZS190200709

53218DEXTENSION, HOOD LOCK BRACE

main53218-30110iGRS190,UZS190200501-200709

main53218-30130iGRS19#,URS190,UZS190200709

53257BBRACKET, RADIATOR SUPPORT TO FRONT FENDER

main53257-30080iGRS190,UZS190200501-200709

53258BRACKET, FRONT END PANEL MOUNTING, LH

main53258-30060iGRS190,UZS190200501-200709

53259CCLIP, RADIATOR SUPPORT TO FRAME SEAL

main53259-48010×12iGRS190,UZS190200501-200608

main90467-07211×12iGRS190,UZS190200608-200709

53273BRACKET, FRONT BUMPER ARM MOUNTING, RH

main53273-30060iGRS190,UZS190200501-200709

53274BRACKET, FRONT BUMPER ARM MOUNTING, LH

main53274-30040iGRS190,UZS190200501-200709

53281AREINFORCEMENT, FRONT BODY MOUNTING, RH

main53281-30050iGRS190,UZS190200501-200709

53282REINFORCEMENT, FRONT BODY MOUNTING, LH

main53282-30030iGRS190,UZS190200501-200709

53287BEXTENSION, RADIATOR SUPPORT, RH

main53287-30080iGRS190,UZS190200501-200709

53288BEXTENSION, RADIATOR SUPPORT, LH

main53288-30070iGRS190,UZS190200501-200709

53289ACOVER, RADIATOR SUPPORT OPENING

main53289-30070iGRS190,UZS190200501-200505

main53289-30071iGRS190,UZS190200506-200507

main53289-30072iGRS190,UZS190200507-200509

main53289-30073iGRS190,UZS190200510-200709

main53289-30140iGRS190,URS190200709-200907

main53289-30141iGRS19#,URS190200908-201112

53295ESEAL, COOL AIR INTAKE DUCT

main53295-30090iGRS190,UZS190200501-200709

main53295-30121iGRS19#,URS190,UZS190200709

53561GUIDE, HOOD AUXILIARY CATCH HOOK

main53561-30010iGRS190,UZS190200501-200709

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-30A60iGRS190,UZS190200501-200709

main53701-30A70iGRS196200907

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-30800iGRS190,UZS190200501-200709

main53702-30810iGRS196200907

53711BAPRON, FRONT FENDER, FRONT RH

main53711-3A030iGRS190,UZS190200501-200709

53712BAPRON, FRONT FENDER, FRONT LH

main53712-30640iGRS190,UZS190200501-200709

53717DGUSSET, FENDER APRON, RH

main53717-30060iGRS190,UZS190200501-200709

53718DGUSSET, FENDER APRON, LH

main53718-30050iGRS190,UZS190200501-200709

53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH

main53705-30060iGRS190,UZS190200501-200709

53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH

main53706-30060iGRS190,UZS190200501-200709

53747AEXTENSION, APRON FENDER SIDE, RH

main53747-30050iGRS190,UZS190200501-200709

53748AEXTENSION, APRON FENDER SIDE, LH

main53747-30050iGRS190,UZS190200501-200709

53795ACOVER, ENGINE ROOM, SIDE

main53795-30070iGRS190,UZS190..LHD200501-200509

main53795-30071iGRS190,UZS190..LHD200510-200702

main53795-30080iGRS190,UZS190..RHD200501-200601

main53795-30081iGRS190,UZS190..RHD200602-200703

main53795-30130iGRS190,UZS190..LHD200703-200709

main53795-30131iGRS19#,URS190..LHD200909

main53795-30140iGRS190,UZS190..RHD200704-200709

main53795-30141iGRS190,URS190..RHD200909

53796ACOVER, ENGINE ROOM SIDE, LH

main53796-30040iGRS190,UZS190..LHD200501-200509

main53796-30041iGRS190,UZS190..LHD200510-200702

main53796-30050iGRS190,UZS190..RHD200501-200601

main53796-30051iGRS190,UZS190..RHD200602-200702

main53796-30120iGRS19#,URS190,UZS190..LHD200709-200908

main53796-30121iGRS19#,URS190..LHD200909

main53796-30130iGRS190,UZS190..RHD200703-200709

main53796-30140iGRS190,URS190..RHD200709-200908

main53796-30141iGRS190,URS190..RHD200909

53851YPAD, FRONT WHEEL OPENING EXTENSION, NO.1

main53855-30010×2iGRS190,UZS190200501-200709

main53891-30030iGRS19#,URS190201102

RH

main53892-30010iGRS19#,URS190201102

LH

55101PANEL SUB-ASSY, DASH

main55101-30A01supersedes 55101-30A60iGRS190,UZS190..RHD..EUR; GRS190..GEN200501-200709

AUSTRALIA SPEC; NEW ZEALAND SPEC

main55101-30A30iGRS190,UZS190..GCC200501-200506

main55101-30A31iGRS190,UZS190..GCC200507-200709

main55101-30A32iGRS190..GCC201103-201112

main55101-30A40iGRS190,UZS190..LHD..EUR200501-200506

main55101-30A41iGRS190,UZS190..LHD..EUR200507-200709

main55101-30A42iURS190..LHD;GRS190..LHD..EUR201103-201112

main55101-30A51iGRS196200907-201103

main55101-30A52iGRS196201103-201112

main55101-30A60iGRS190,URS190..RHD..EUR200709-201112

55210INSULATOR ASSY, DASH PANEL

main55210-30390iGRS190,UZS190..LHD200501-200605

main55210-30391iGRS190,UZS190..LHD200606-200709

main55210-30392iGRS19#,URS190..LHD200909

main55210-30410iGRS190,UZS190..RHD200501-200605

main55210-30411iGRS190,UZS190..RHD200606-200709

main55210-30412iGRS190,URS190..RHD200909

55214APAD, DASH PANEL INSULATOR, NO.2

main55214-30070iGRS19#,URS190,UZS190..LHD200709

main55214-30090iGRS190,URS190..RHD200709

55215APAD, DASH PANEL INSULATOR, NO.3

main55215-30200iGRS190,URS190..RHD200709

main55215-30220iGRS190,URS190,UZS190..LHD200709

main55215-30230iGRS196200907

55218BSEAL, DASH PANEL INSULATOR

main55218-30020iGRS196200907

55223AINSULATOR, DASH PANEL, OUTER

main55223-30200iGRS190,UZS190..RHD200501-200709

main55223-30210iGRS190,UZS190..LHD200501-200709

main55223-30220iGRS190,URS190..RHD200709-201002

main55223-30230iGRS19#,URS190,UZS190..LHD200709-201101

main55223-30231iGRS19#,URS190..LHD201102

main55223-30240iGRS190,URS190..RHD201003

5701HOLE PLUG

→ Go to FIG 57-01

57104AMEMBER SUB-ASSY, FRONT CROSS

main57104-30080iGRS190,UZS190200501-200709

57117ERETAINER, FRONT BUMPER ARM, RH

main57117-30050iGRS190,UZS190200501-200709

57118DRETAINER, FRONT BUMPER ARM, LH

main57118-30050iGRS19#,URS190,UZS190200709-201112

9010506137

main90105-06137

9010906328

main90109-06328

9010908241

main90109-08241

9018906066

main90189-06066

9046706155

main90467-06155

9046707201

main90467-07201

9046709215

main90467-09215

9046709226

main90467-09226

9046710183

main90467-10183

9046714053

main90467-14053

9054115004

main90541-15004

9056113003

main90561-13003

9090467034

main90904-67034

9090467042

main90904-67042

91673A0612

main91673-A0612

59 parts on this diagram · 2 diagrams in section
