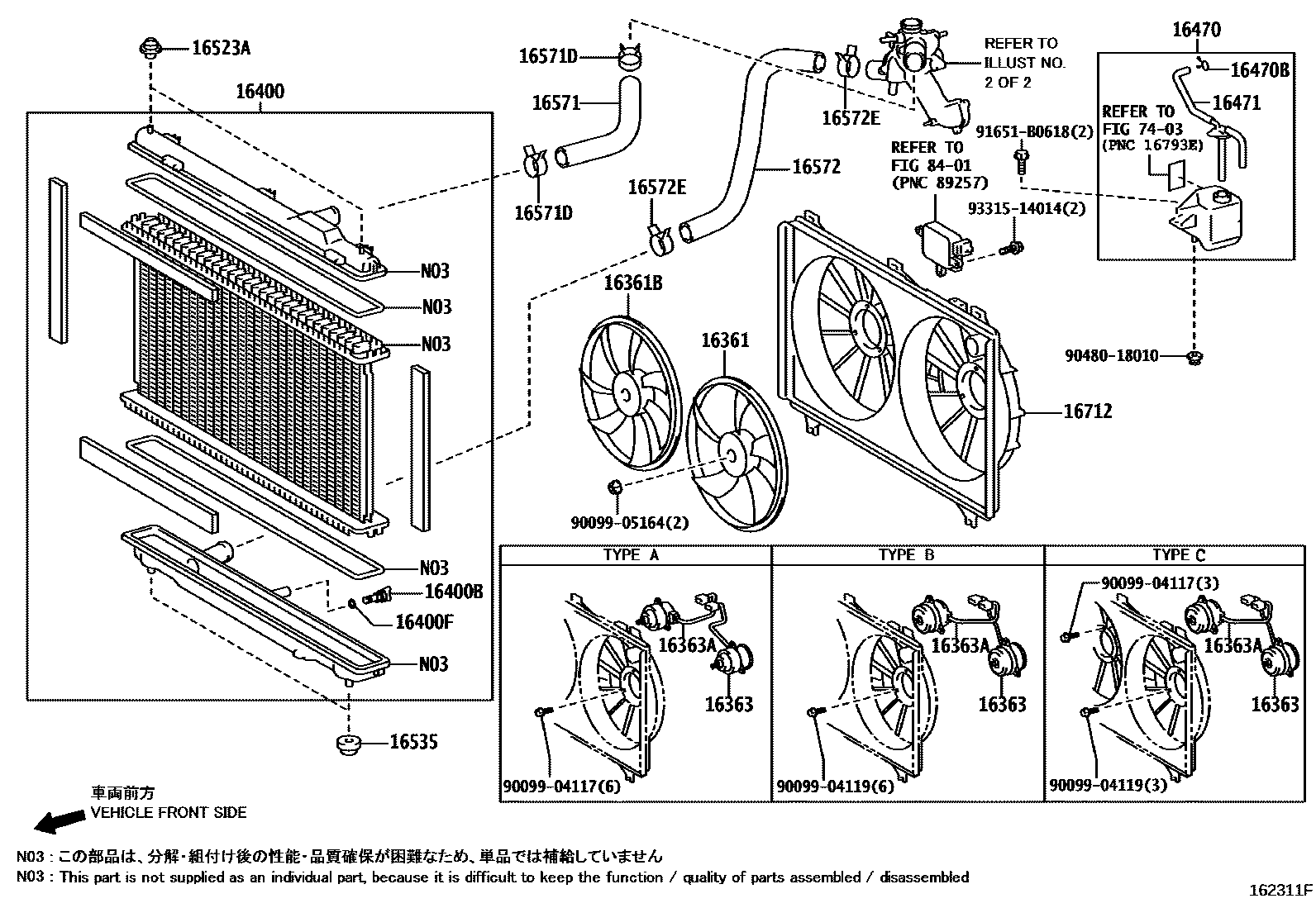

RADIATOR & WATER OUTLET
16361FAN
SOUTH AFRICA SPEC&TOWING PACKAGE-WITH&FAN & COUPLING-RADIATOR FAN SHROUD MARK=8
RUSSIA SPEC&TOWING PACKAGE-WITH&FAN & COUPLING-RADIATOR FAN SHROUD MARK=8
AUSTRALIA SPEC&TOWING PACKAGE-WITH&FAN & COUPLING-RADIATOR FAN SHROUD MARK=8
TOWING PACKAGE-WITH&FAN & COUPLING-RADIATOR FAN SHROUD MARK=7
NEW ZEALAND SPEC&TOWING PACKAGE-WITH&FAN & COUPLING-RADIATOR FAN SHROUD MARK=8
16361BFAN, NO.2
AUSTRALIA SPEC&TOWING PACKAGE-WITH&FAN & COUPLING-RADIATOR FAN SHROUD MARK=8
NEW ZEALAND SPEC
AUSTRALIA SPEC
NEW ZEALAND SPEC&TOWING PACKAGE-WITH&FAN & COUPLING-RADIATOR FAN SHROUD MARK=8
SOUTH AFRICA SPEC&TOWING PACKAGE-WITH&FAN & COUPLING-RADIATOR FAN SHROUD MARK=8
RUSSIA SPEC&TOWING PACKAGE-WITH&FAN & COUPLING-RADIATOR FAN SHROUD MARK=8
16363MOTOR, COOLING FAN
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
NEW ZEALAND SPEC&TOWING PACKAGE-WITH&FAN & COUPLING-RADIATOR FAN SHROUD MARK=8,TYPE B:REFER ILLUST.
SOUTH AFRICA SPEC&TOWING PACKAGE-WITH&FAN & COUPLING-RADIATOR FAN SHROUD MARK=8,TYPE B:REFER ILLUST.
RUSSIA SPEC&TOWING PACKAGE-WITH&FAN & COUPLING-RADIATOR FAN SHROUD MARK=8,TYPE B:REFER ILLUST.
AUSTRALIA SPEC&TOWING PACKAGE-WITH&FAN & COUPLING-RADIATOR FAN SHROUD MARK=8,TYPEB:REFER ILLUST.
TOWING PACKAGE-WITH&FAN & COUPLING-RADIATOR FAN SHROUD MARK=7,TYPE C:REFER ILLUST.
TYPE C:REFER ILLUST.
16363AMOTOR, COOLING FAN, NO.2
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
NEW ZEALAND SPEC
AUSTRALIA SPEC
NEW ZEALAND SPEC&TOWING PACKAGE-WITH&FAN & COUPLING-RADIATOR FAN SHROUD MARK=8,TYPE B:REFER ILLUST.
SOUTH AFRICA SPEC&TOWING PACKAGE-WITH&FAN & COUPLING-RADIATOR FAN SHROUD MARK=8,TYPE B:REFER ILLUST.
RUSSIA SPEC&TOWING PACKAGE-WITH&FAN & COUPLING-RADIATOR FAN SHROUD MARK=8,TYPE B:REFER ILLUST.
AUSTRALIA SPEC&TOWING PACKAGE-WITH&FAN & COUPLING-RADIATOR FAN SHROUD MARK=8,TYPEB:REFER ILLUST.
TYPE C:REFER ILLUST.
16400RADIATOR ASSY
SINGAPORE SPEC&RADIATOR-400*709*27(V6)
TOWING PACKAGE-WITH&RADIATOR-400*709*27(V6)
NEW ZEALAND SPEC&TOWING PACKAGE-WITH&RADIATOR-400*709*27(V6)
SOUTH AFRICA SPEC&TOWING PACKAGE-WITH&RADIATOR-400*709*27(V6)
AUSTRALIA SPEC&TOWING PACKAGE-WITH&RADIATOR-400*709*27(V6)
AUSTRALIA SPEC
NEW ZEALAND SPEC
16400BPLUG, RADIATOR DRAIN COCK
NO.1
TOWING PACKAGE-WITH
NO.2
16400FPACKING(FOR RADIATOR DRAIN COCK)
NO.2
NO.1
16470TANK ASSY, RADIATOR RESERVE
16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
16471CAP SUB-ASSY, RESERVE TANK
16523ACUSHION, RADIATOR SUPPORT
16535SUPPORT, RADIATOR, LOWER
16571HOSE, RADIATOR, INLET
16571DCLIP, RADIATOR HOSE, NO.1
16572HOSE, RADIATOR, OUTLET
16572ECLIP, RADIATOR HOSE, NO.2
16712SHROUD, FAN, NO.2
NEW ZEALAND SPEC
AUSTRALIA SPEC
NEW ZEALAND SPEC&TOWING PACKAGE-WITH&FAN & COUPLING-RADIATOR FAN SHROUD MARK=8
SOUTH AFRICA SPEC&TOWING PACKAGE-WITH&FAN & COUPLING-RADIATOR FAN SHROUD MARK=8
RUSSIA SPEC&TOWING PACKAGE-WITH&FAN & COUPLING-RADIATOR FAN SHROUD MARK=8
AUSTRALIA SPEC&TOWING PACKAGE-WITH&FAN & COUPLING-RADIATOR FAN SHROUD MARK=8
7403CAUTION PLATE (EXTERIOR & INTERIOR)
8401SWITCH & RELAY & COMPUTER
9009904117
main90099-04117
9009904119
main90099-04119
9009905164
main90099-05164
9048018010
main90480-18010
91651B0618
main91651-B0618
9331514014
main93315-14014
25 parts on this diagram · 9 diagrams in section
