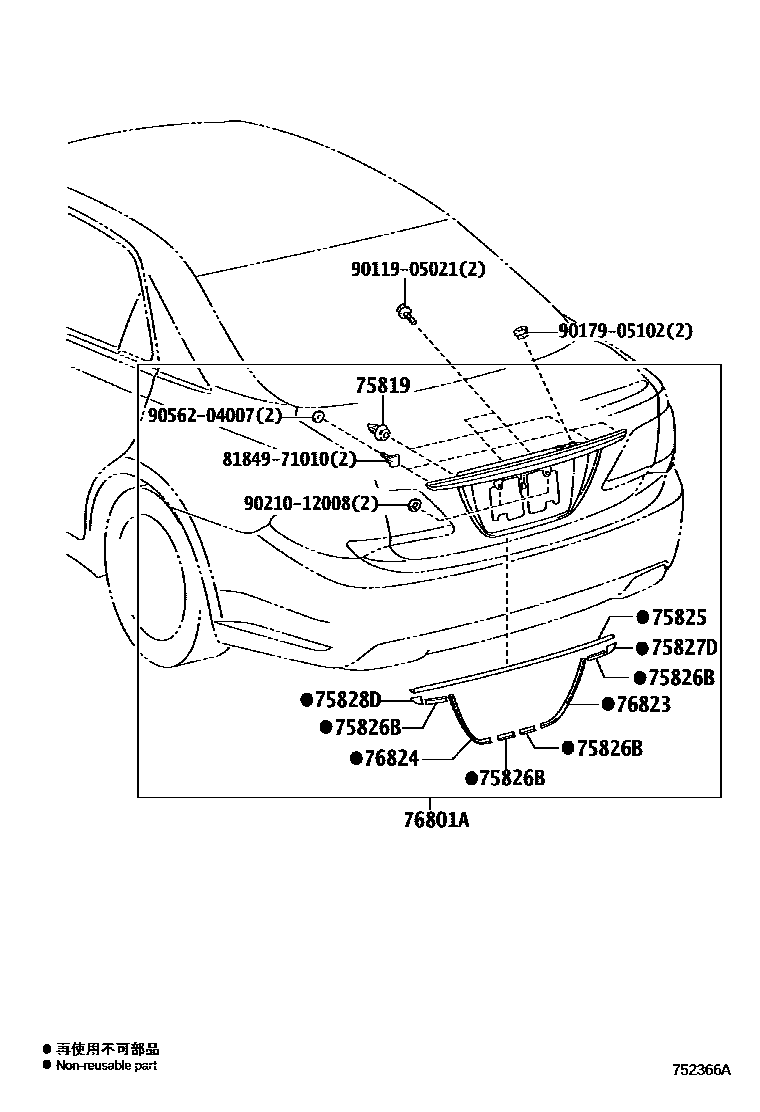

REAR MOULDING

75819CLIP, LUGGAGE COMPARTMENT DOOR MOULDING

main90467-10162×8iGRS202201009-201212

75825PAD, LUGGAGE COMPARTMENT DOOR MOULDING

main75825-30110iGRS202201009-201212

75826BPAD, LUGGAGE COMPARTMENT DOOR MOULDING, NO.2

main75826-30130×4iGRS202201009-201212

75827DPAD, LUGGAGE COMPARTMENT DOOR MOULDING, RH

main75827-30100iGRS202201009-201212

75828DPAD, LUGGAGE COMPARTMENT DOOR MOULDING, LH

main75828-30090iGRS202201009-201212

76801AGARNISH SUB-ASSY, LUGGAGE COMPARTMENT DOOR, OUTSIDE

main76801-30210-A1iGRS202201009-201212

WHITE PEARL CS.,062

main76801-30210-B0iGRS202201009-201212

SILVER ME.,1F7

main76801-30210-B1iGRS202201009-201212

PREMIUM SILVER PEARL,1F3

main76801-30210-C0iGRS202201009-201212

BLACK,202

main76801-30210-D0iGRS202201009-201212

BLACKISH RED MC.,3R0

main76801-30210-F0iGRS202201009-201212

SILKY GOLD M.M.,5A4

main76801-30210-J0iGRS202201009-201212

DK.BLUE MC.,3R0 ,8S6

76823PROTECTOR, BACK DOOR GARNISH MOULDING, RH

main76823-30010iGRS202201009-201212

76824PROTECTOR, BACK DOOR GARNISH MOULDING, LH

main76824-30010iGRS202201009-201212

8184971010

main81849-71010

9011905021

main90119-05021

9017905102

main90179-05102

9021012008

main90210-12008

9056204007

main90562-04007

13 parts on this diagram · 1 diagram in section
